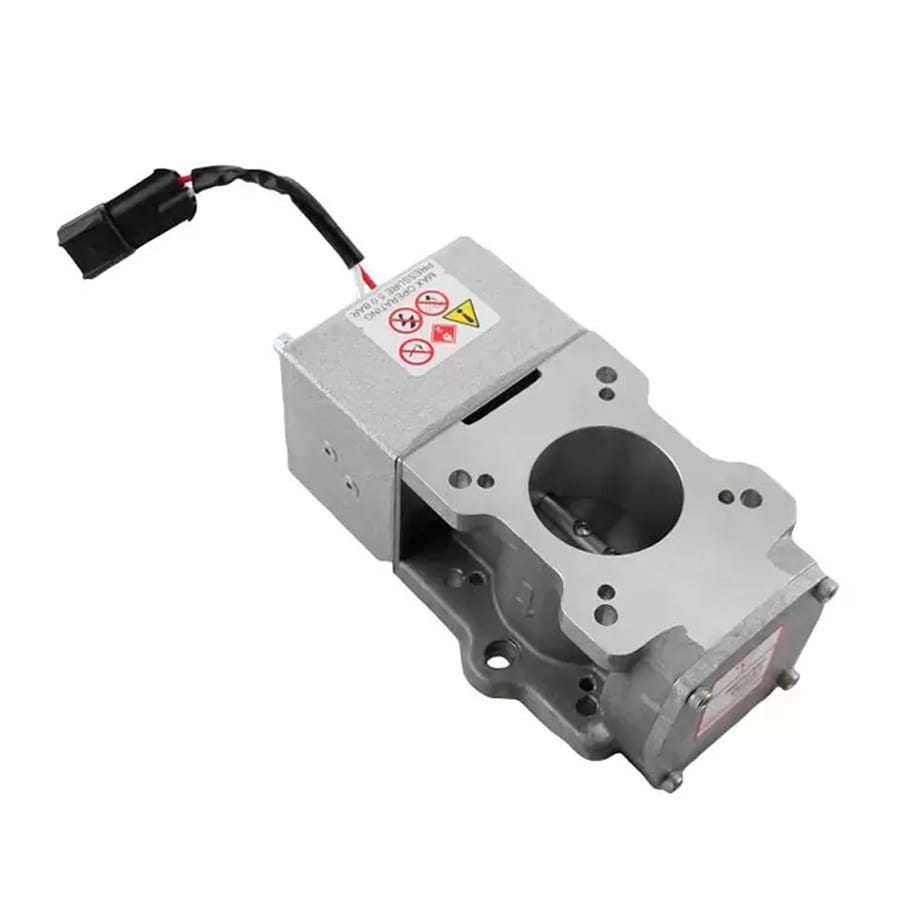

GAC Integrated Actuator ATB552T2N-24 55 mm | Throttle Body | 100% Original GAC!

GAC

    • ATB552T2N-24 V DC / 65 mm / 200 ºF [95 ºC] Ambient
    • Cost-effective, maintenance-free, compact design / Rapid response to transient load condition.
    • Mounts in any position; no mechanical linkage, no mounting brackets. / Flexible design for engine, manifold, and fuel mixer considerations
    • Idle and max adjustment screws / Options for corrosive environmental conditions / Optional high-temp versions available for turbo-charged engines.
Call for Quote for international purchases!

$1,097.49

The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control.

The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.

SKU: ATB552T2N-24 Category: Tags: , , , , ,
