ALN050 | Actuator

GAC

  • Low Cost, Compact Design
  • Fast Response
  • Precise Repeatability
  • Provide a quick response time and can be used for many different applications
  • Completely self-contained
  • Integral return spring returns output shaft to zero fuel position if battery power is lost
  • Operate in any position, are not gravity sensitive

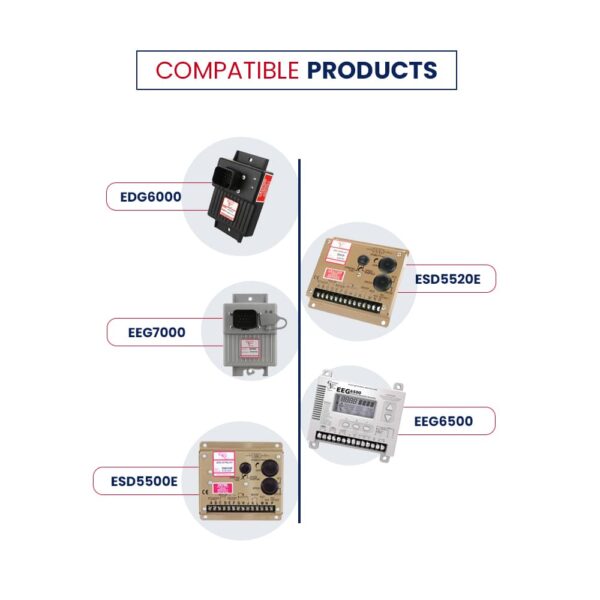

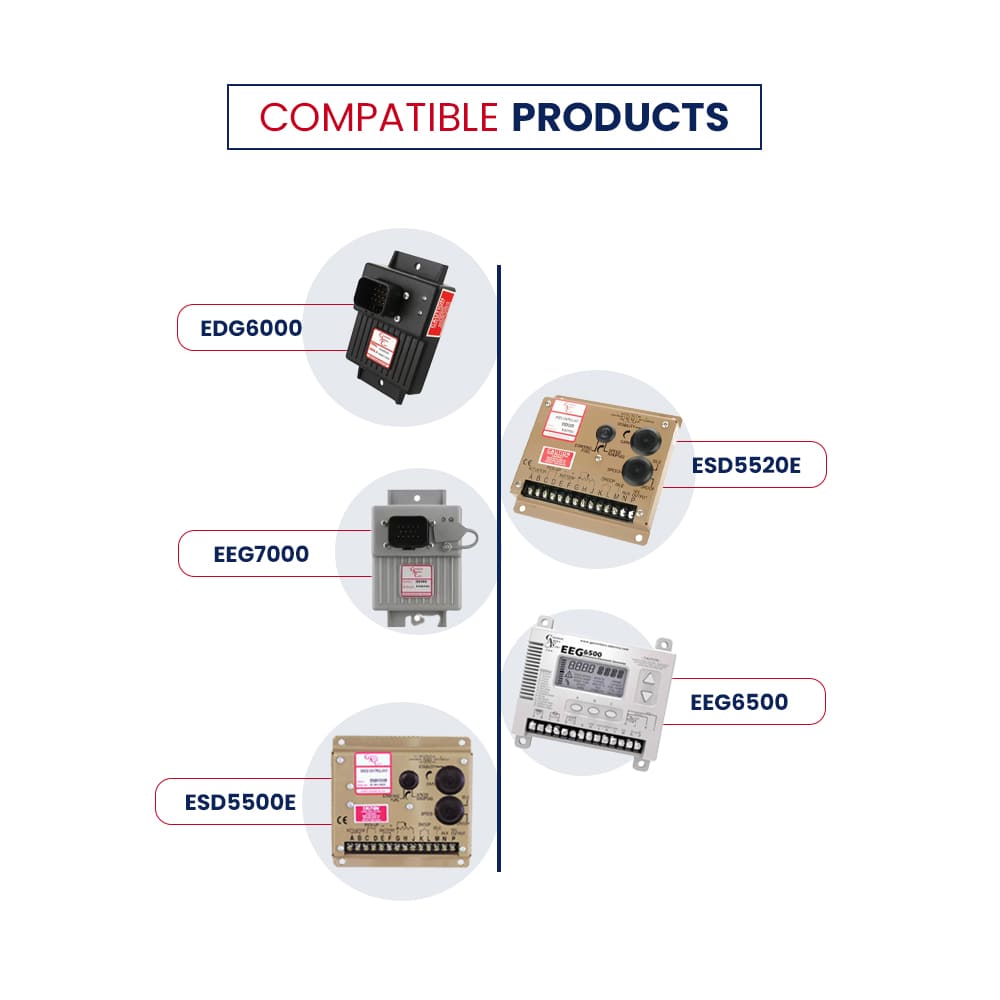

  • Compatible with GAC’s standard speed control units
  • Maintenance Free
  • Requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit

$417.69

Clear

Linear Actuator 12V DC | 24V DC • 13.0 lbf [6.0 kgf] • 0.50 lbf·ft [0.68 J] Work • Male Push-On Terminals

  • 22 mm stroke, < 35 ms response
  • Designed with high-quality anti-friction bearings
  • Cost-effective design
  • Replaces competitive models
SKU: ALN050 Category: Tags: ,

Specifications

Performance

Operating work ALN025……0.25 ft·lb [0.34 N∙m]
ALN050……0.50 ft·lb [0.68 N∙m]
Maximum Force ALN025……..6.5 lbF [28.9 N]
ALN050……13.0 lbF [57.8 N]
Operating Stroke 0.9 in [22.8 mm]
Response Time (10-90 %, 2-18 mm) 35 ms

Electrical Power Input

Operating Voltage (Dedicated Coil)  12 or 24 V DC ±20 %
Nominal ALN025, ALN050 1.6 A @ 12 V DC
Operating Current 0.8 A @ 24 V DC
Maximum Current ALN025, ALN050 3.8 A @ 12 V DC
(Continuous) 1.8 A @ 24 V DC
Coil Resistance ALN025-12……1.8 ± 0.2 Ω
ALN025-24……7.3 ± 0.2 Ω
ALN050-12……1.9 ± 0.2 Ω
ALN050-24……7.7 ± 0.2 Ω
Connection 18 AWG [0.8 mm²] leads



Environmental

Operating Temperature  -40 to 200 °F [-40 to 95 °C]
Relative Humidity Up to 100 %
Vibration 20 g @ 20 to 500 Hz
Shock 20 g @11 ms
All Surface Finishes Fungus Proof and
Corrosion Resistant
Sealing Oil, Water, and Dust Resistant



Physical

Dimensions See Section 3, Dimensions
Weight ALN025….. 2.5 lbf [1.1 kgf]
ALN050……4.3 lbf [2.0 kgf]



Downloads

App Note – ALN025 for a Kubota Z482

ALN Installation Manual

ALN Sales Brochure
