Caterpillar AVR VR6 | Original
- Power: Shunt excited.
- Input: 180–280 VAC, 50/60 Hz, single-phase or three-phase.
- PMG Excitation: 63–105 VAC, 100/240 Hz, three-phase.
- Sensing Input: 180–240 VAC, 50/60 Hz, single-phase or three-phase.
- CT Input: 1 A or 5 A AC, 50/60 Hz.
- ACC Input: ±3 VDC.
- Output: 65 VDC at 12 ADC.
- Unit Type: Encapsulated – Rugged.
- Weight: 1.5 kg.
- Dimensions: 9.4 × 7.1 × 3.5 inches.
- Mounting: 4 mounting holes.
- Warranty: 1 year.
$120.99
Compare
SKU: VR6

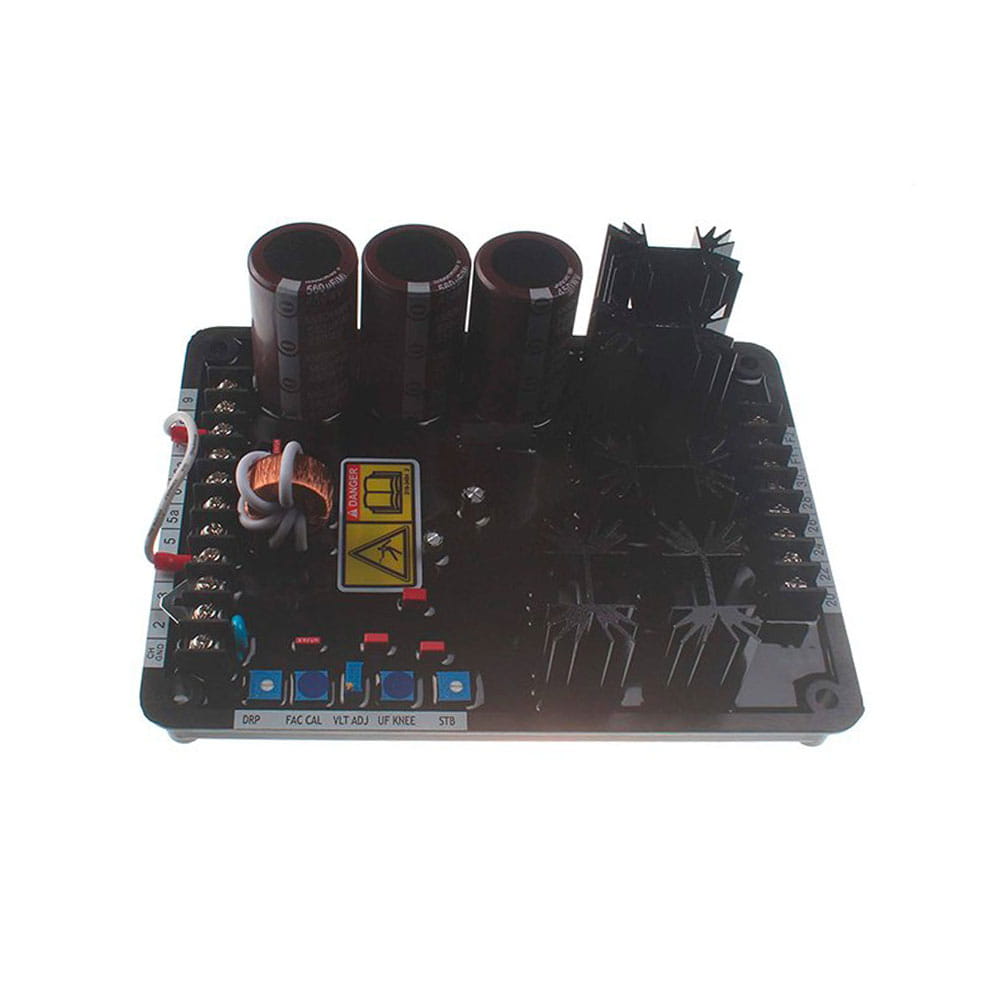

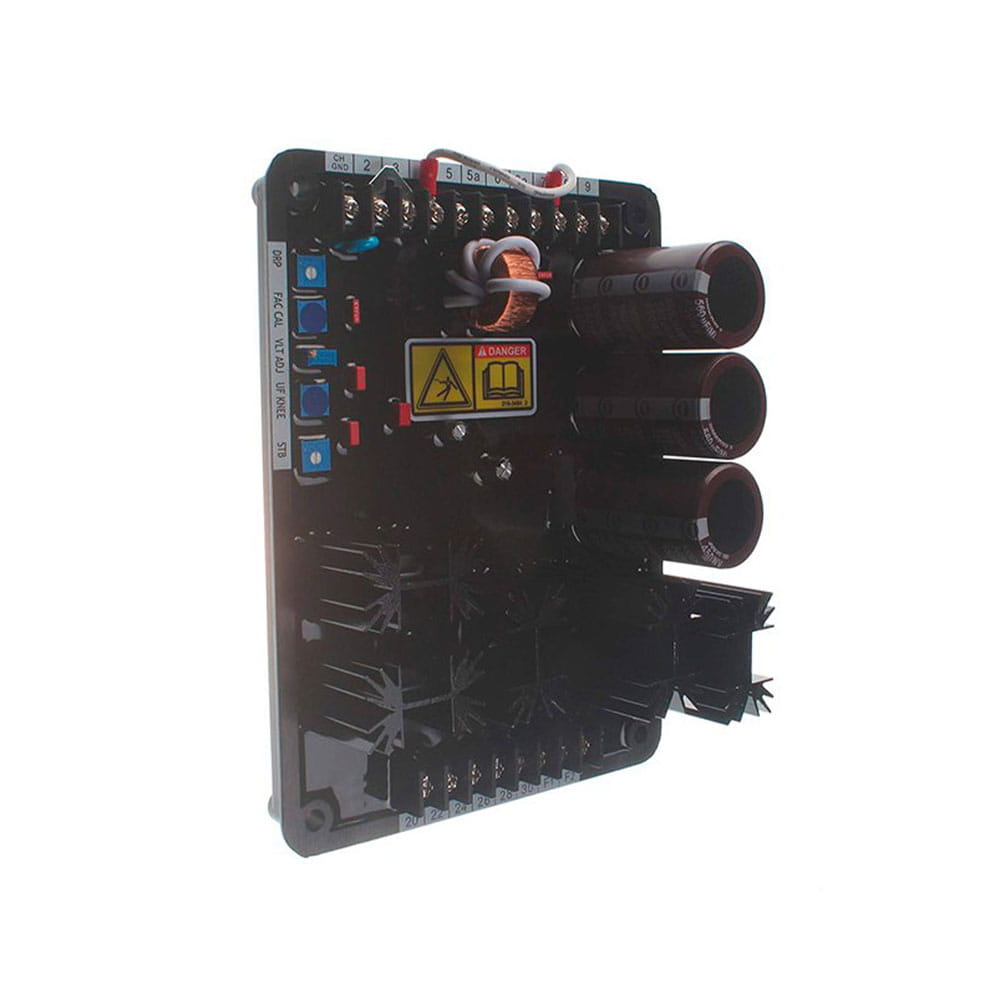

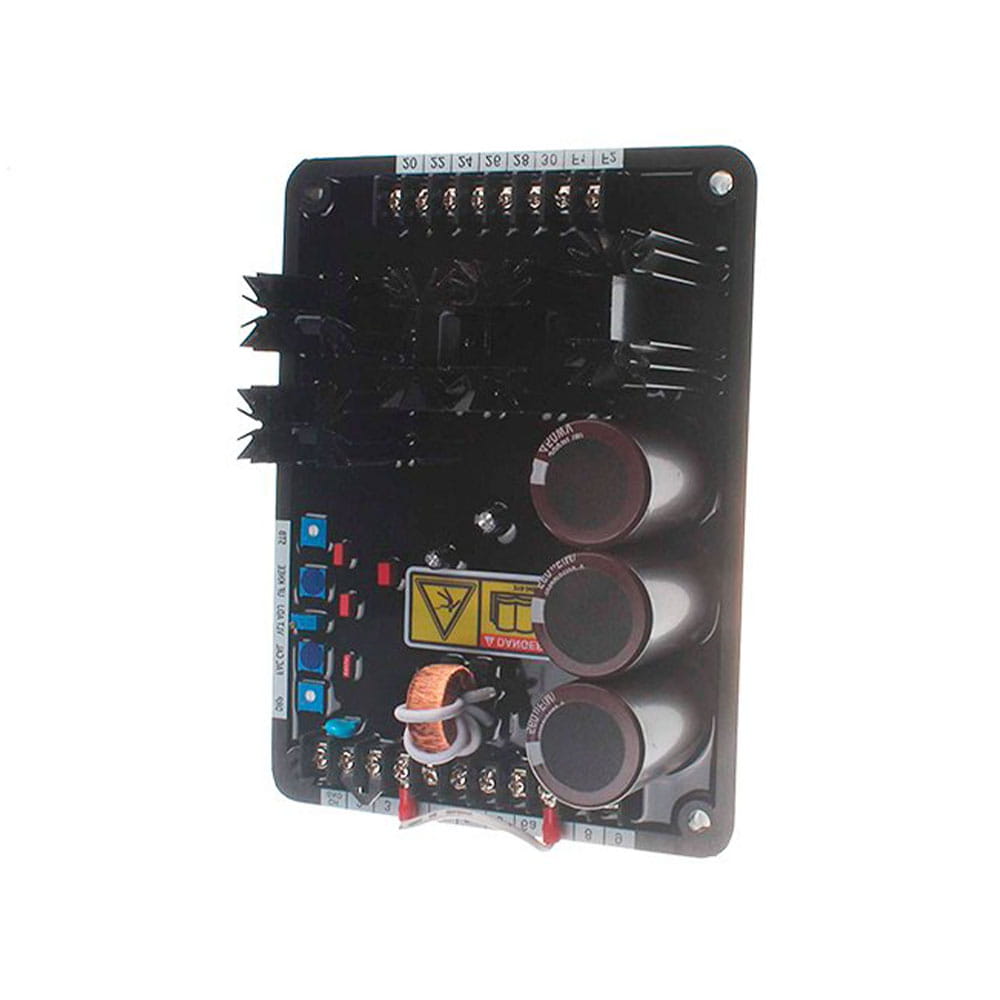

The Caterpillar VR6 (K65-12B) is an Automatic Voltage Regulator (AVR) designed for Caterpillar generator sets using KATO brushless alternators. It regulates the generator output voltage by controlling the excitation field current, maintaining stable power output under varying load conditions.
The VR6 supports both shunt-excited and PMG-excited configurations, making it adaptable to different generator system designs. It accepts single-phase or three-phase sensing input and includes frequency compensation to protect the alternator during speed variations. Remote voltage fine-tuning is possible via an external 10k ohm potentiometer.
