AVR SX440 | Generic Replacement
- AVR SX440 Automatic Voltage Regulator Control Module for Generator AVR – 1 Year Warranty! — INPUT Voltage: 190 – 264V ac | Frequency: 50-60 Hz nominal | Phase:1 | Wire: 2
- OUTPUT Voltage: max 90V dc at 207V ac | input Current: continuous 4A dc Intermittent 6A for 10 secs | Resistance: 15 ohms minimum
- REGULATION +/- 1% | THERMAL DRIFT 0.04% per deg. C change in AVR ambient.
- TYPICAL SYSTEM RESPONSE AVR response 20ms | Field current to 90% 80ms | Machine Volts to 97% 300ms
- EXTERNAL VOLTAGE ADJUSTMENT +/-10% with 1 k ohm 1 watt trimmer. | UNIT POWER DISSIPATION 12 watts maximum
Call for Quote for international purchases!
$45.49

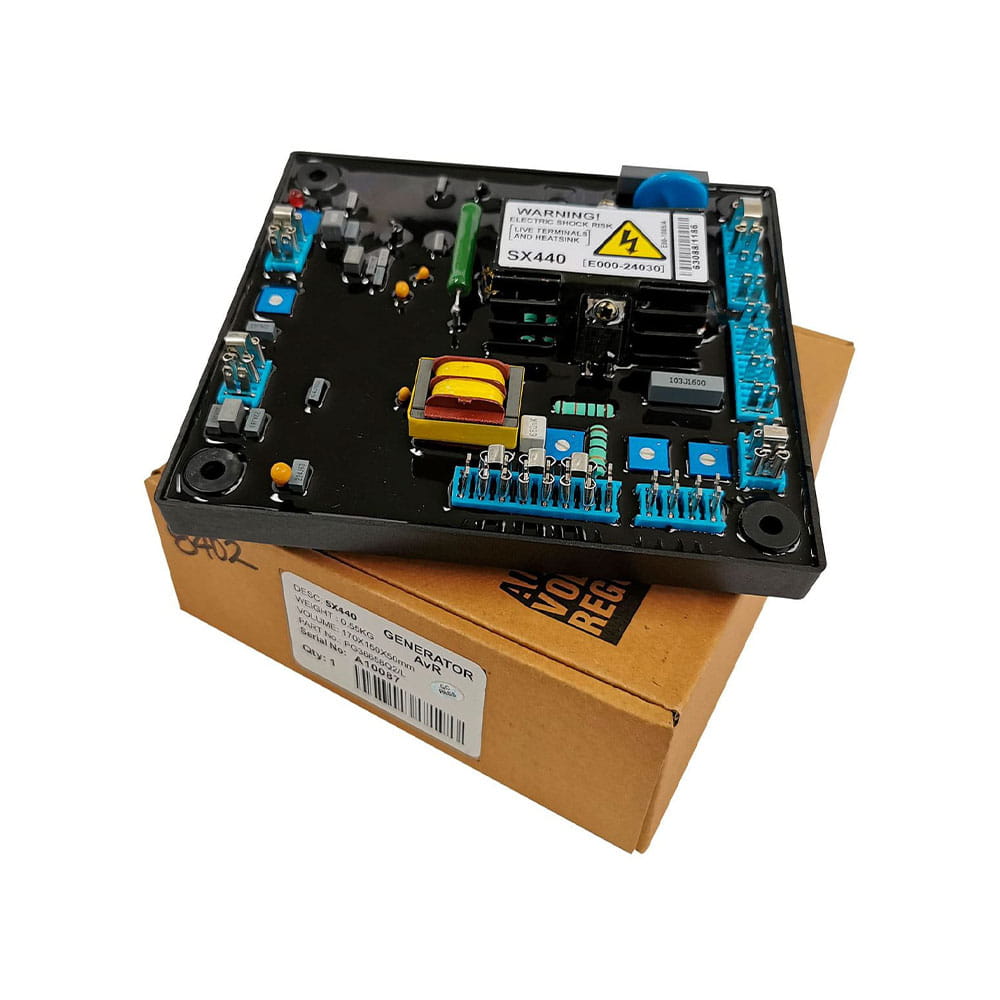

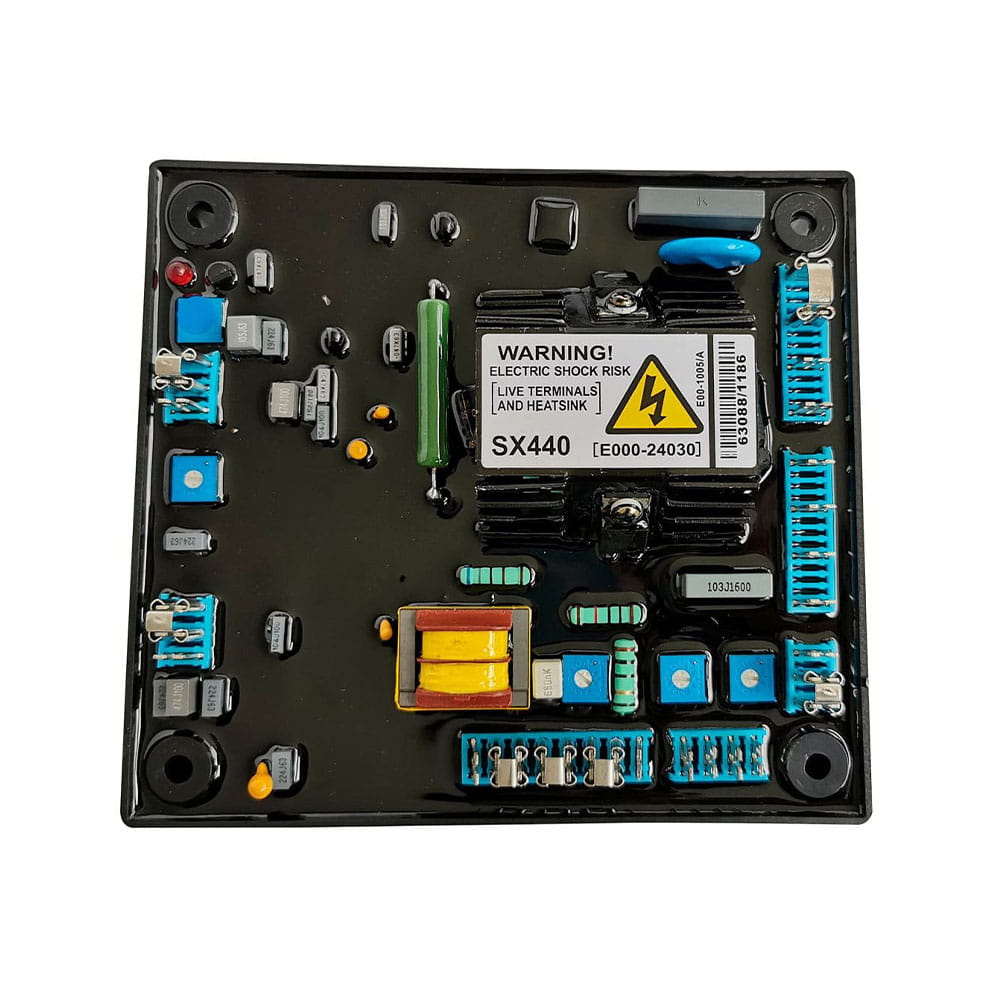

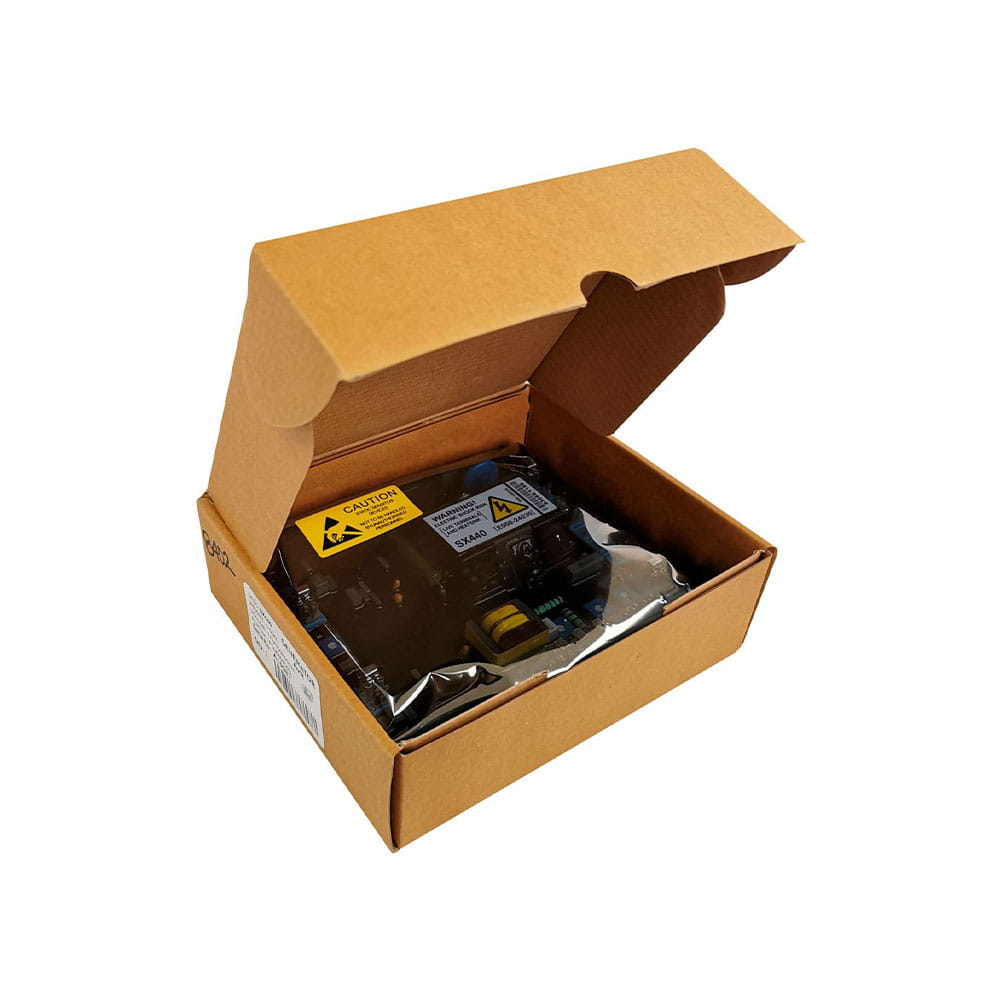

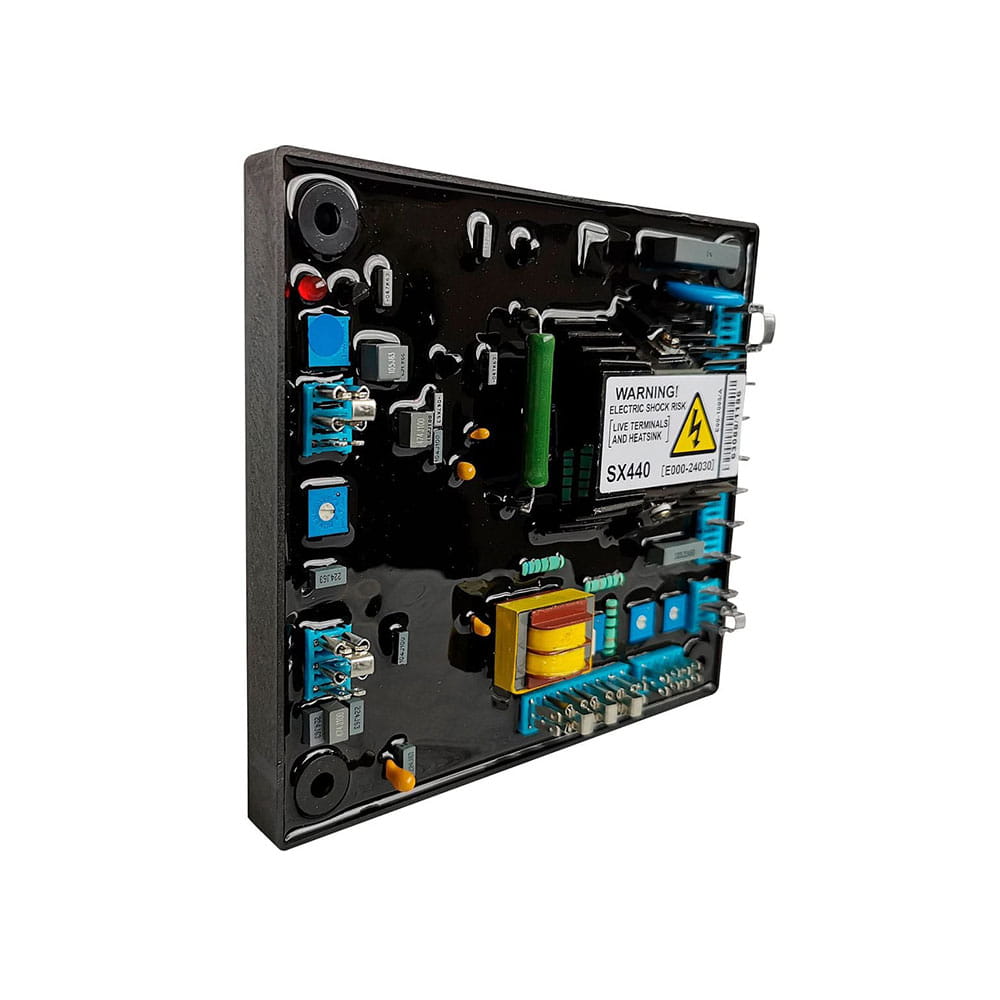

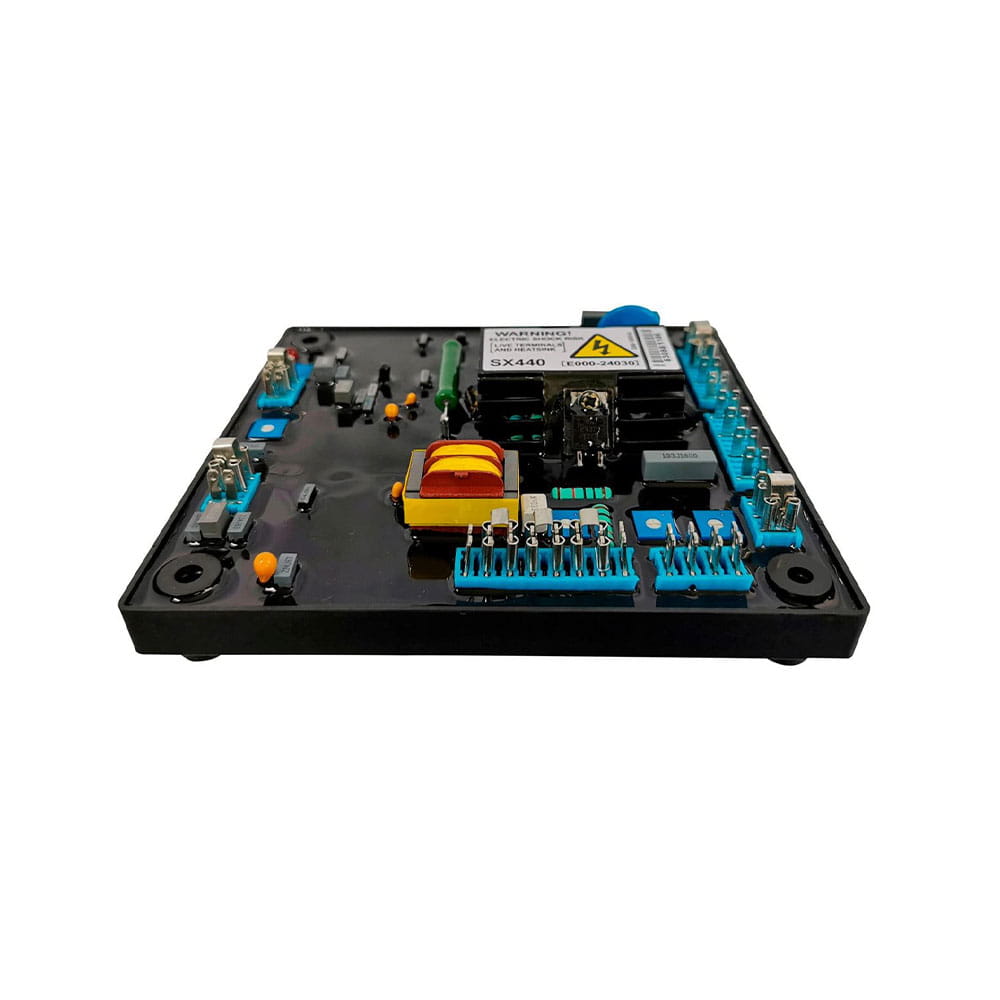

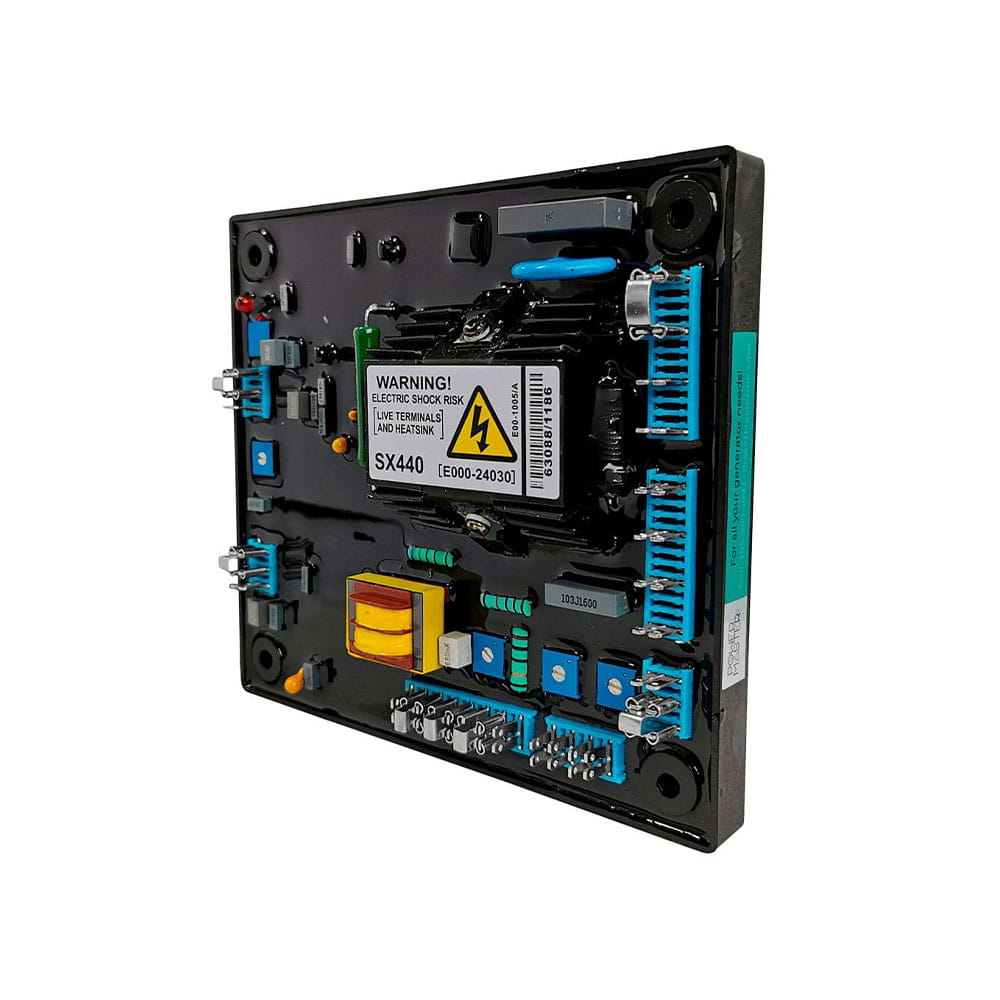

The SX440 is a self-excited, single-phase sensing Automatic Voltage Regulator (AVR) and generic replacement for the Cummins SX440, designed for brushless generator systems. Input voltage is 190–264V AC (single-phase, 2-wire) at 50–60 Hz.
The SX440 delivers a maximum output of 90V DC at 207V AC input, with a continuous current of 4A DC and intermittent current of 6A for 10 seconds. Minimum field resistance is 15 ohms. Voltage regulation accuracy is ±1%. Thermal drift is 0.04% per °C change in AVR ambient. Voltage build-up starts from 4V at the AVR terminals. Maximum power dissipation is 12 watts.
External voltage adjustment of ±10% is available via a 1kΩ trimmer. Under-frequency protection set point is 95% of nominal Hz with a slope down to 30 Hz. Quadrature droop input is supported with 10 ohms burden. Analog input accepts up to ±5V DC. System response time is 20ms for AVR, 80ms for field current to 90%, and 300ms for machine volts to 97%. Operating temperature range is -40°C to +70°C.
Additional information
| Weight | 1.56 oz |
|---|---|
| Dimensions | 8 × 8 × 4 in |
