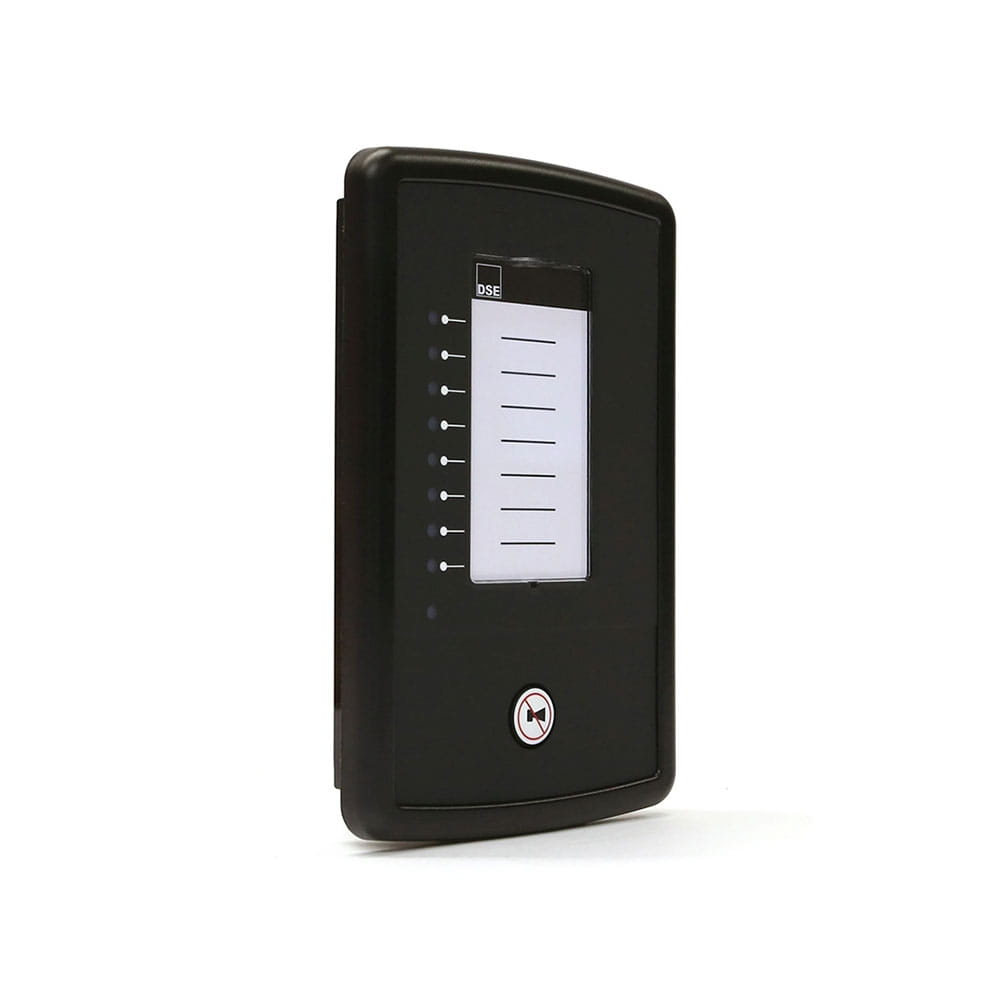

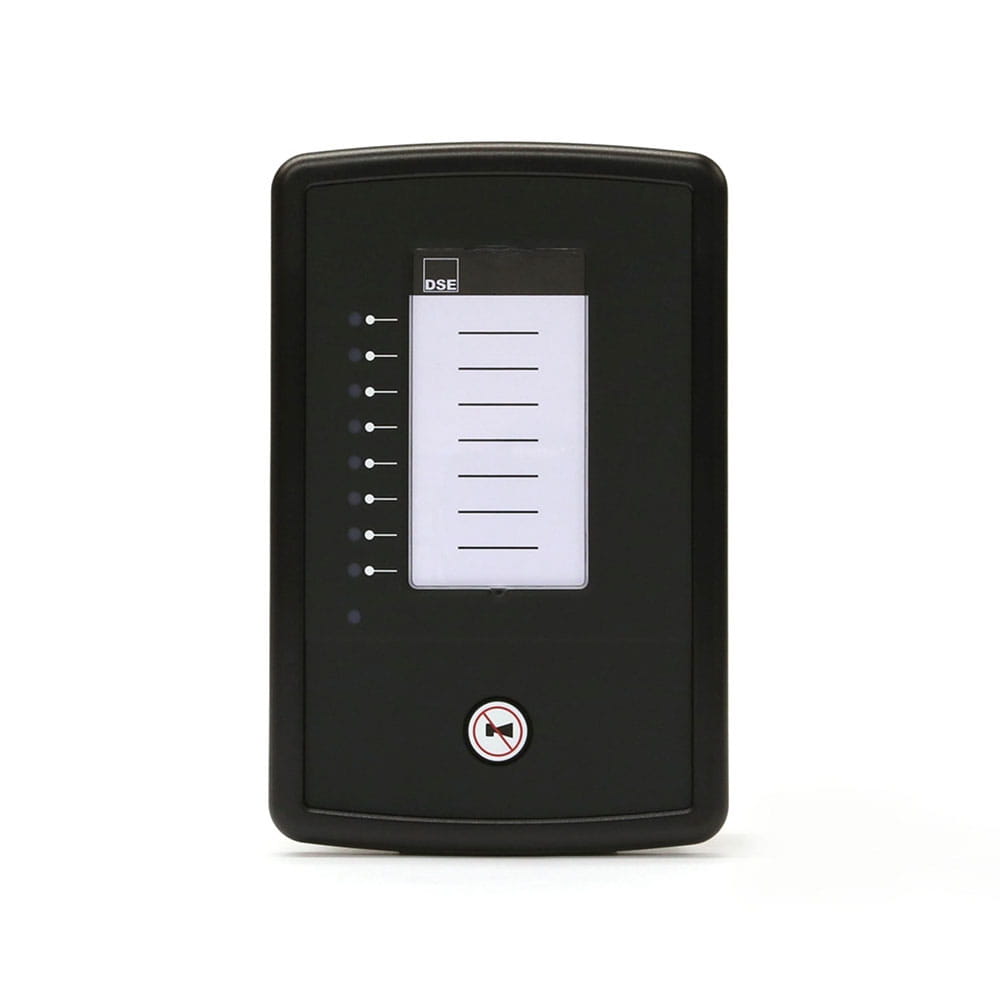

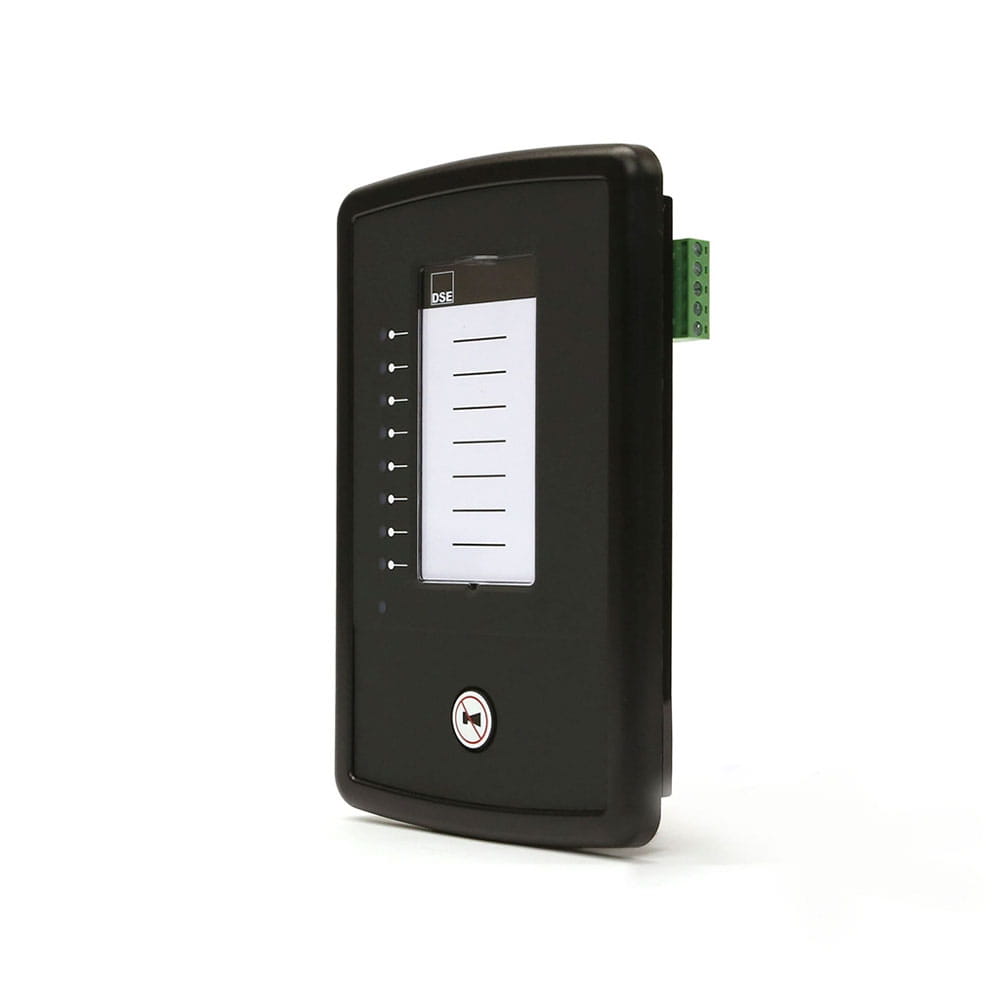

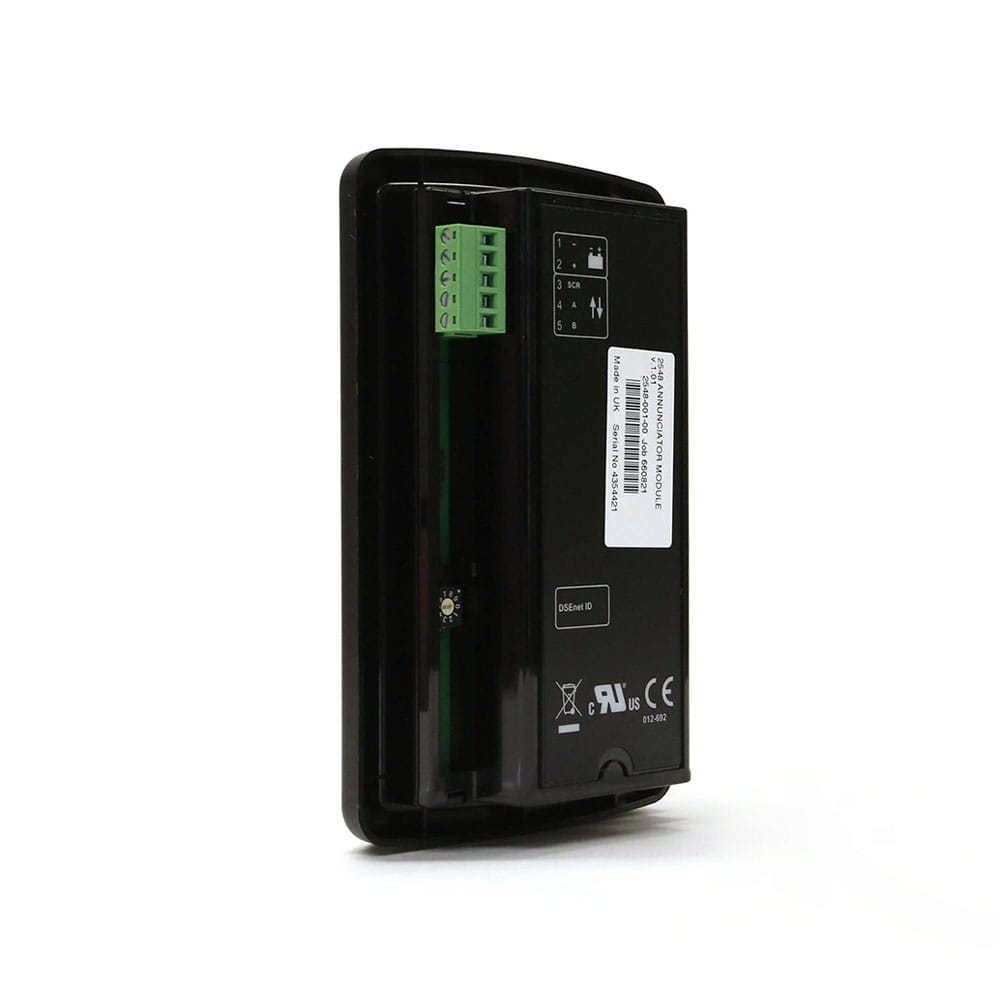

DSE2548 | Output Expansion Module
- Panel mount.
- Vertical design.
- In-built alarm.
- Alarm mute button.
- Power on/link lost LED.
- Connect maximum of 10 x DSE2548’s to a single host controller.
- Max of 80 configurable LED’s.
PRODUCT VARIANTS
2548-01 – 2548 Output Expansion Module
2548-01 – 2548 Output Expansion Module
Call for Quote for international purchases!
$225.99
1 in stock
SKU: 2548-01
Categories: Expansion Modules
The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs.
The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module.
OVERALL SIZE
180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
Additional information
| Weight | 1.2 oz |
|---|---|
| Dimensions | 9 × 7 × 5 in |
| BRANDS | DSE |
