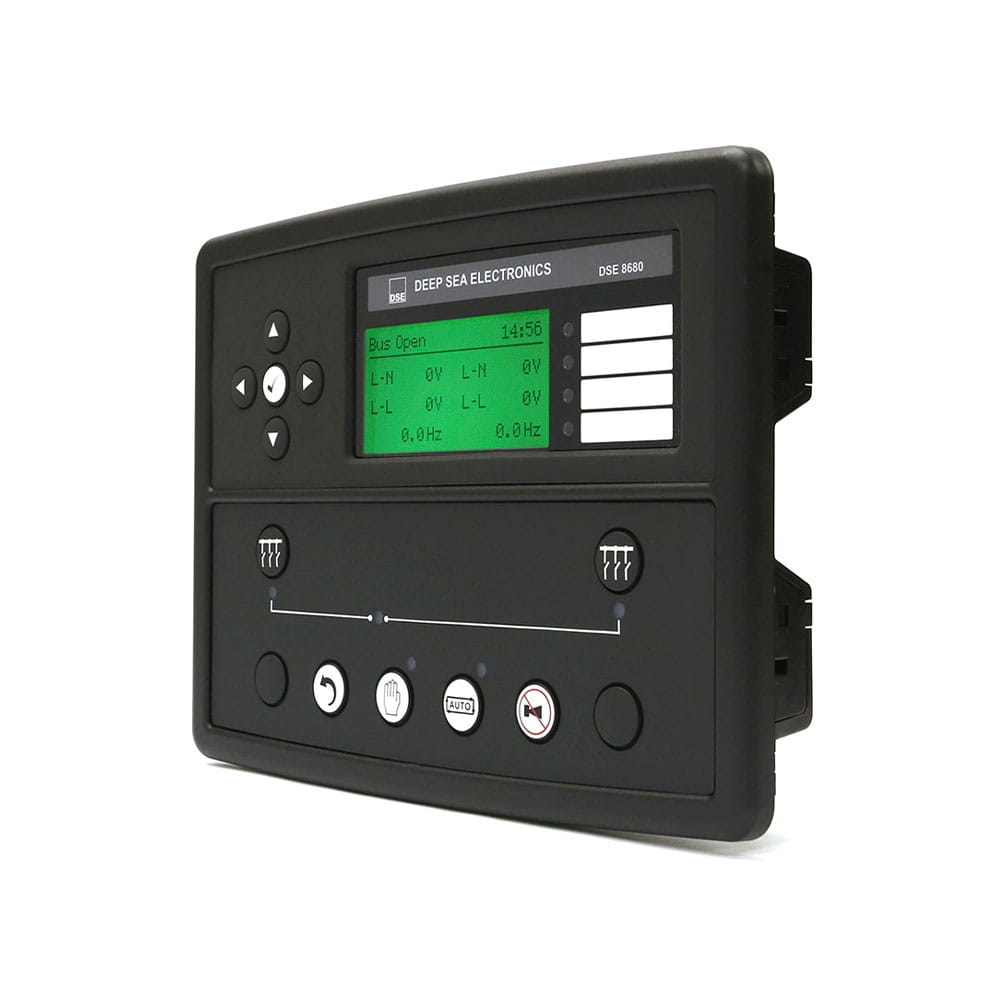

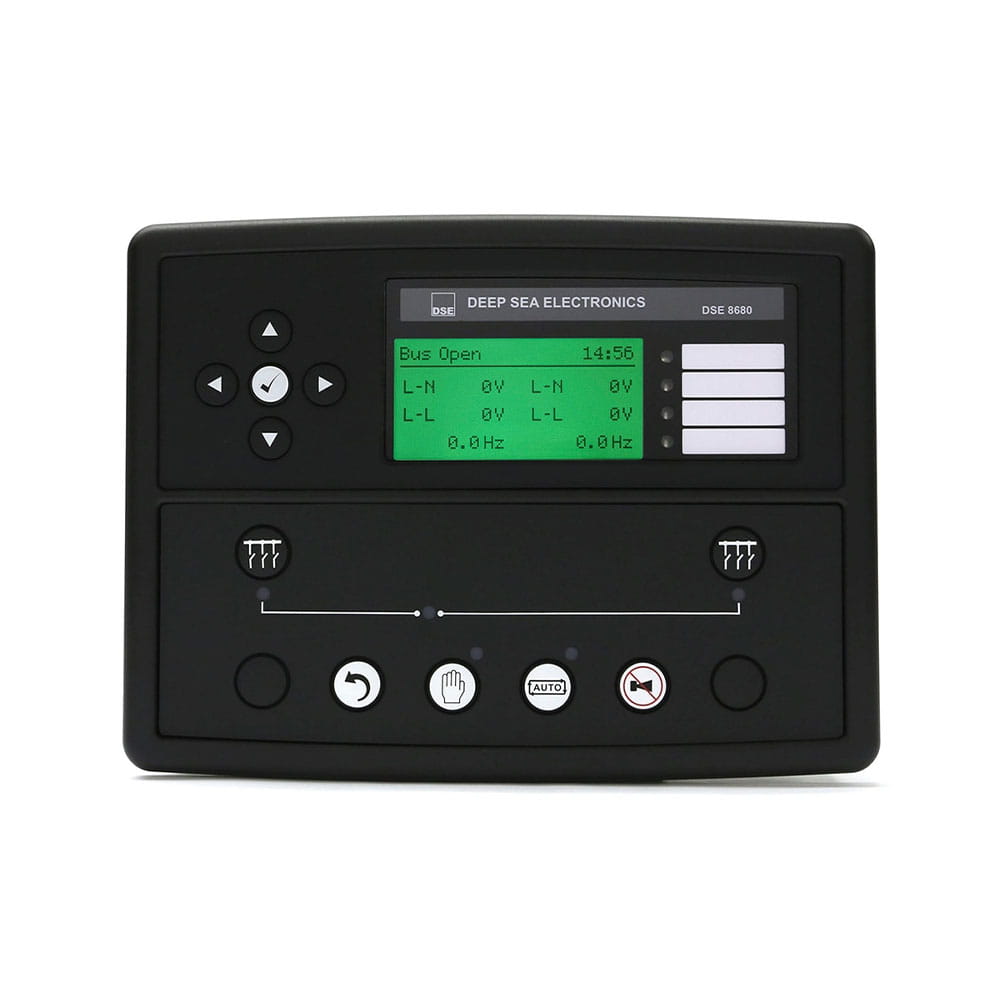

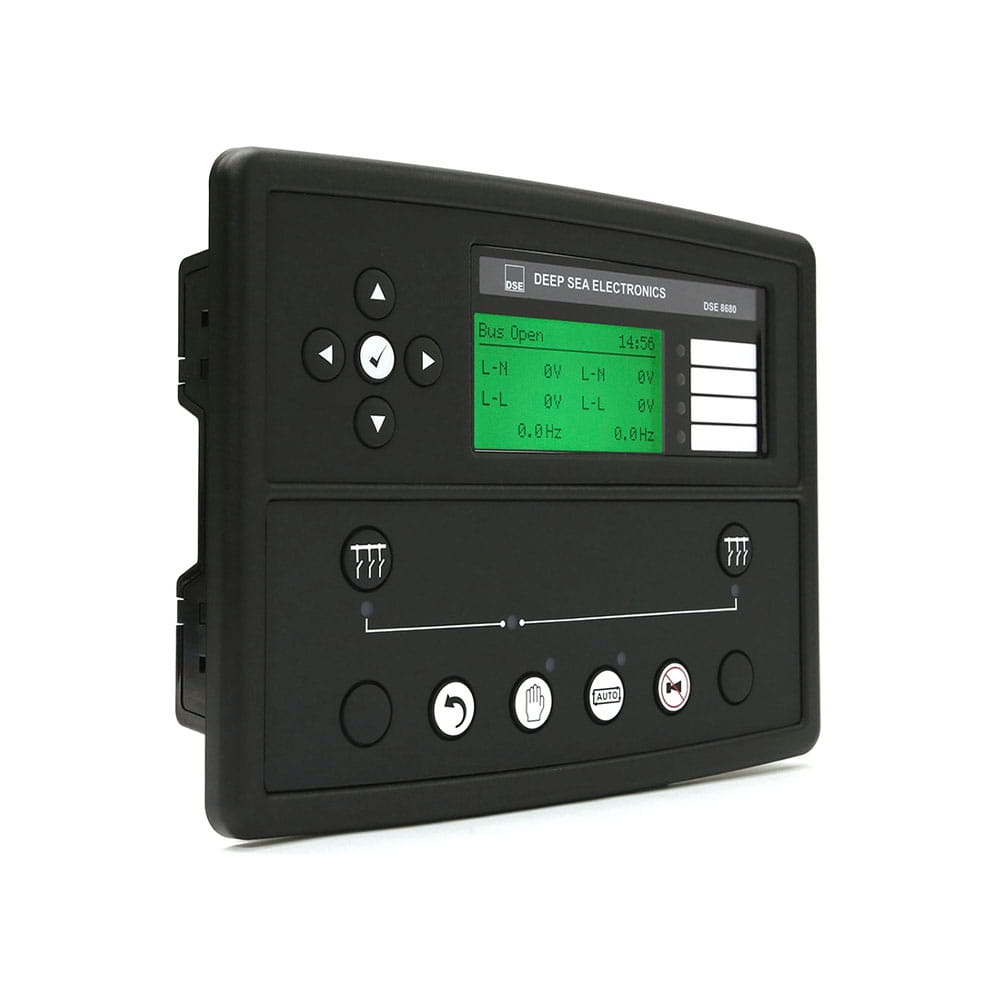

DSE8680 Synchronising Generator Bus Tie Control Module
- Connects to two DSE MSC links (Bus 1 & Bus 2).
- Configurable inputs/outputs (11/8).
- Remote communications (RS232, RS485 x2, Ethernet).
- Data logging (USB Memory Stick).
- DSE Configuration Suite PC Software.
PRODUCT VARIANTS
8680-01 – 8680 Synchronising Generator Bus Tie Control Module
Call for Quote for international purchases!
$1,615.99
Compare
SKU: DSE8680-01
Categories: Load Sharing & Synchronizing

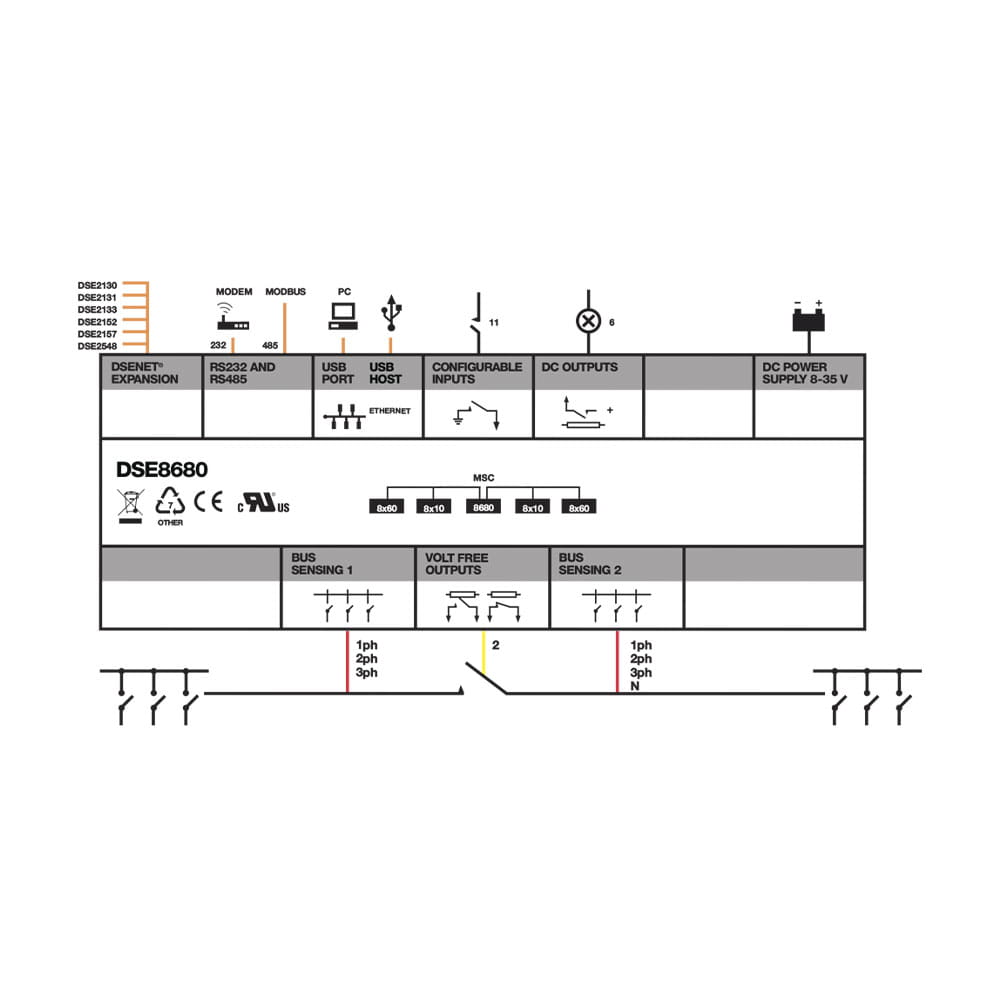

The DSE8680 is an intelligent control module designed to control a generator bus-tie breaker. The control module features technology that automatically manages the synchronising and check-sync across the breaker using the DSE multi-set communications (MSC) link when opening and closing the bus-tie breaker.
OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.86kg
Additional information
| BRANDS | DSE |
|---|
