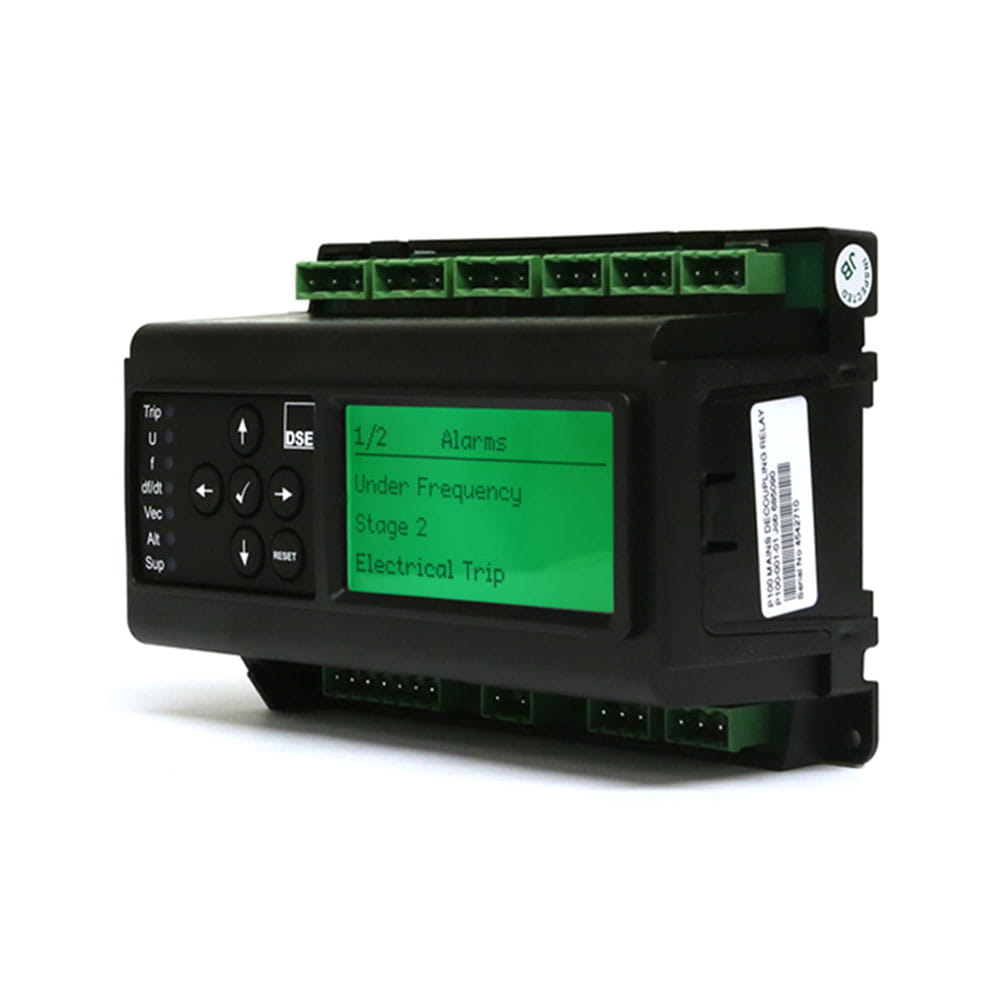

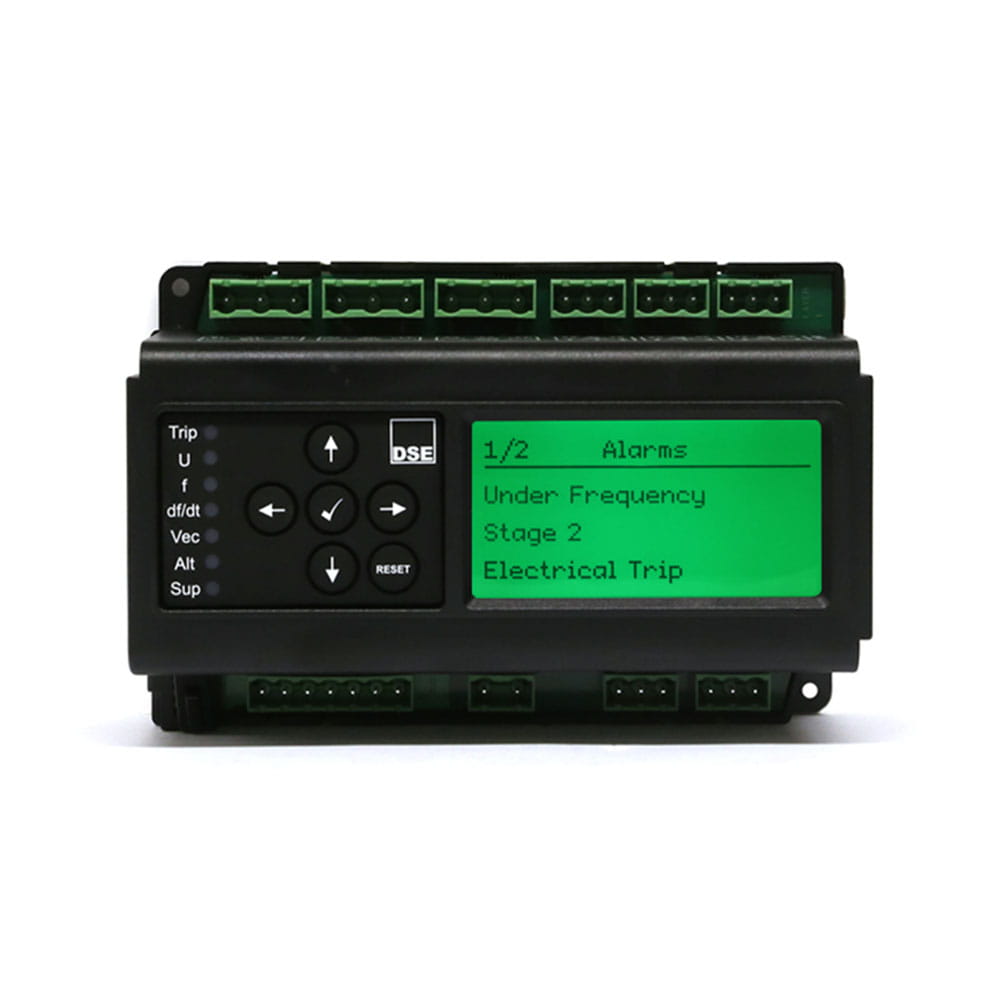

DSEP100 | Mains Decoupling Relay
- Lockable security tab to prevent configuration changes after commissioning.
- Numerous mains (utility) decoupling functions in one stylish easy to use device
- LCD and LED indication for status and fault indication
- Configurable automatic fault reset function to avoid manual reset by site personnel
- Configurable to trip one or two breakers
P100-01 – P100-02 Mains (Utility) Decoupling Relay
Call for Quote for international purchases!
Price range: $1,188.99 through $2,197.99
The DSEP100 is a Mains (Utility) Decoupling Relay which is used to protect independent power applications that are connected to a mains (utility)/grid supply. This could include a range of applications that generate power in parallel with the grid e.g. generators that are inverter connected (including renewables) and all types of synchronous and asynchronous generators.
The DSEP100 works by reliably detecting mains (utility)/grid failures and disconnects equipment from the mains (utility) supply in line with relevant country/DNO requirements. The benefit of using a powerful independent mains (utility) decoupling relay, even where inverters are fitted, is to provide a more sophisticated level of protection. The engineering framework dictates the limits/parameters for under and over voltage, under and over frequency, vector-shift and RoCoF protections.
The DSEP100 is fully compliant to world standards including G99/1, G98/1, G59/3, G83/3 and C10/11.
MOUNTING TYPE

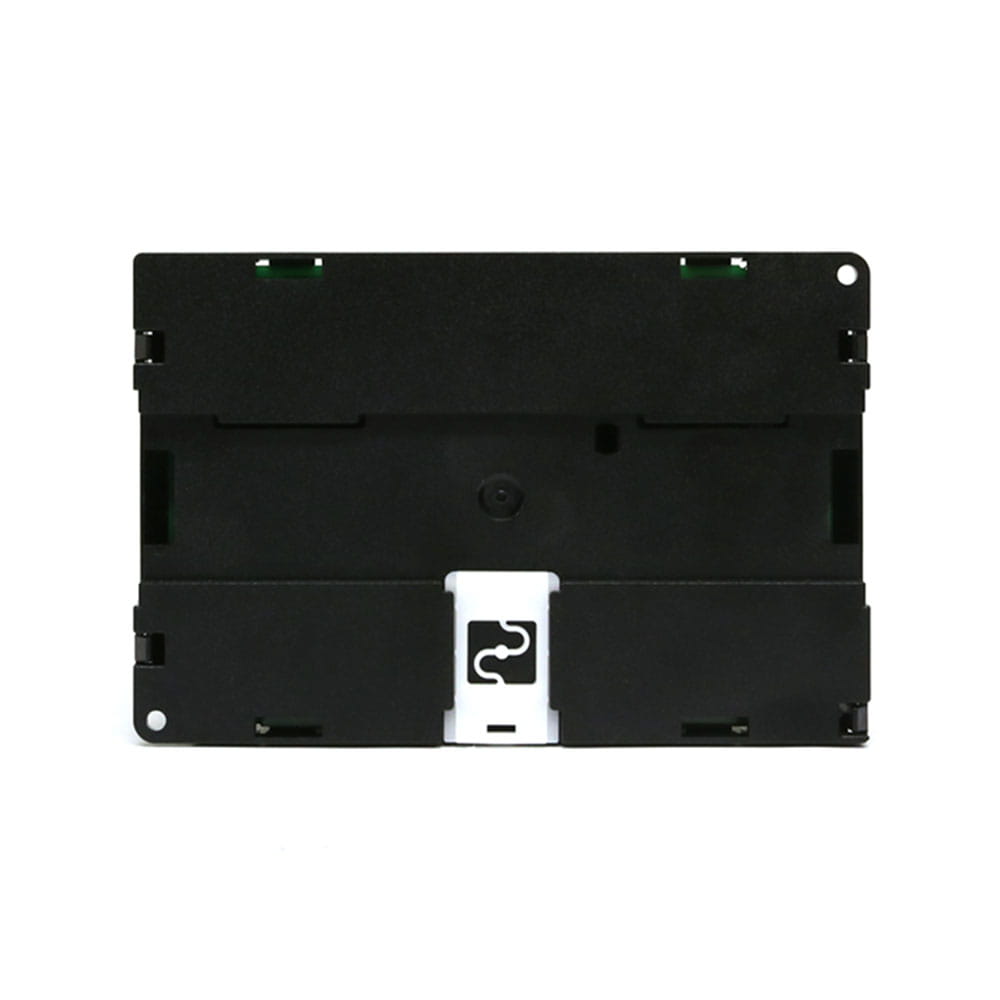

DIN Rail or Chassis Mounting
0.38kg
Additional information
| BRANDS | DSE |
|---|---|
| DSE P100 | P100-01 (Utility) Decoupling Relay, P100-02 (Utility) Decoupling Relay (699 type tested) |
