GAC Integrated Actuator ATB75T4N14-24 75 mm | Throttle Body | 100% Original GAC!

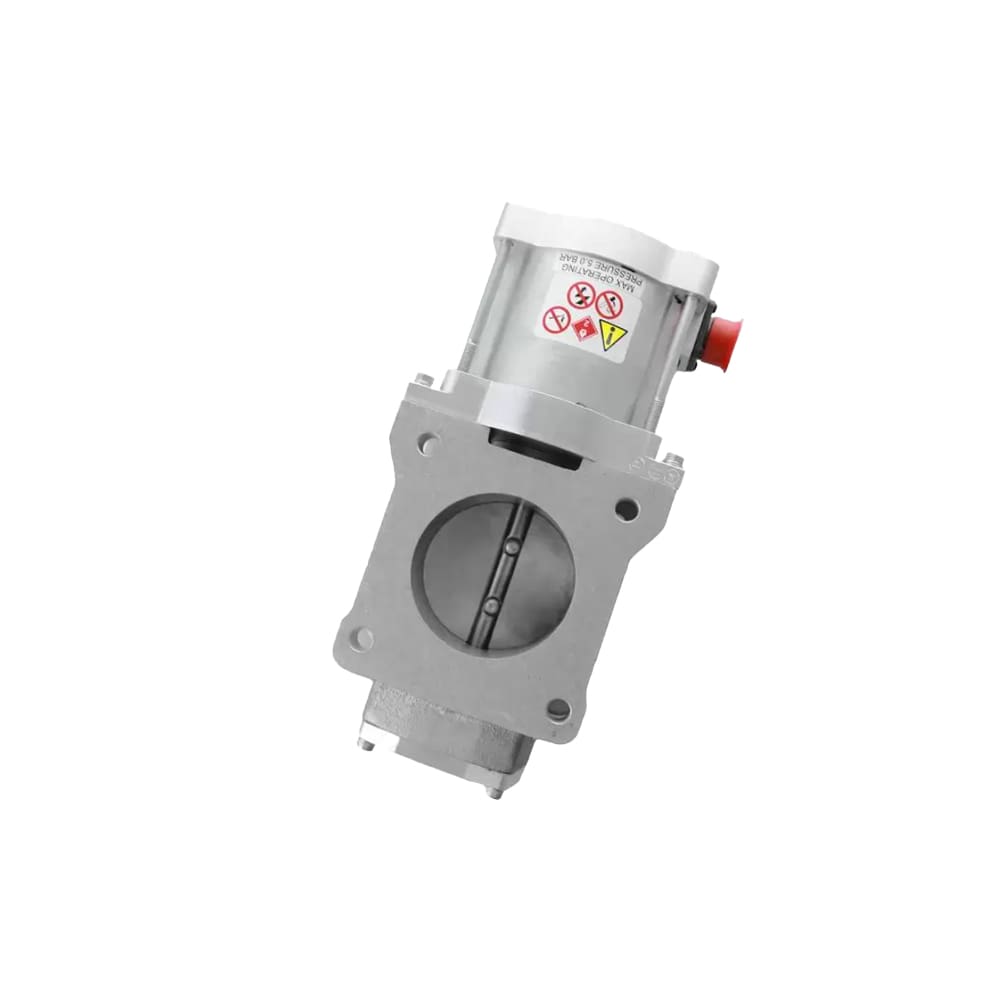

The ATB Series integral throttle body electric actuators are designed to control the air or air/fuel mixture to a gaseous-fueled engine. The design baseline for the ATB Series incorporates fast response and proven reliability to allow for efficient and precise control.

The ATB Series actuator directly drives the throttle plate with internal return springs, insuring that the throttle plate returns to the minimum fuel position when the actuator becomes de-energized.

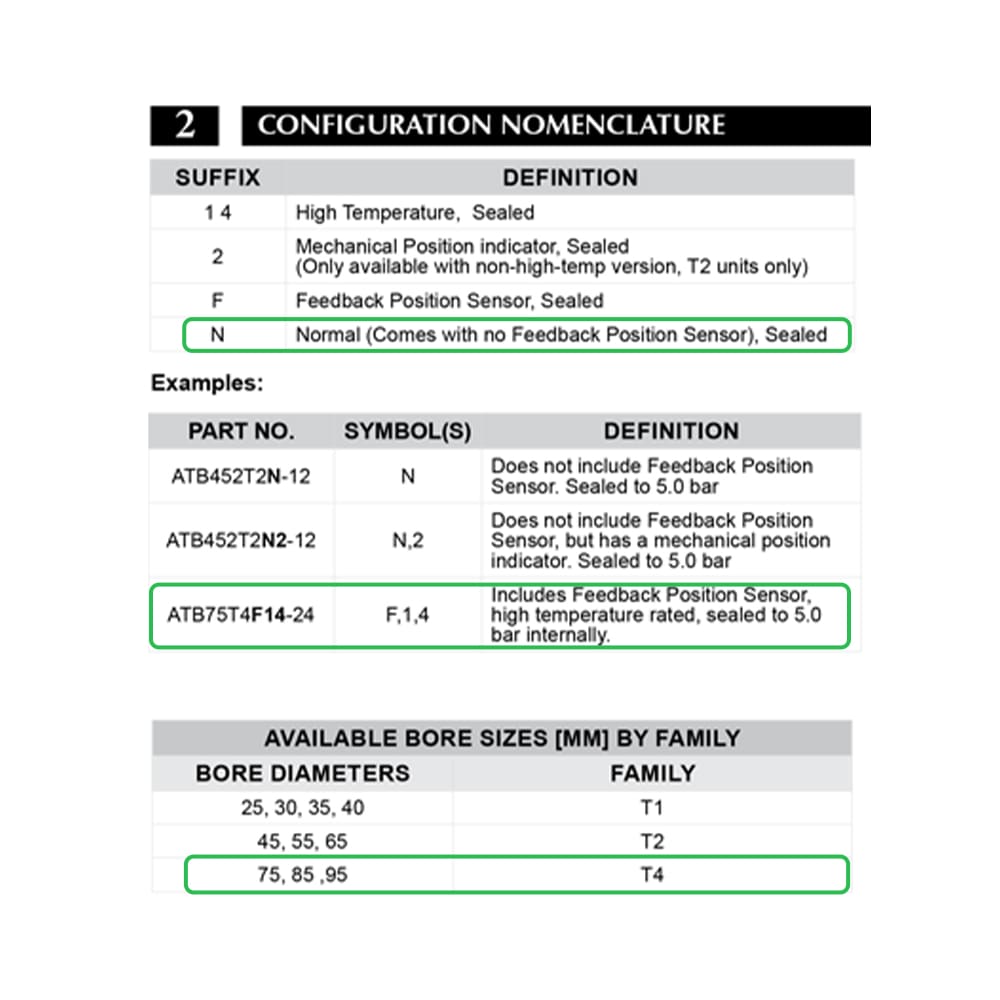

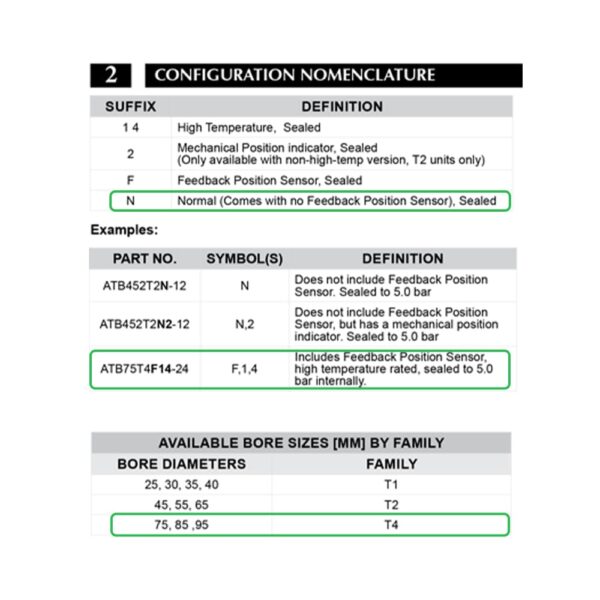

• ATB75T4N14-24V DC / 75 mm / 200 ºF [125 ºC] Ambient
• Cost-effective, maintenance-free, compact design / Rapid response to transient load condition.
• Mounts in any position; no mechanical linkage, no mounting brackets. / Flexible design for engine, manifold, and fuel mixer considerations
• Idle and max adjustment screws / Includes Military Connector without mating connector / Available in CSA approved options.
