ESD5100 Series | Speed Controls

GAC

ESD5100 Series – Isochronous, Variable, & Droop Operation /Adjustable PID Functions / Variable Speed Trim / Switchable Droop and Idle Control / Auxiliary Power Supply /10 VDC Supply for Accessories

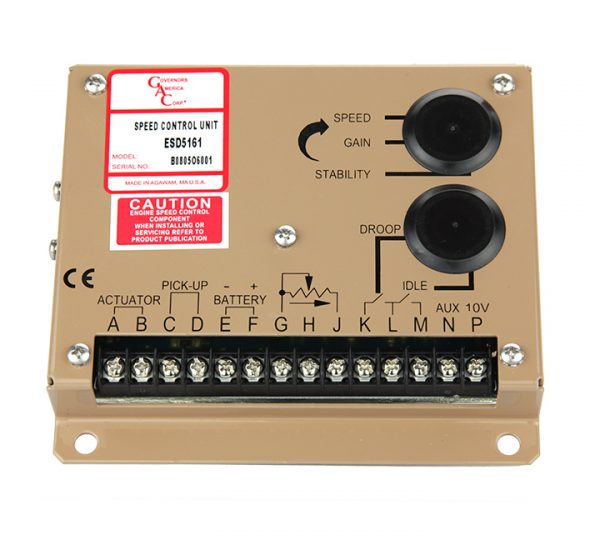

The ESD5100 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it’s hard potted to withstand the engine environment.

Part Numbers

ESD5111 (CE) Multi-VDC / Standard Unit
ESD5111T (CE) Multi-VDC / Temperature Compensated
ESD5119 (CE) Multi-VDC / EFC Reverse Acting (Normally Open)
ESD5120 (CE) Multi-VDC / Light Force / EFC Forward Acting (Normally Closed)
ESD5131 (CE) Multi-VDC / Switchable Soft Coupling and Lead Circuit
ESD5150  (CE) Multi-VDC / EFC Forward Acting
ESD5159 (CE) Multi-VDC / Expanded Frequency Range 10.5kHz
ESD5160 (CE) Multi-VDC / EFC Reverse Acting / Extended Speed Range
ESD5161 (CE) Multi-VDC / Expanded Auxiliary Input Range
