ALN025 | Actuator
- Low Cost, Compact Design
- Fast Response
- Precise Repeatability
- Provide a quick response time and can be used for many different applications
- Completely self-contained
- Integral return spring returns output shaft to zero fuel position if battery power is lost
- Operate in any position, are not gravity sensitive

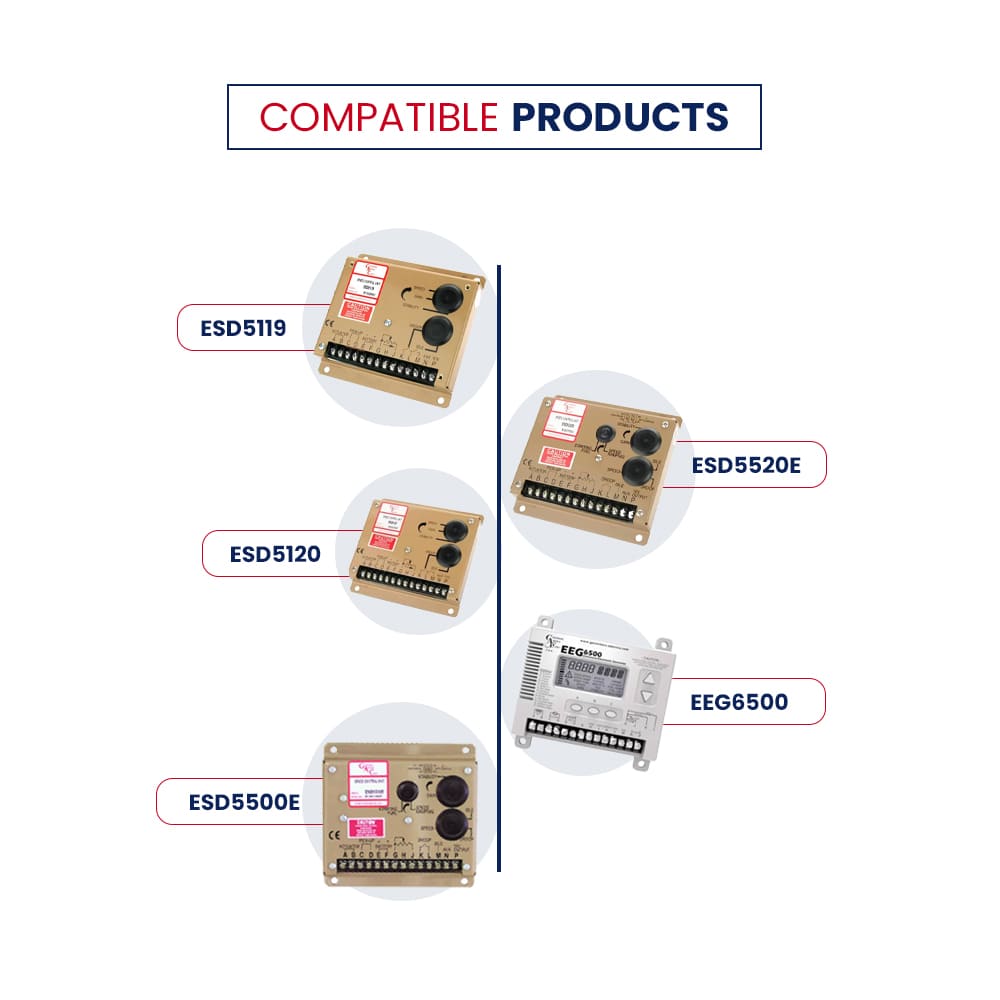

- Compatible with GAC’s standard speed control units
- Maintenance Free
- Requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit
Call for Quote for international purchases!
$419.99
12V DC | 24V DC • 6.5 lbf [3.0 kgf] • 0.25 lbf·ft [0.34 J] Work • Male Push-On Terminals
- 22 mm stroke, < 35 ms response
- Designed with high-quality anti-friction bearings
- Cost-effective design
- Replaces competitive models
Specifications
Performance
| Operating work | ALN025……0.25 ft·lb [0.34 N∙m] |
| ALN050……0.50 ft·lb [0.68 N∙m] | |
| Maximum Force | ALN025……..6.5 lbF [28.9 N] |
| ALN050……13.0 lbF [57.8 N] | |
| Operating Stroke | 0.9 in [22.8 mm] |
| Response Time | (10-90 %, 2-18 mm) 35 ms |
Electrical Power Input
| Operating Voltage (Dedicated Coil) | 12 or 24 V DC ±20 % |
| Nominal | ALN025, ALN050 1.6 A @ 12 V DC |
| Operating Current | 0.8 A @ 24 V DC |
| Maximum Current | ALN025, ALN050 3.8 A @ 12 V DC |
| (Continuous) | 1.8 A @ 24 V DC |
| Coil Resistance | ALN025-12……1.8 ± 0.2 Ω |
| ALN025-24……7.3 ± 0.2 Ω | |
| ALN050-12……1.9 ± 0.2 Ω | |
| ALN050-24……7.7 ± 0.2 Ω | |
| Connection | 18 AWG [0.8 mm²] leads |
Environmental
| Operating Temperature | -40 to 200 °F [-40 to 95 °C] |
| Relative Humidity | Up to 100 % |
| Vibration | 20 g @ 20 to 500 Hz |
| Shock | 20 g @11 ms |
| All Surface Finishes | Fungus Proof and |
| Corrosion Resistant | |
| Sealing | Oil, Water, and Dust Resistant |
Physical
| Dimensions | See Section 3, Dimensions |
| Weight | ALN025….. 2.5 lbf [1.1 kgf] |
| ALN050……4.3 lbf [2.0 kgf] |
