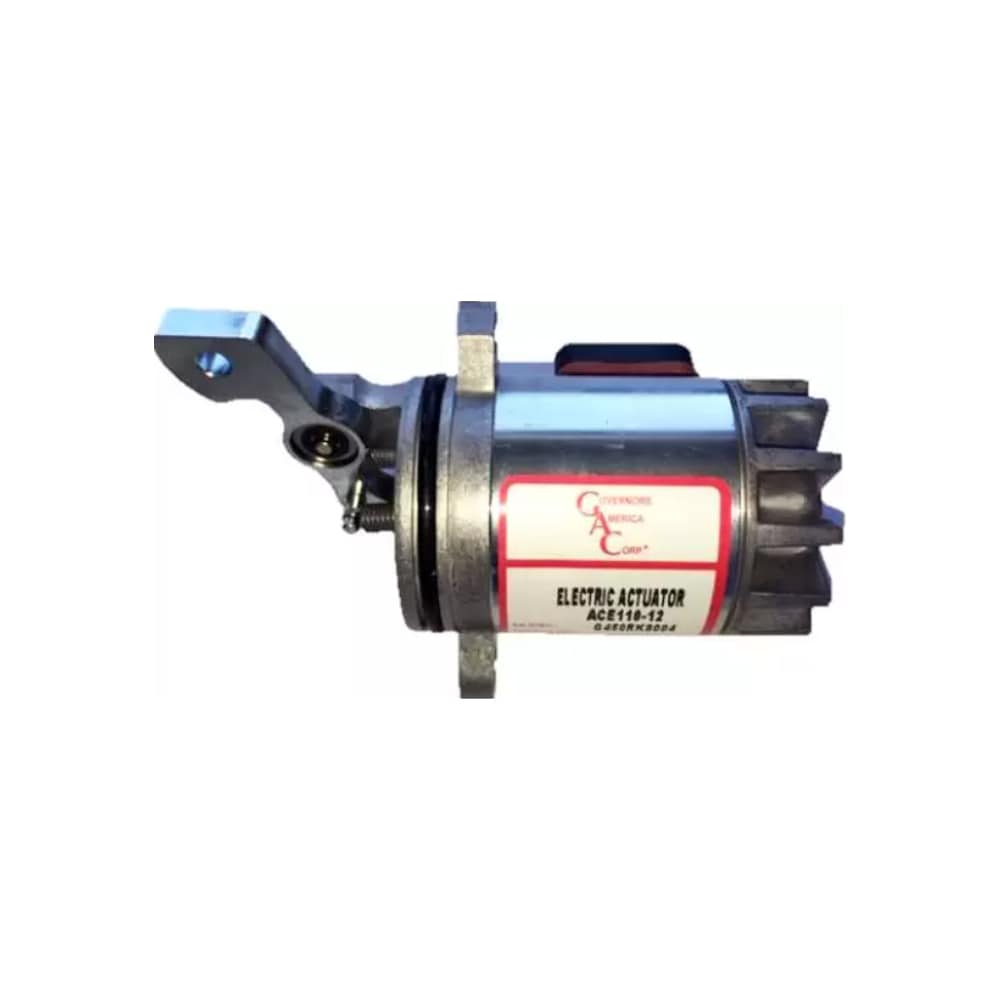

ACE110 | Engine Mounted Actuator

The GAC 110 Series Integral Actuator is designed to mount directly to DEUTZ 1011 Series 2, 3, and 4 cylinder engines in place of the electric stop solenoid and is available in 12 and 24 V DC. This unique, optimum fuel control, actuating device outperforms externally mounted types of electric actuators. An integral high performance speed control system results when the 110 Series Electric Actuator is installed on the engine and electrically connected to complementing governor system components. No external linkages or brackets are required.

• Mounts directly to Stanadyne D Series pump
• No external linkages or brackets required
• Functions as a fuel shutoff solenoid when governor system is de-energized
• Faster response than competitive design
