Leroy Somer AVR R450 | Original
The R450 AVR is supplied in a casing designed to be mounted on a panel with dampers.
- Operating temperature: – 30°C to + 65° C. – Storage temperature: – 55°C to + 85°C.
- Shocks on the base: 9 g depending on the 3 axes.
- Vibrations: less than 10 Hz, 2 mm half-peak amplitude 10 Hz to 100 Hz: 100 mm/s, above 100 Hz: 8 g.
Call for Quote for international purchases!

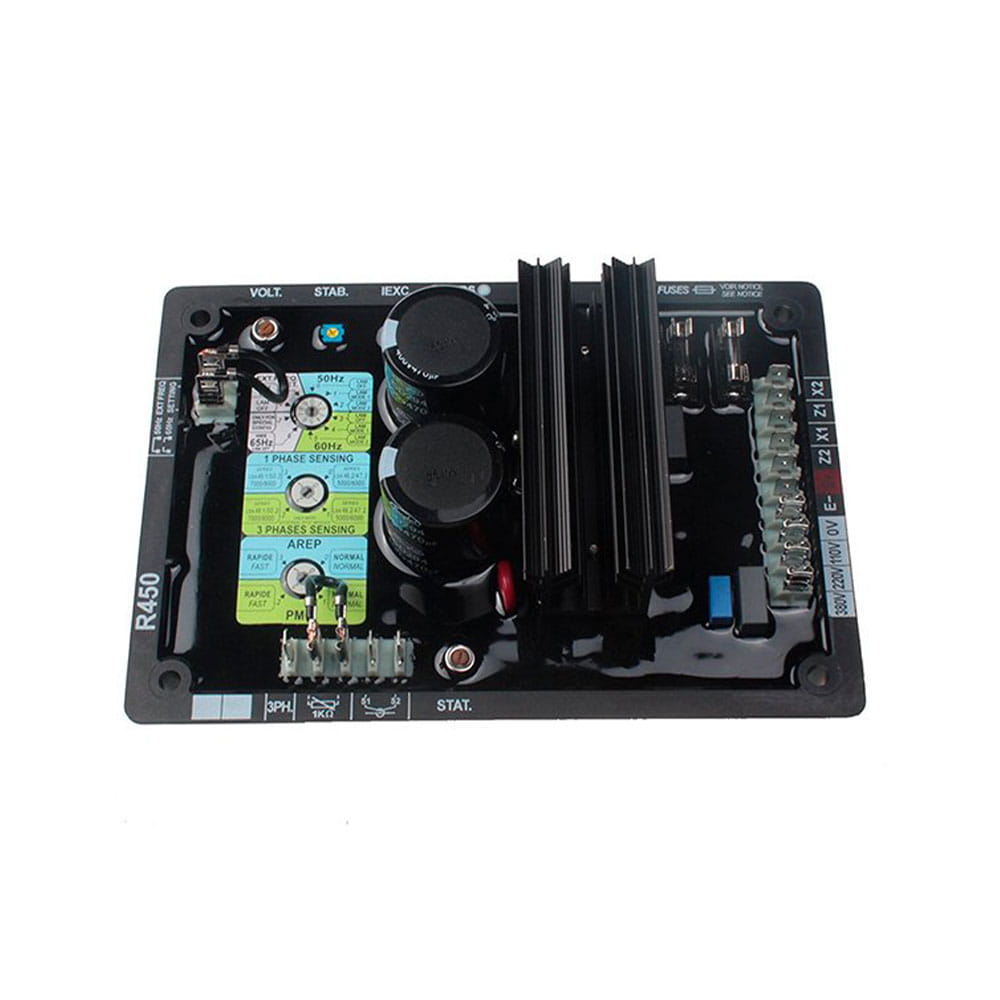

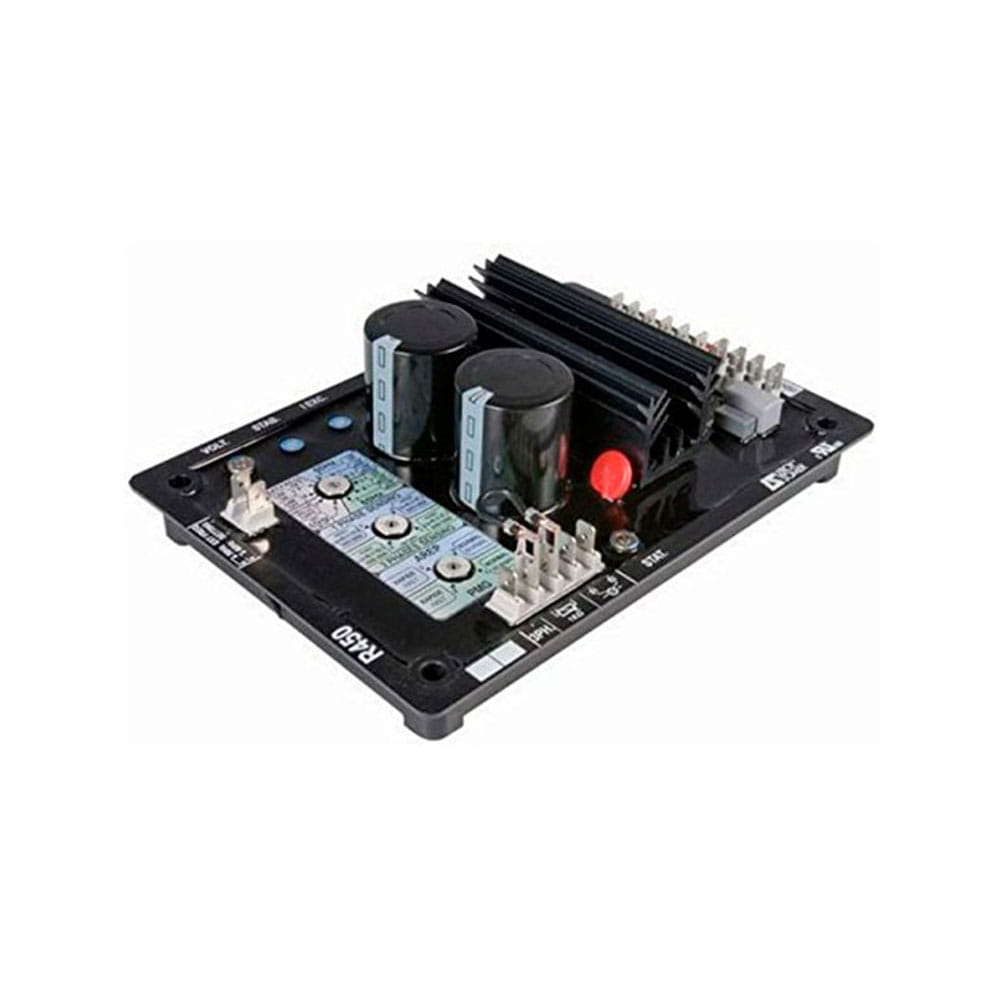

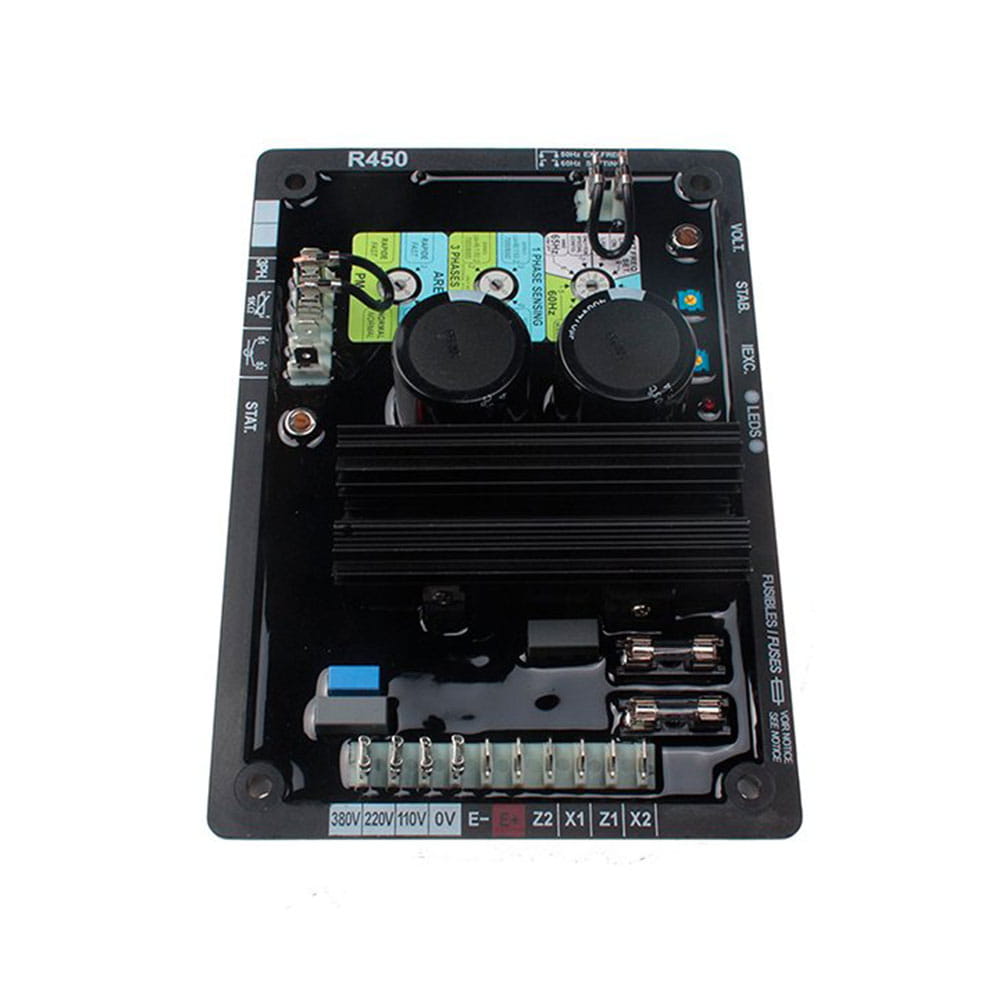

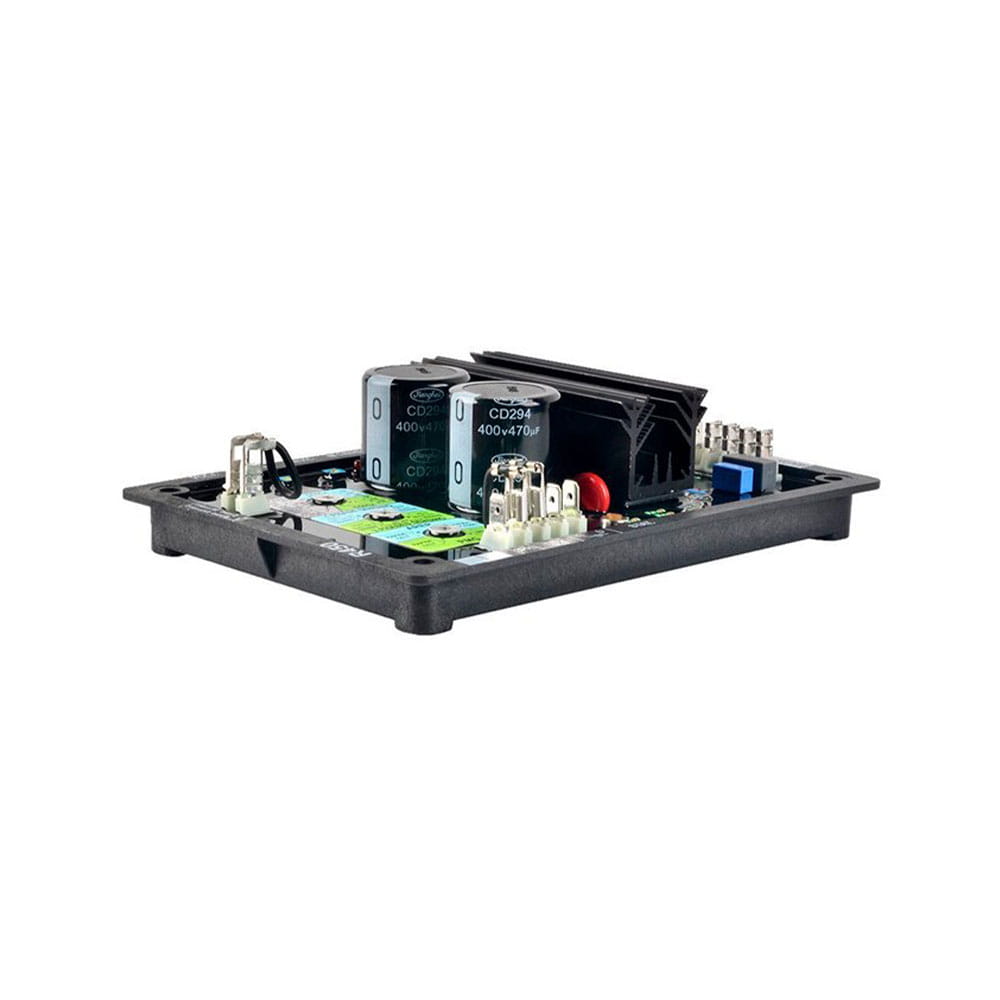

The R450 is an original Leroy Somer Automatic Voltage Regulator (AVR) for brushless generators. It accepts a detection input of 80–350V AC (single-phase) and a power input of 50–270V AC at 50/60 Hz.
The R450 delivers a maximum output of 63V DC at 220V AC input, with a continuous current of 6A. Excitation winding resistance range is 10–100 ohms DC. Voltage regulation accuracy is less than ±1% with 4% motor regulation. Voltage build-up requires a minimum residual voltage of 5V AC at 25 Hz. Maximum power dissipation is 5 watts.
External voltage adjustment of ±7% is available via a 100kΩ trimmer. Under-frequency protection is adjustable in the range of 42–60 Hz. Over-excitation protection activates at 40V to maximum VCC with a delay of 0.3–20 seconds (adjustable). Internal EMI filtering is included. Operating temperature range is -30°C to +65°C.
