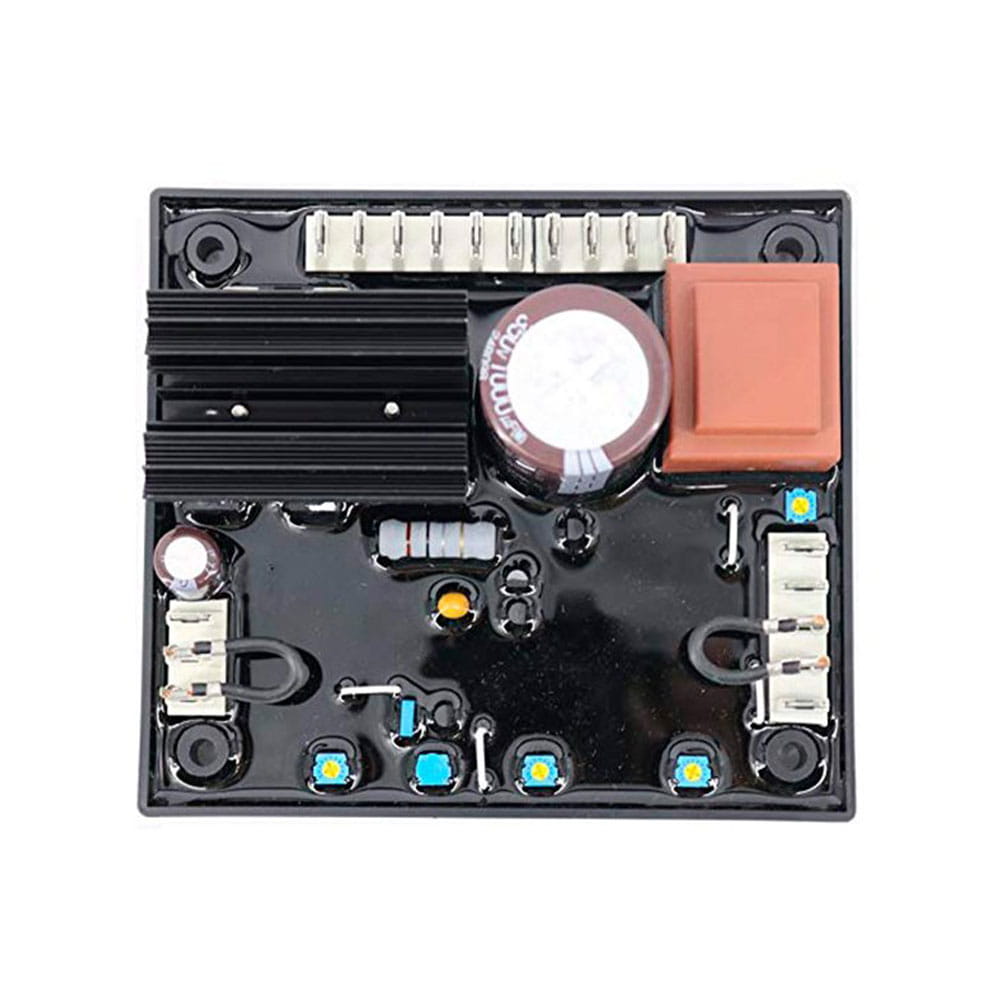

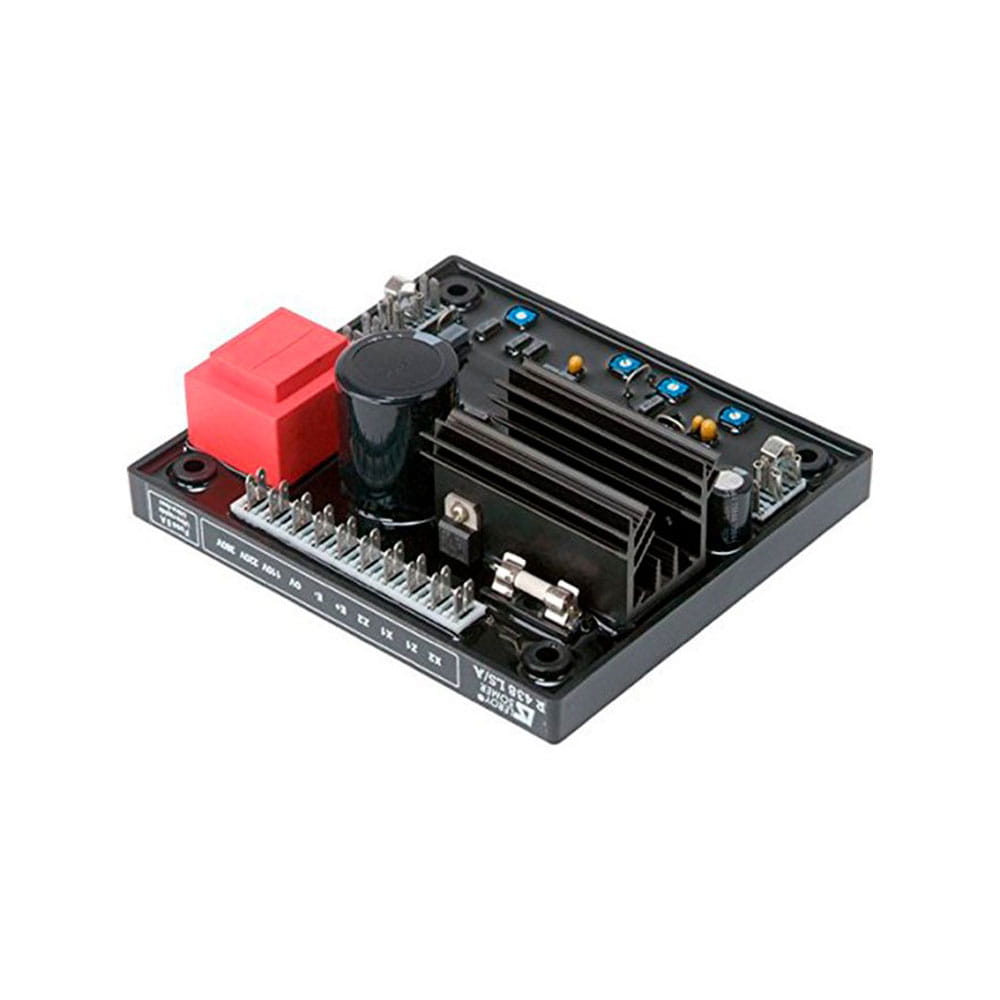

Leroy Somer AVR R438 | Original
Fuse: F1on X1,X2.10A;slow-250V
- Voltage sensing : 5 VA isolated via trans- former • 0-110 V terminals = 95 to 140 V • 0-220 V terminals = 170 to 260 V • 0-380 V terminals = 340 to 520 V for other voltages, a transformer should be used.
- Voltage regulation ± 0.5%
- Normal or rapid response time via jumper ST2 (see below)
- Voltage adjustment via potentiometer P2 or apply a DC voltage of ± 1 V on the terminals of the external potentiometer
- Current sensing: (parallel operation): input S1, S2 intended for 1 C.T. Š 2.5 VA cl1, secondary 1A (optional)
- Quadrature droop adjustment via potentio- meter P1
International orders welcome! Call or email for shipping estimate
The R438 is an Automatic Voltage Regulator (AVR) for Leroy Somer brushless generators, compatible with AREP or PMG excitation systems. It accepts a 3-phase power input of 40–50V AC, with voltage sensing available at three selectable ranges: 95–140V (50/60 Hz), 170–260V (50/60 Hz), or 340–520V (50/60 Hz).
The R438 delivers a maximum output of 160V DC at 120V AC input, with a maximum current of 8A. Minimum field resistance is 15 ohms. Voltage regulation accuracy is ±0.5%. Short circuit capability is 3× rated current for 10 seconds (with AREP or PMG excitation). Rated overload current is 8A for 10 seconds.
Response time is 1 second (normal) or 0.3 seconds (rapid) for a ±20% voltage variation. Remote voltage adjustment range is ±5%. Internal fuse protection (F1 on X1, X2) is rated at 8A slow-blow, 250V. Operating temperature range is -40°C to +70°C.
