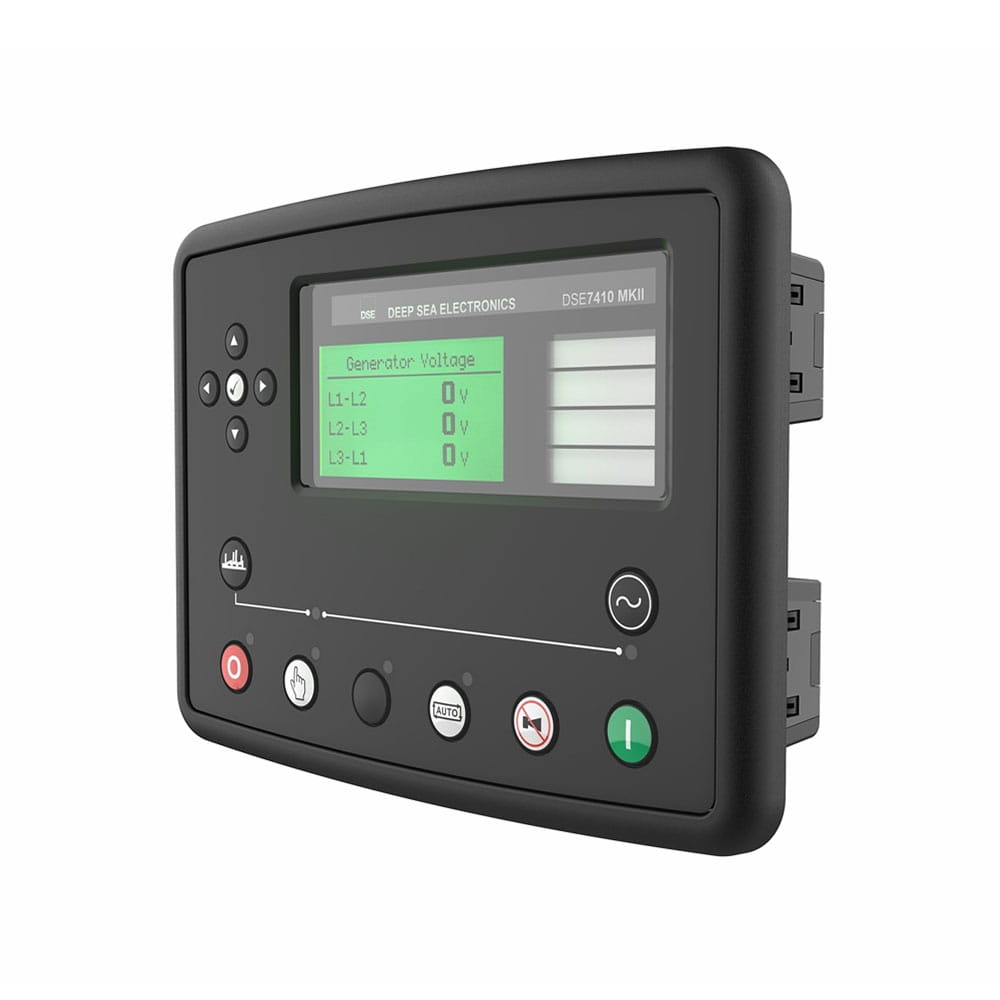

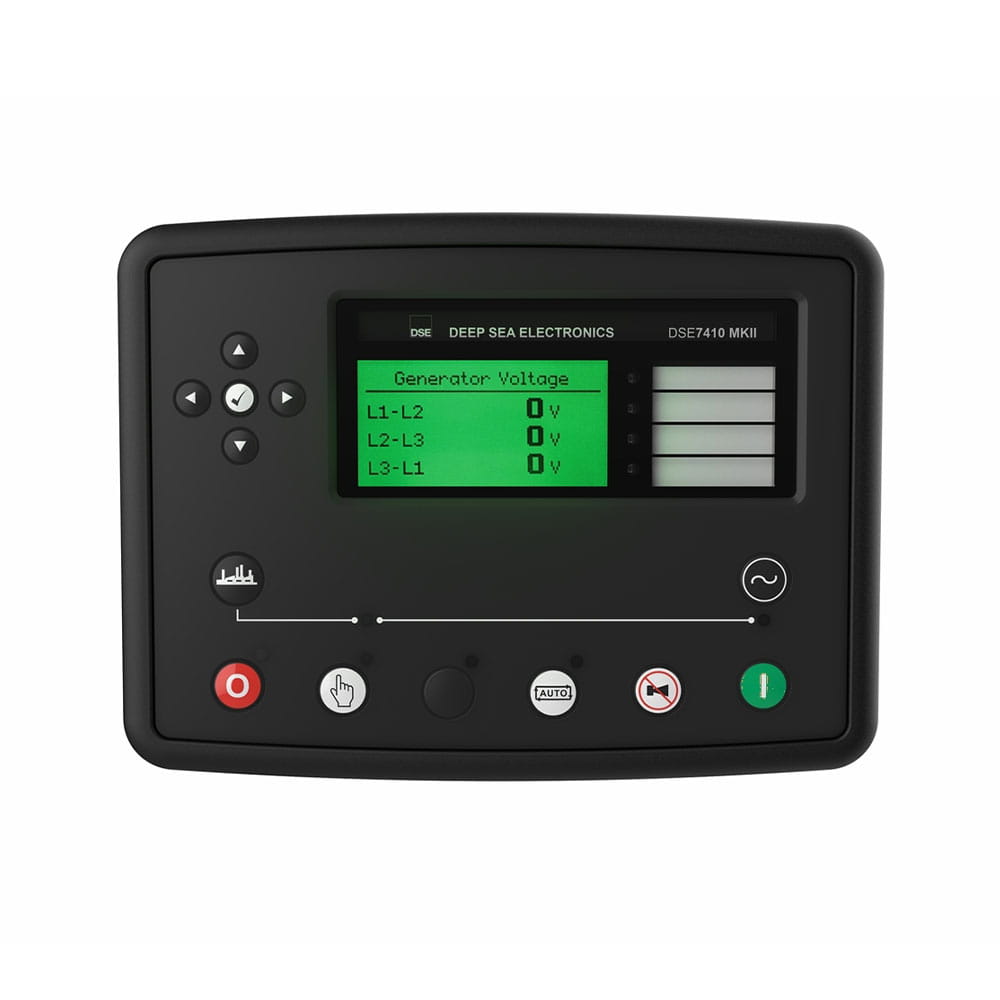

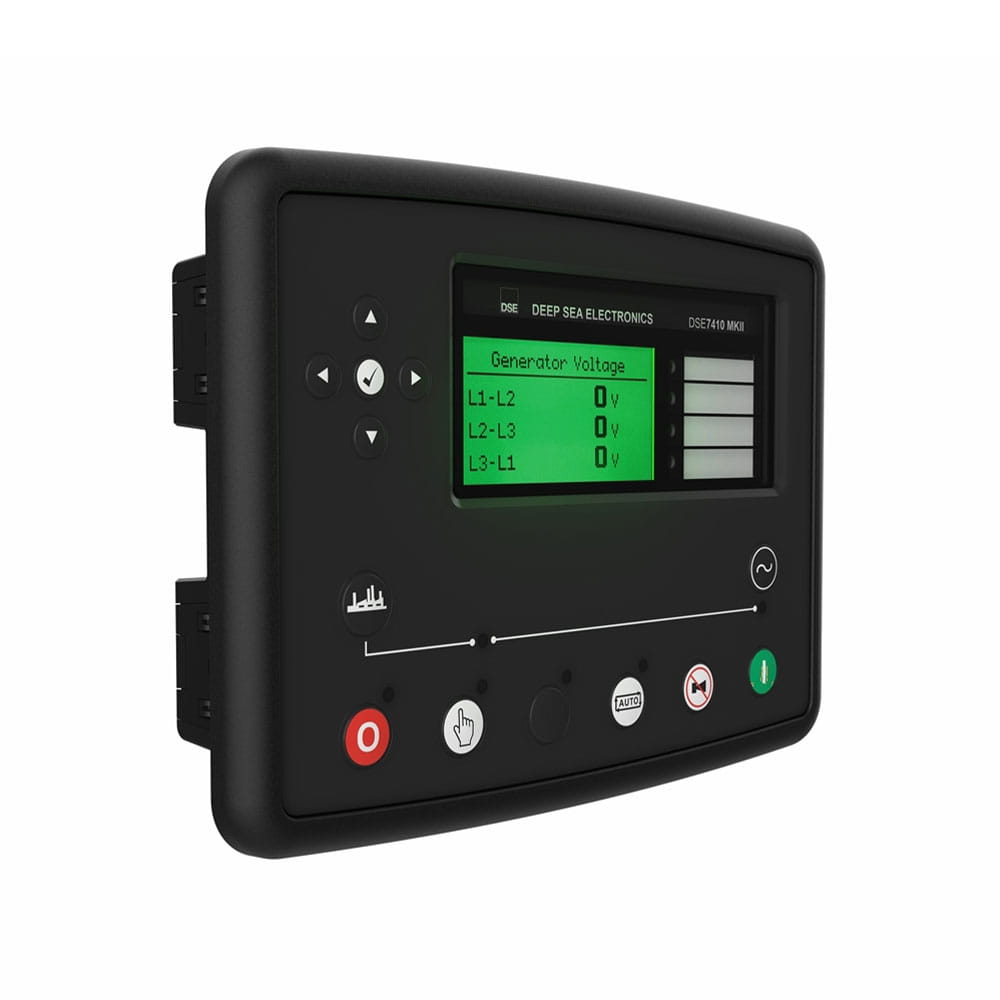

DSE7410 MKII | Auto Start Control Module
- DSENet® Expansion Support
- PC configuration using DSE Configuration Suite
- Multiple language support
- Multiple selectable configurations in one unit to suit changing requirements
- Customisable module power-up & screen saver screens
- 3 phase generator sensing with protection
PRODUCT VARIANTS
7410-03 – 7410 MKII Auto Start Control Module
Call for Quote for international purchases!
$969.99

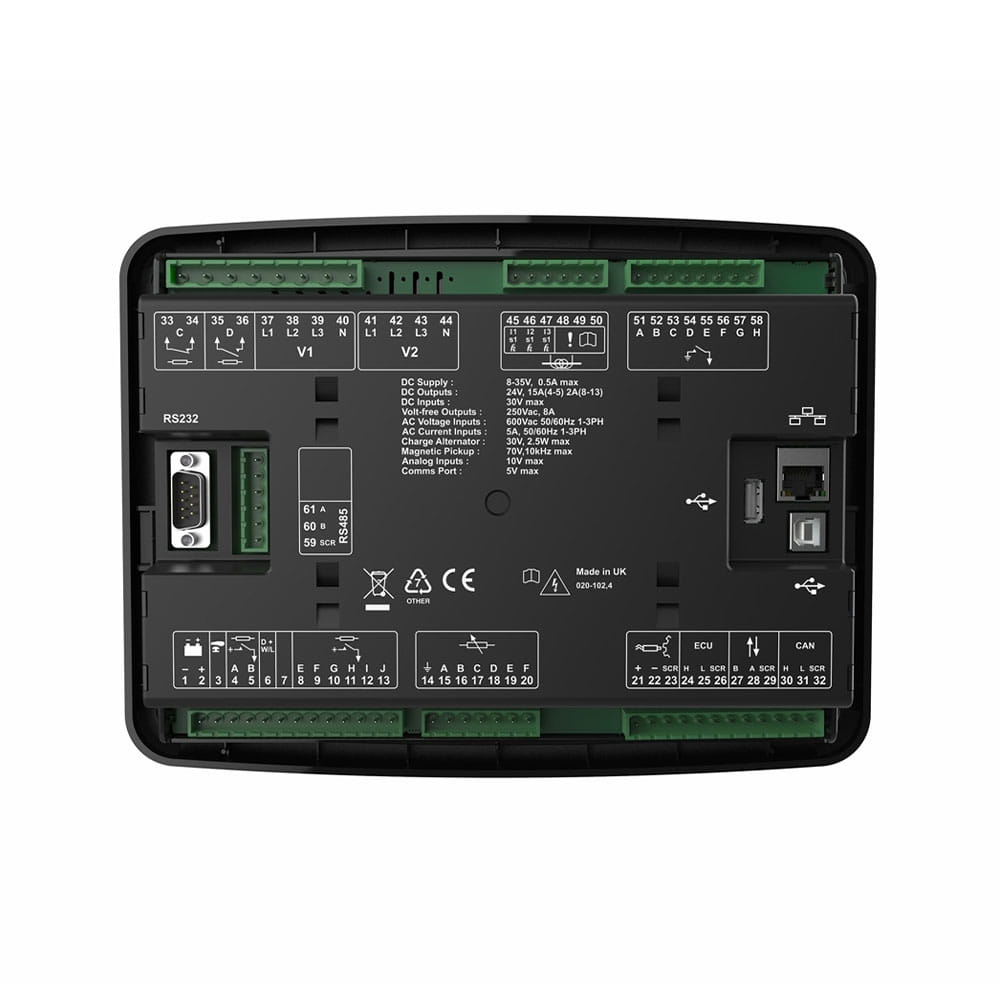

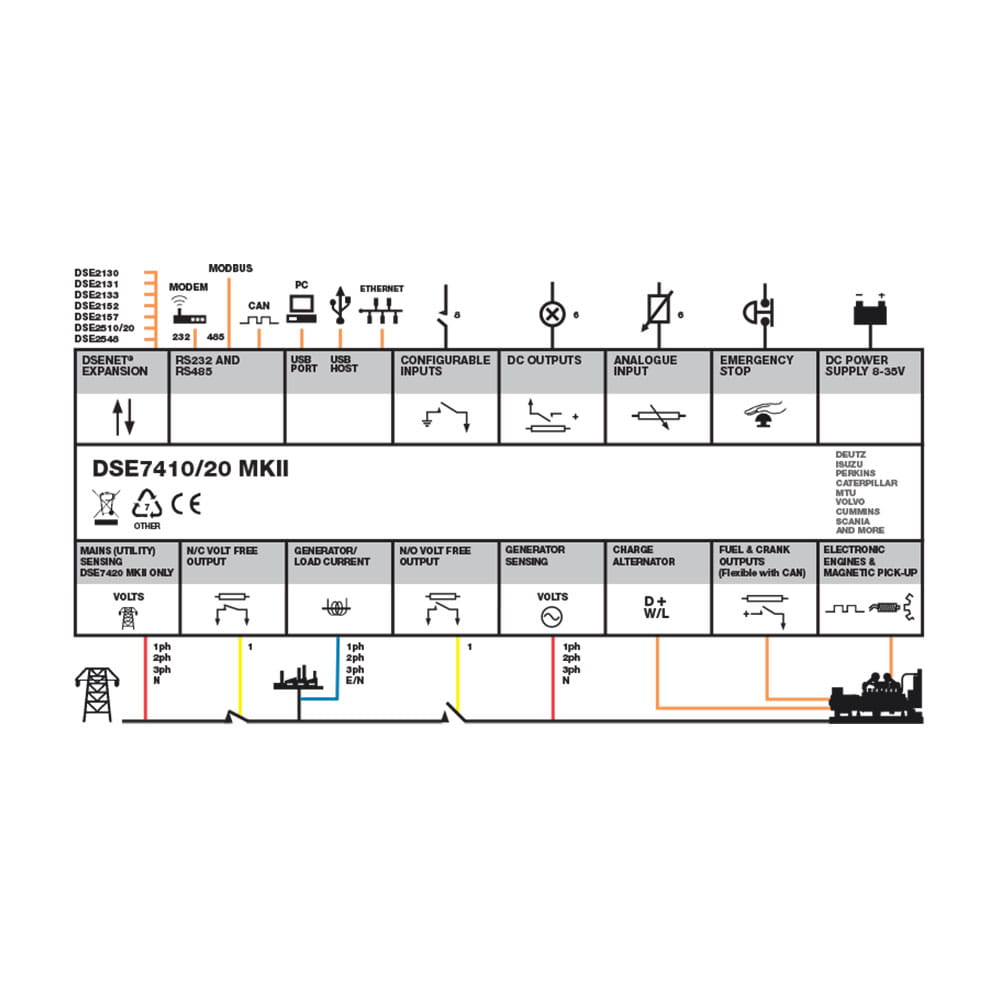

The DSE7410 MKII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module includes USB, RS232, RS485 and Ethernet ports as well as dedicated DSENet® terminals for system expansion.
The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to meet the most demanding industry requirements. The comprehensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE7410 MKII & DSE7420 MKII using RS232 or RS485 communications.
250.0 mm x 189.0 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
PANEL CUTOUT SIZE
220.0 mm x 160.0 mm / 8.66 " x 6.30 "
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
Additional information
| Weight | 2.8 oz |
|---|---|
| Dimensions | 12 × 9 × 4 in |
| BRANDS | DSE |
