DSE2157 | Output Expansion Module
- DIN rail & chassis mount.
- Power on/link lost LED.
- 1 km (0.6 Mile) working range.
- Connect maximum of 10 x DSE2157’s to a single host controller.
- Max of 80 relay contacts.
- Rotary ID switch to select address of DSE2157 to talk with host module when multiple DSE2157 modules are in use.
PRODUCT VARIANTS
2157-01 – 2157 Output Expansion Module
2157-01 – 2157 Output Expansion Module
Call for Quote for international purchases!
$318.00
1 in stock
SKU: 2157-01
Categories: Expansion Modules

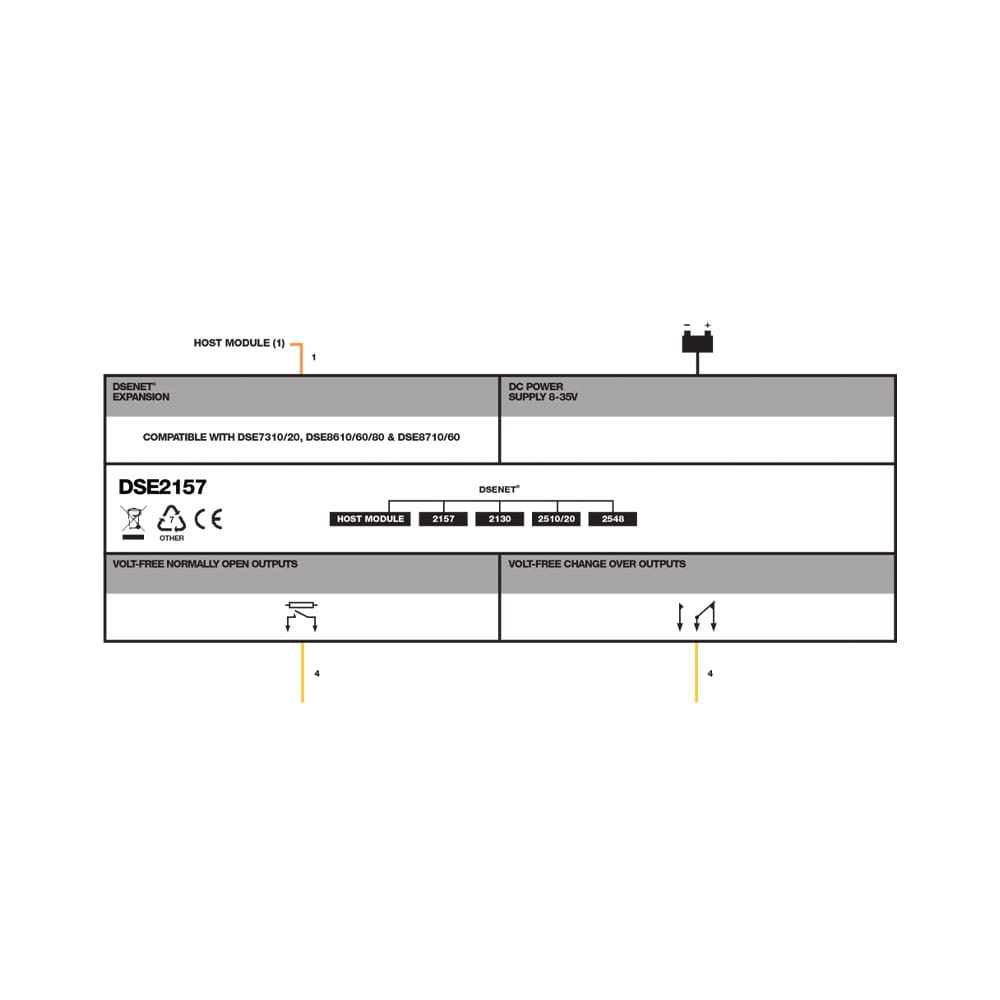

The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options.

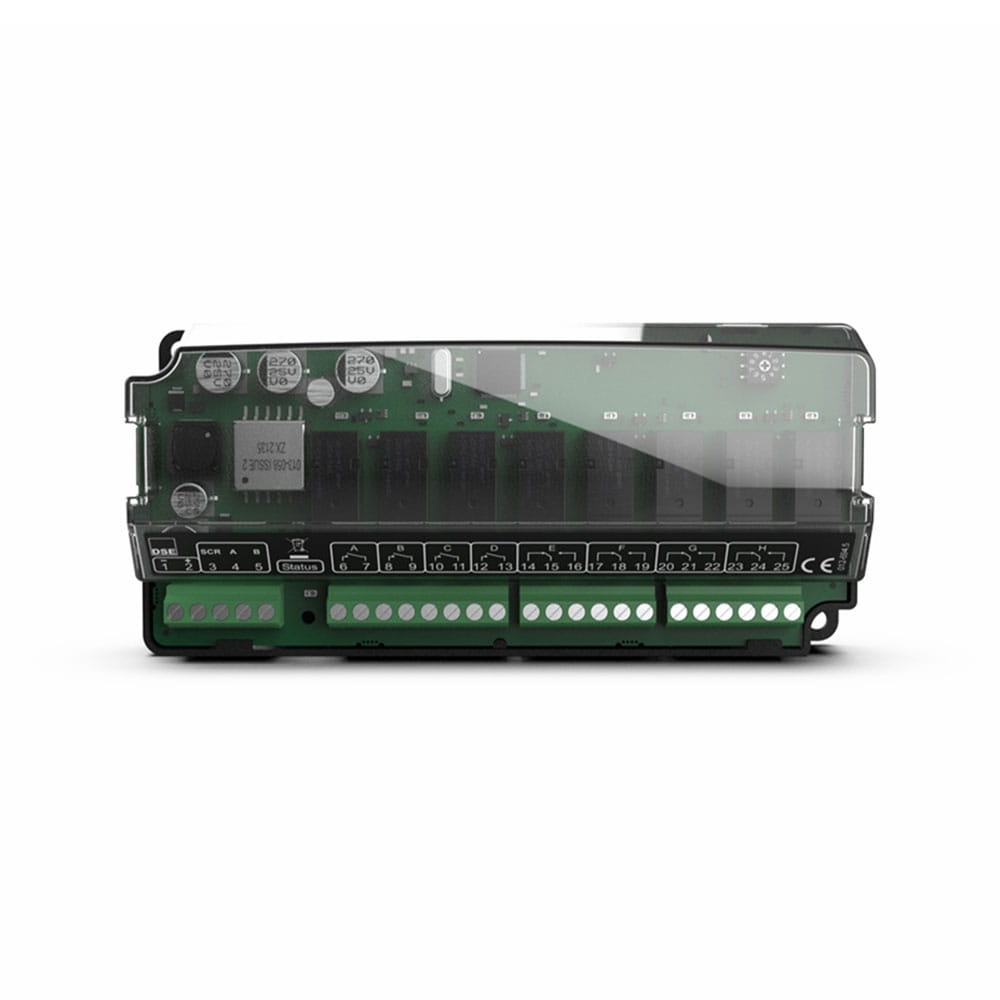

Designed to give greater output flexibility for meeting complex industry generator control specifications. The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.28kg
Additional information
| Weight | 0.9 oz |
|---|---|
| Dimensions | 8 × 8 × 4 in |
| BRANDS | DSE |
