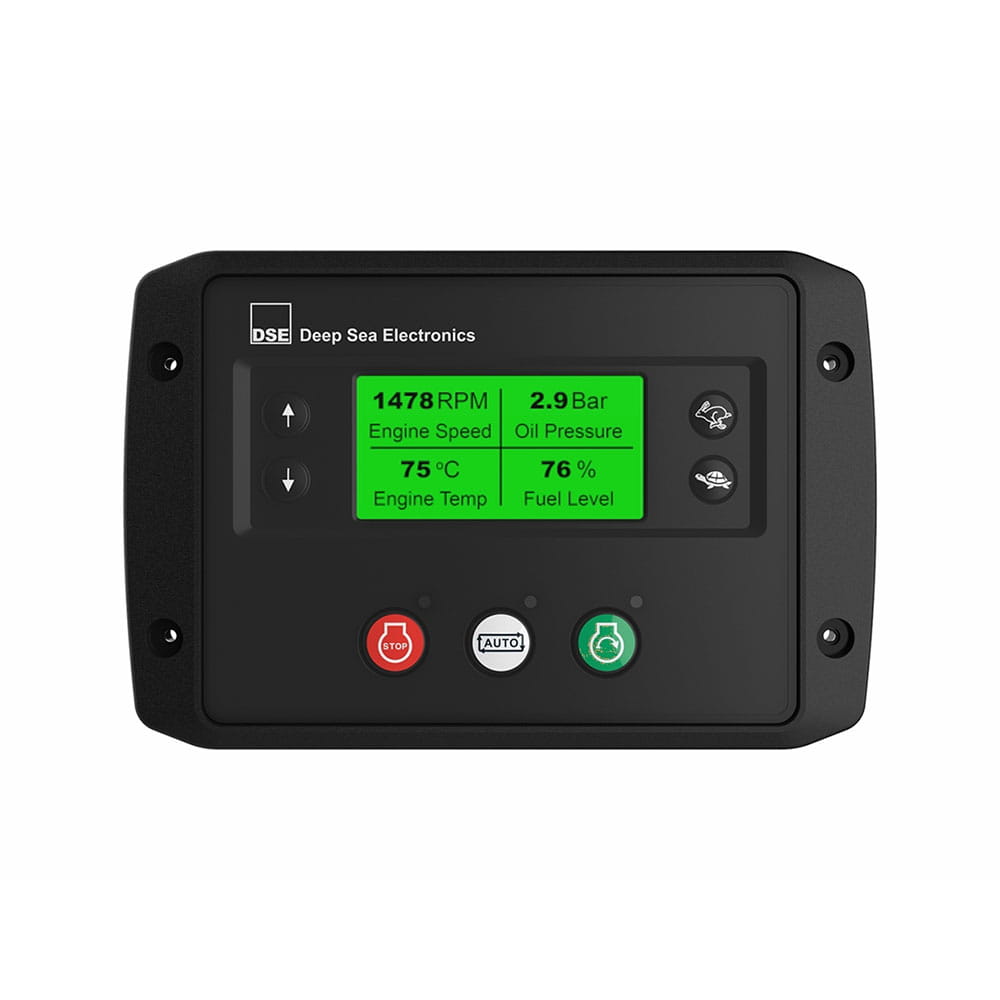

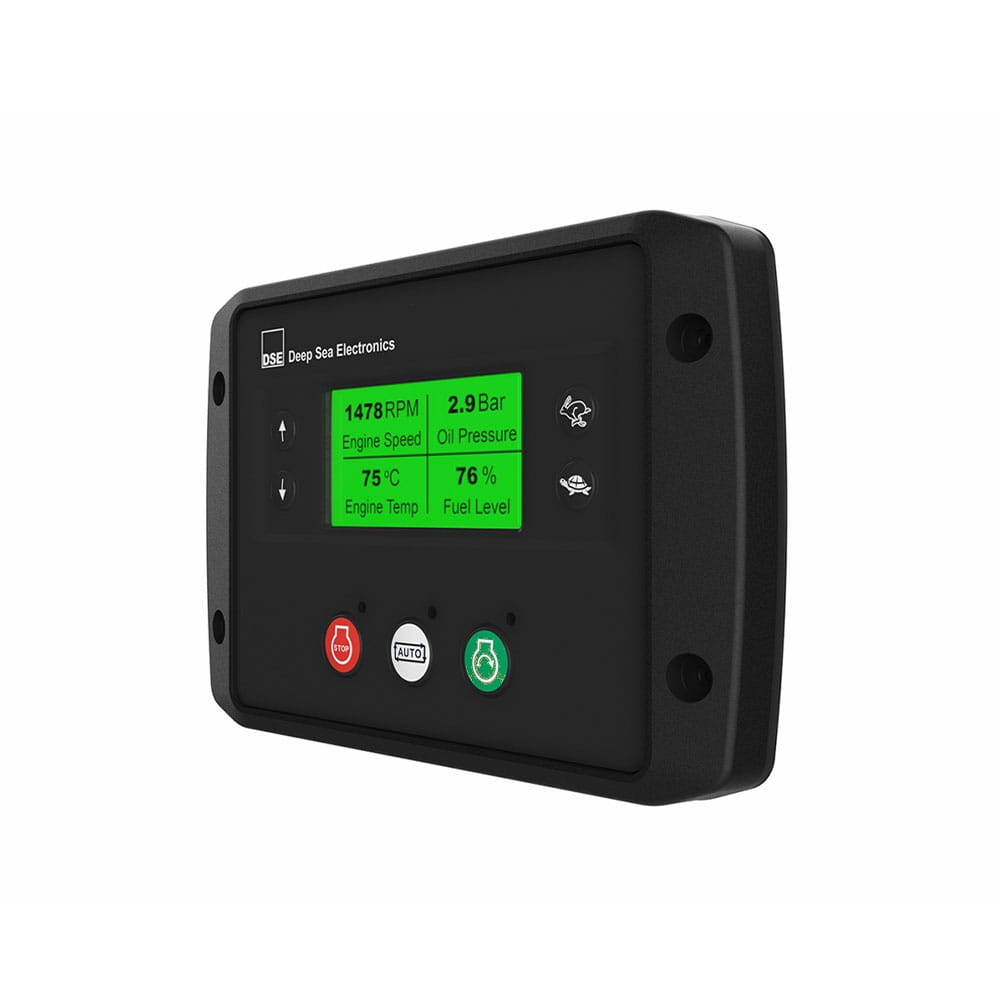

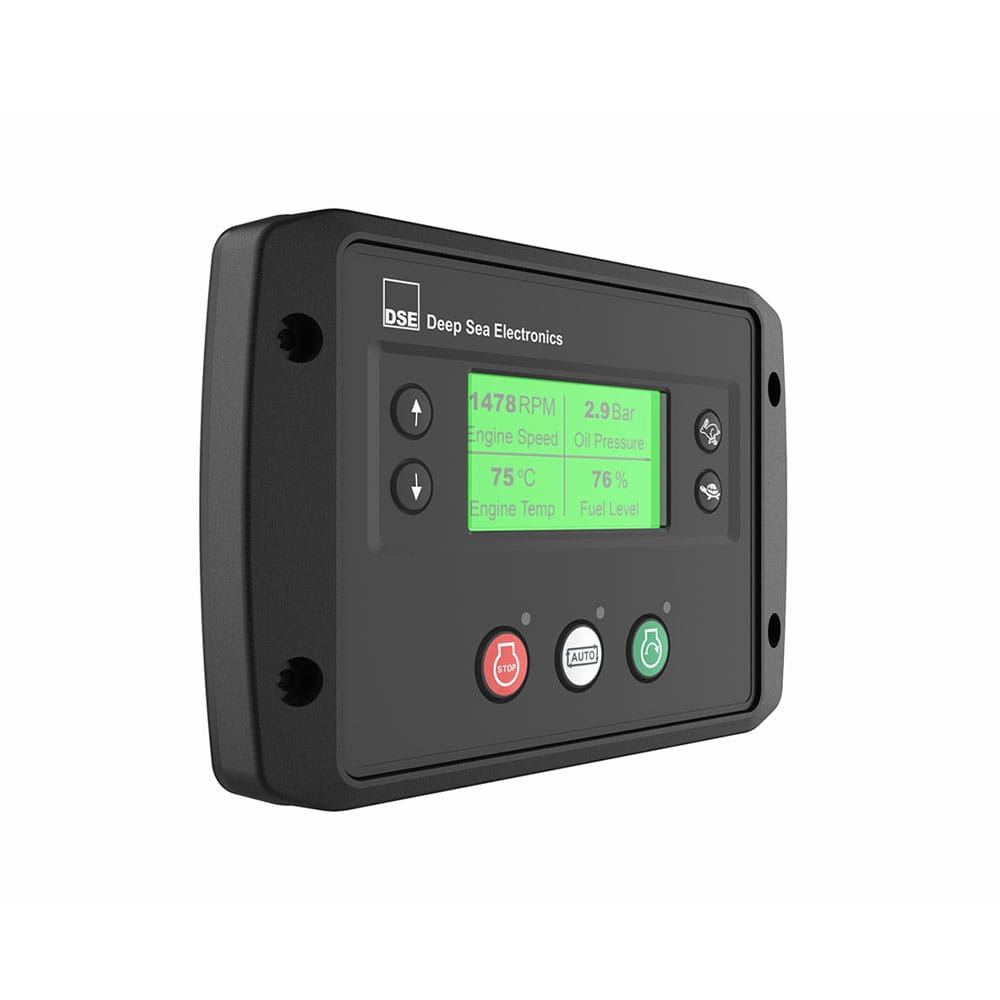

DSEE400 | Engine Only Control Module
- Advanced PLC functionality including multi-purpose PIDs
- Flexible inputs and outputs
- PC configuration using DSE Configuration Suite
- Multiple language support
- Manual front panel and automatic control modes
- Supports connection to DSE battery chargers by RS485 for display of status and instrumentation
Call for Quote for international purchases!
Price range: $758.99 through $2,179.75
The DSEE400 is an easy to use engine controller designed to provide flexible control with built in monitoring and protection. The DSEE400 is compatible with both electronic and mechanical diesel engines. It is fully configurable for a wide range of applications such as engine driven pumps and compressors.
All of the engine control functions, including the engine start, speed and clutch control can be achieved both automatically & manually. The monitoring and configuration of the system variables allows the DSEE400 to start and stop the engine and increase and decrease engine speed as the output demand requires.
On board event logging makes it possible to determine preventative maintenance and improved performance criteria for the machine. The DSE Configuration Suite PC Software is used to easily make adjustments to the operating parameters, sequences, timers and alarms. Reducing valuable development and commissioning time.
OVERALL SIZE
189 mm x 125 mm x 54 mm (7.46 " x 4.94 " x 2.14 ")PANEL CUT OUT
148 mm x 112 mm (5.83 " x 4.41 ")
PRODUCT VARIANTS
E400-01 – E400 Engine Controller
E400-02 – E400 Engine Controller (Htr)
RELATED PARTS

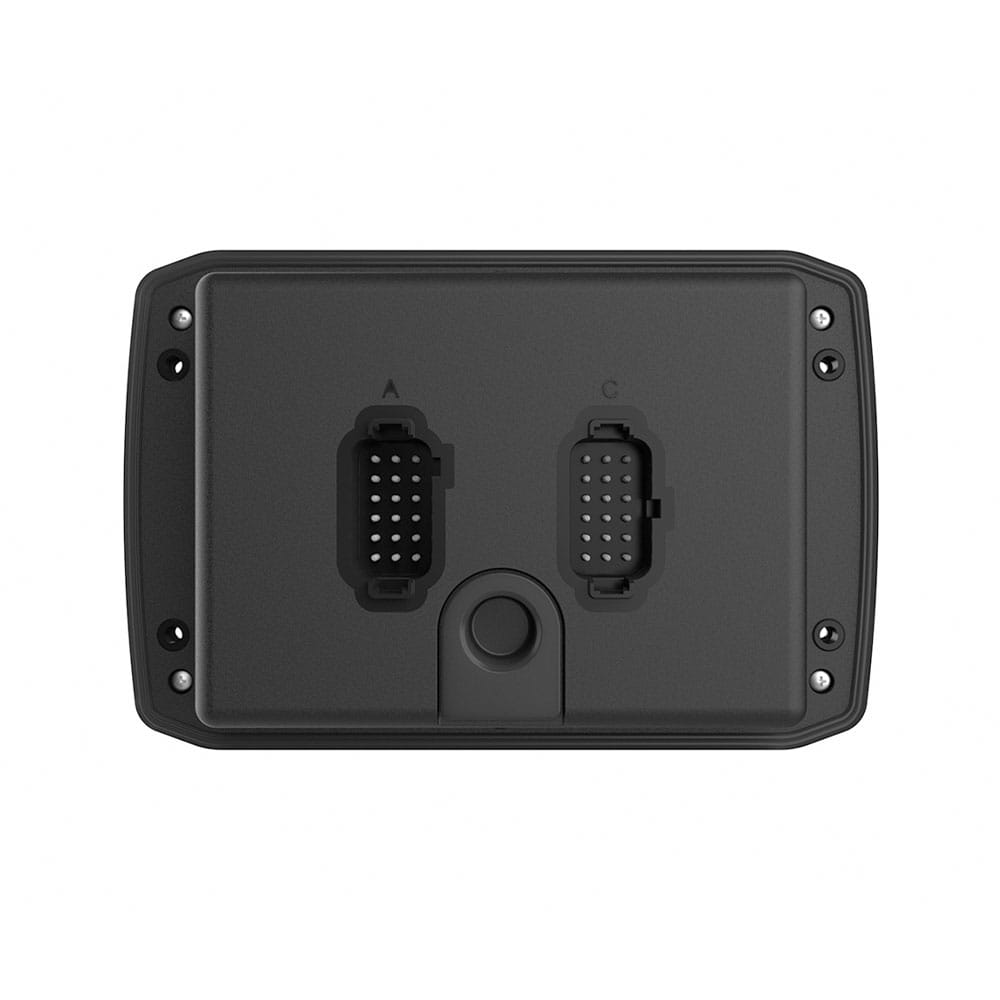

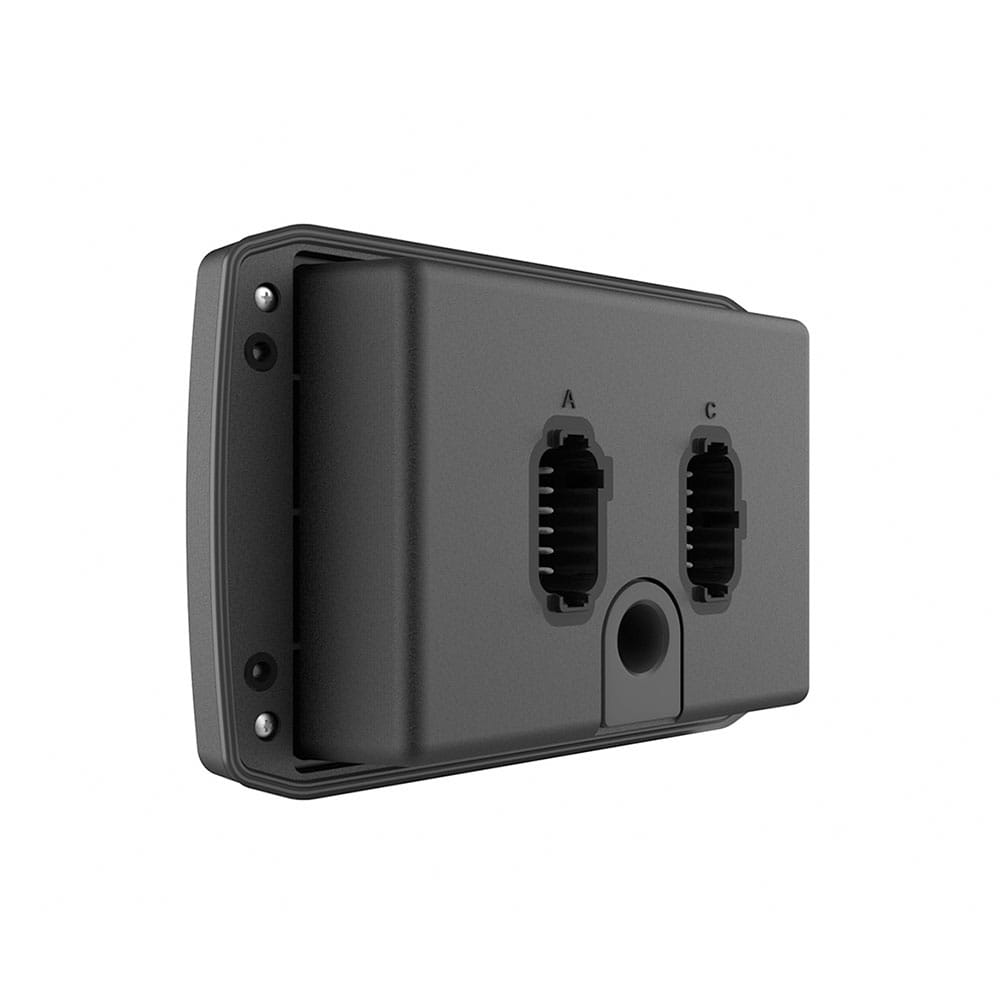

007-850 – Deutsch connector A (DT16-18SA-k004), 18 way complete with pins.
007-851 – Deutsch connector C (DT16-18SC-K004), 18 way complete with pins.
007-852 – Set of 2 harnesses, a & C connectors, pre-wired, 1.2 m cables marked.
Additional information
| Weight | 1.8 oz |
|---|---|
| Dimensions | 12 × 9 × 4 in |
| BRANDS | DSE |
