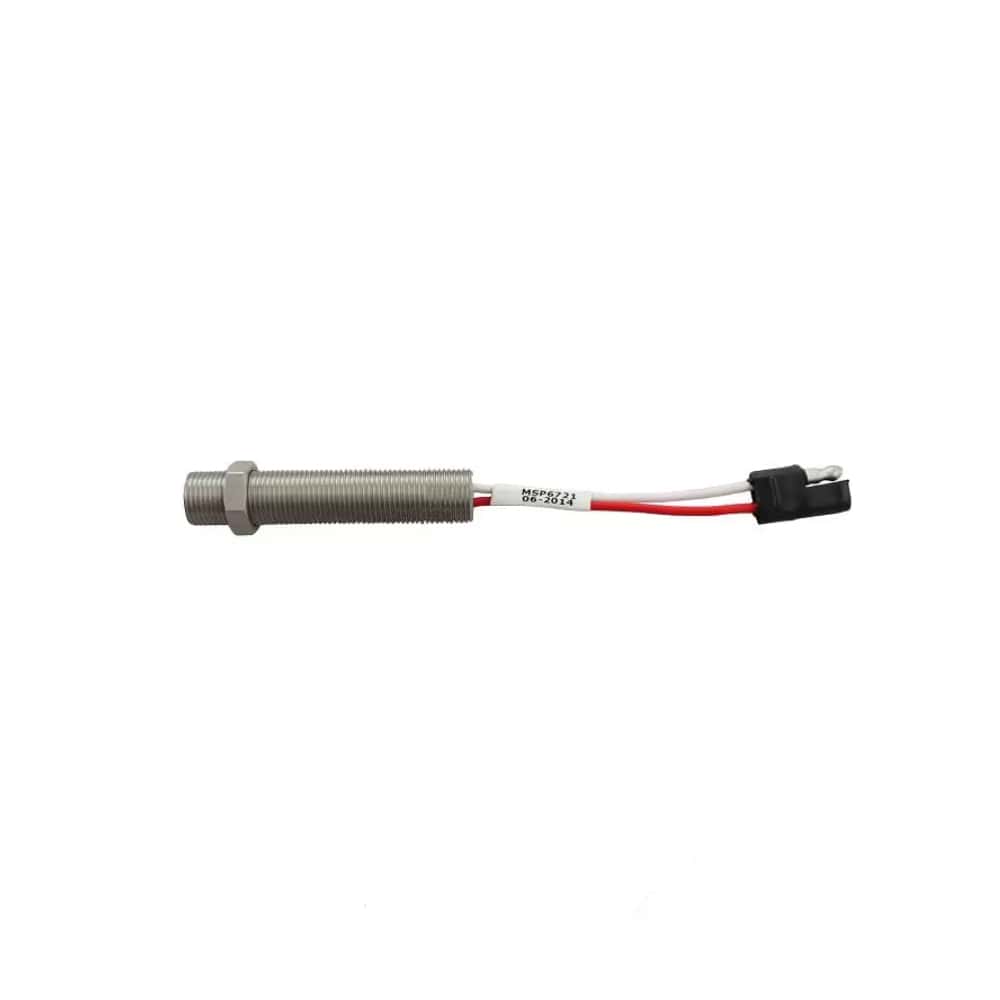

MSP6721 | Magnetic Pickup
3.19 in [81 mm] Thread Length • 2.75 in [70 mm] Harness • Automotive Connector • Stainless
- Same as MSP6721 with Mating Harness CH1206
- -65 ºF to +255 ºF (-54 ºC to +107 ºC) Operating Temperature
- Available for hazardous location installation (not certified)
- Produces electrical frequency
- Requires no energizing circuit from control
- Used on all GAC’s electronic speed controllers
Call for Quote for international purchases!
$137.49
GAC’s Magnetic Speed Sensors are a rugged and economic solution for detecting engine speed. Sturdier than plastic sensors and outperforming semiconductor-type devices at high temperatures, GAC’s epoxy encapsulated sensors are unaffected by dust and dirt. Multiple sizes and customizable configurations are available.
3.19 in [81 mm] Thread Length • 2.75 in [70 mm] Harness • Automotive Connector • Stainless
- Same as MSP6721 with Mating Harness CH1206
- -65 ºF to +255 ºF (-54 ºC to +107 ºC) Operating Temperature
- Available for hazardous location installation (not certified)
- Produces electrical frequency
- Requires no energizing circuit from control
- Used on all GAC’s electronic speed controllers
