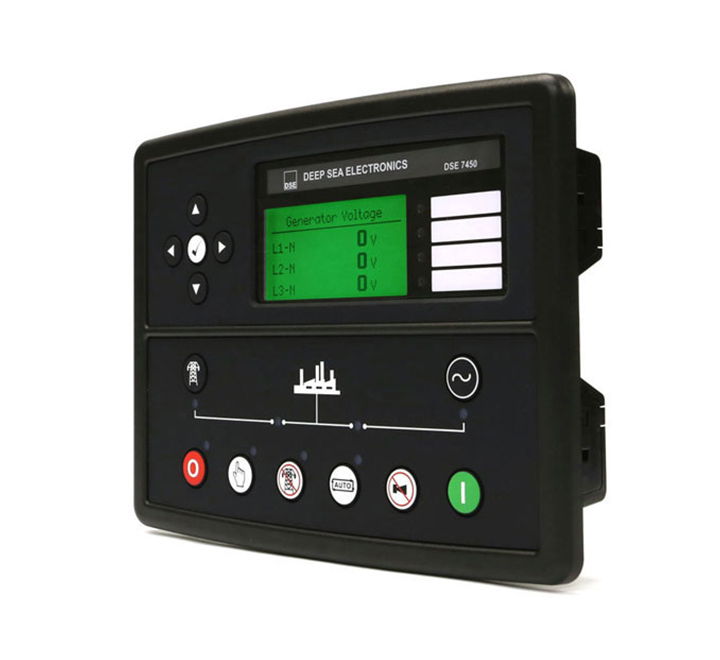

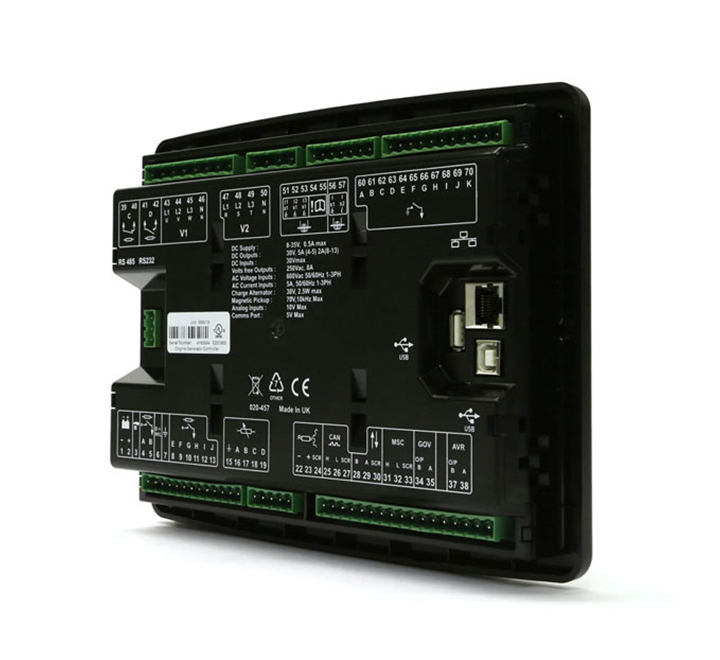

Original DSE7450-02 | DC/Hybrid Generator Control Module
Out of stock
OVERALL SIZE
240 mm x 172 mm x 57 mm (9.4” x 6.8” x 2.2”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7″ x 6.3″)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.92kg
PRODUCT VARIANTS
7450-02 – 7450 DC/Hybrid Generator Control Module
Call for Quote for international purchases!
$808.99
Out of stock
The DSE7450 is a control module designed to control DC/Hybrid generators in supplying both a load and/or the charging of batteries.
Specific attention has been given to ensure this module has the necessary features to be configured for many different and challenging applications. Owing to the large number of monitoring points and the built in programmable logic controller, a wide number of operating modes can be realised. This provides the user with the ultimate flexibility in the engine control of the generator to ensure battery life optimisation, reduce engine maintenance/replacement and fuel usage.
| BRANDS | DSE |
|---|
Technical Specifications
| Key Features | Key Benefits |
| Automatic/manual start with configurable start/stop timers. | Offers flexibility to control the module manually, remotely or on pre-set timers and start/stop according to battery condition. |
| Configurable inputs/outputs (10/8). | Provides multiple installation options. |
| Mains (Utility) failure detection. | Gives full mains (utility) back up. |
| AC/DC voltage measurement. | Provides flexibility for use on AC or DC systems. |
| Battery temperature monitor/charge remaining display/depth of discharge display. | Provides information on battery temperature, charge remaining and depth of discharge. |
| Backed-up real time clock. | Ensures data is not lost when module is disconnected from its power source. |
| Configurable event log (250). | Provides access to historical alarms and operational status. |
| Battery condition automatic start/stop. | Avoids the battery draining completely by starting the generator when the battery needs charging. |
| USB, RS232, RS485, Ethernet and Modbus RTU/TCP communications. | Provides secure and simple off site monitoring. All ports are continuously active. |
Details
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
260 mA at 12 V, 130 mA at 24 V
MAXIMUM STANDBY CURRENT
120 mA at 12 V, 65 mA at 24 V
CHARGE FAIL/EXCITATION RANGE
0 V to 35 V
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
OUTPUTS C & D
8 A AC at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage
GENERATOR
VOLTAGE RANGE
15 V to 150 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAINS (UTILITY)
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK UP
VOLTAGE RANGE
+/- 0.5 V to 70 V
FREQUENCY RANGE
10,000 Hz (max)
