AVR VR6 | Generic Replacement
- K65-12B KATO AVR Power: SHUNT EXCITED
- Sensing input: 180-280 Vac, 50/60 Hz 1 OR 3 phase CT input: 1 or 5 Aac 50/60 Hz
- CT input: 1 or 5 Aac 50/60 Hz ACC input: +/- 3 Vdc. Output: 65 Vdc @ 12 Adc Unit Type: piece
- Input: 180-280 Vac, 50/60 Hz, 1 OR 3 phase PMG EXCITED 63-105 Vac 100/240 Hz 3 phase
- VR6 AVR – Automatic Voltage Regulator – 1 Year Warranty!
$120.99
Compare
SKU: VR6G
Categories: AVR | Generic

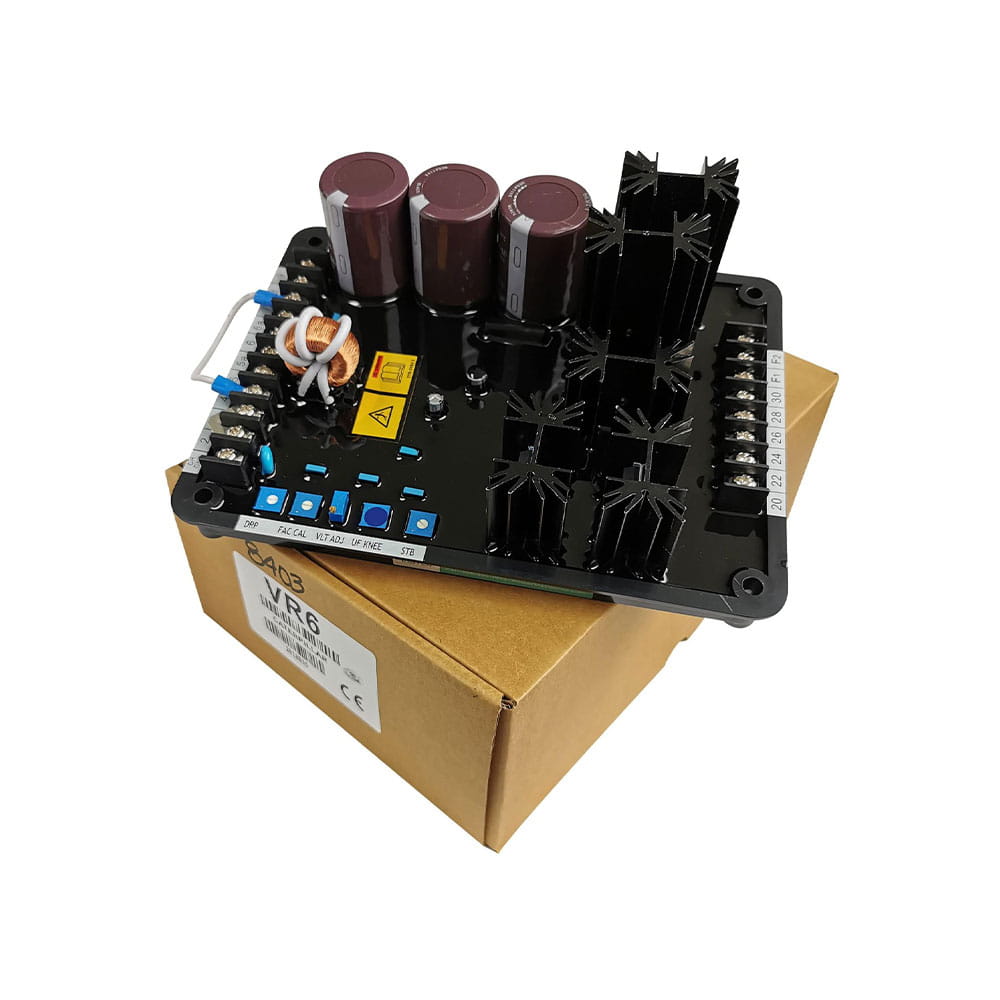

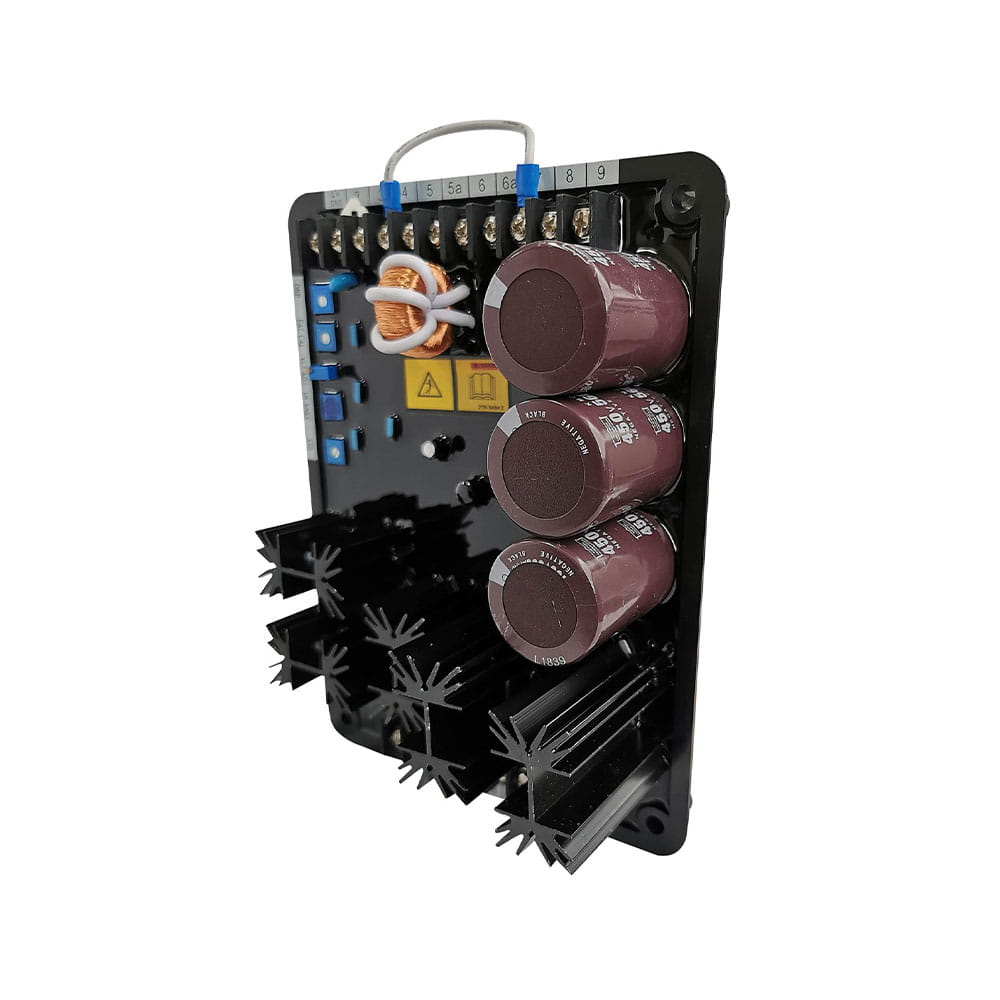

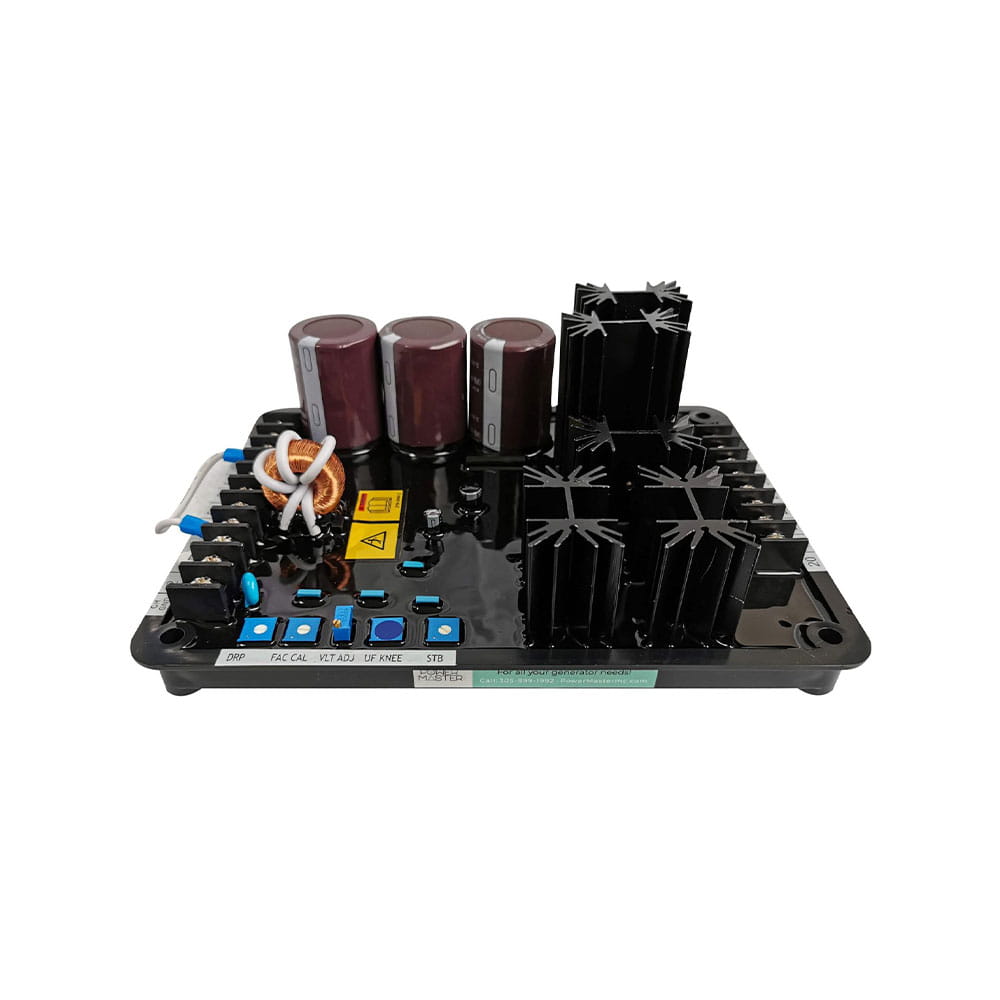

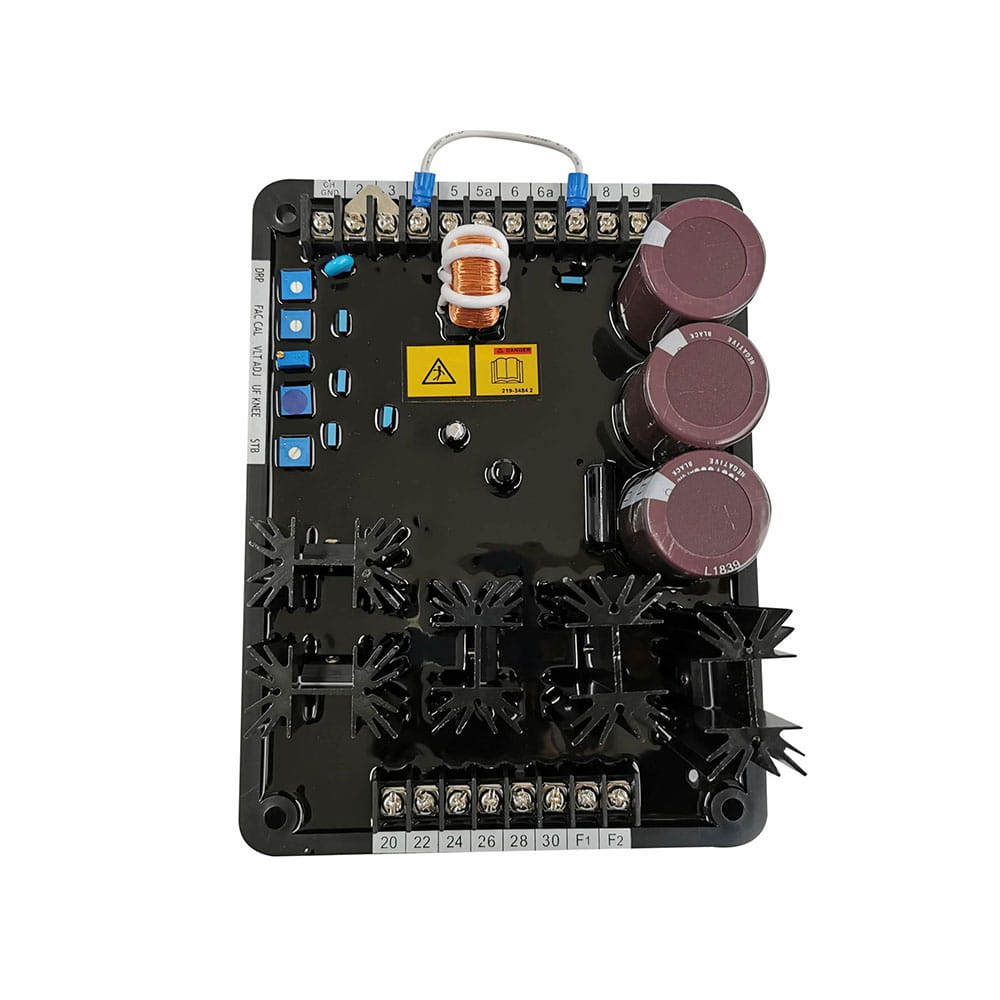

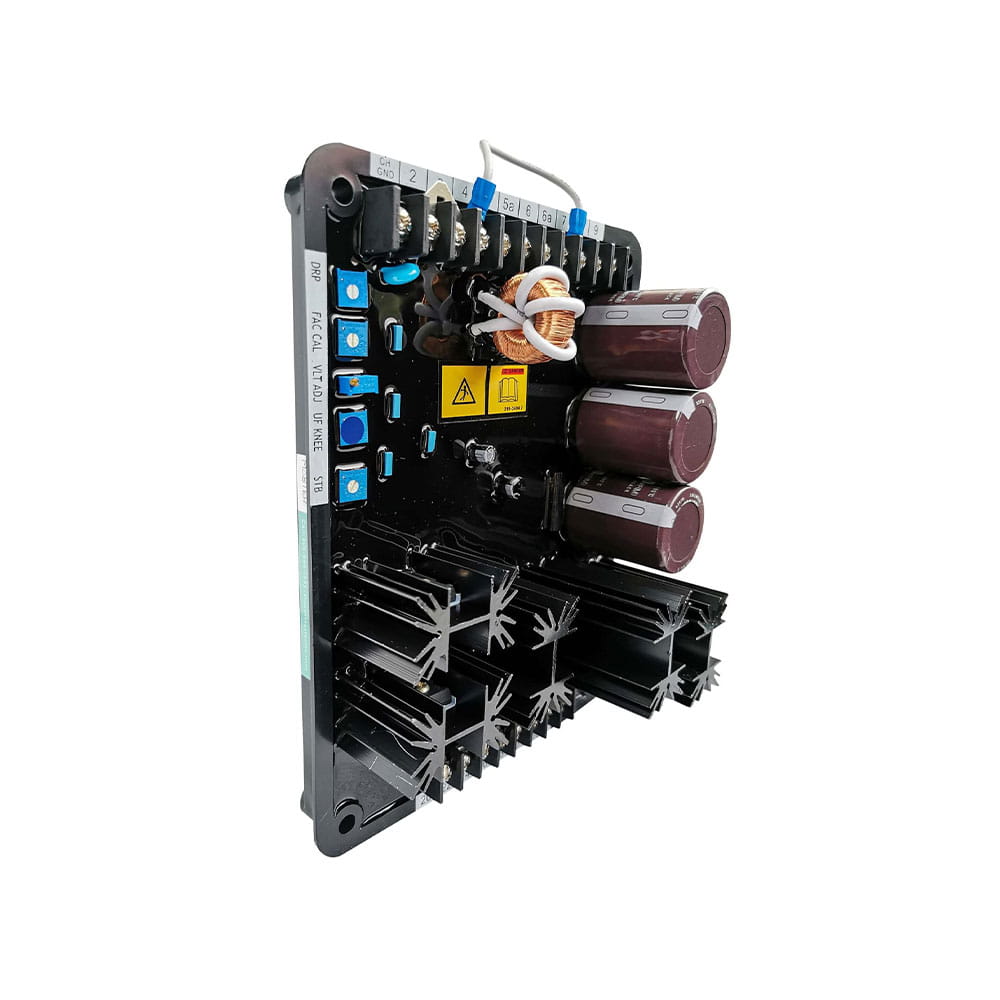

The VR6 is a generic replacement Automatic Voltage Regulator (AVR) contained in an encapsulated plastic case, designed for conventional brushless generators operating at 50 or 60 Hz. It regulates the DC exciter field power by sensing the generator output voltage, converting it to a DC signal, and comparing it against a reference voltage signal.
The VR6 accepts sensing input of 180–280V AC at 50/60 Hz in single-phase or three-phase configuration. CT input supports 1 or 5A AC at 50/60 Hz. ACC input accepts ±3V DC. Output is 65V DC at 12A DC continuous. It supports both shunt-excited and PMG-excited configurations, with PMG input accepting 63–105V AC at 100/240 Hz (three-phase).
Additional information
| Weight | 3.62 oz |
|---|---|
| Dimensions | 12 × 9 × 4 in |
| BRANDS | Power Master Inc. |
