GCU-44 NEXYS Kit | Generator Control Unit

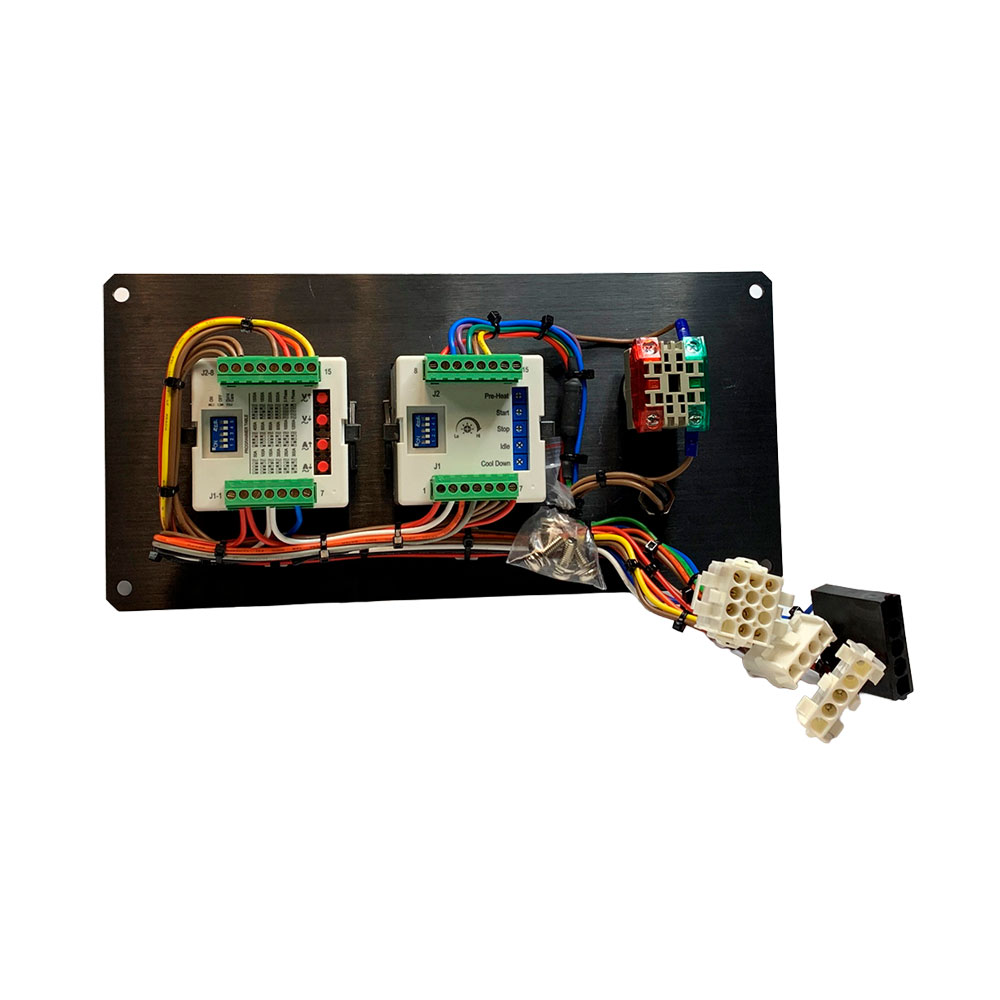

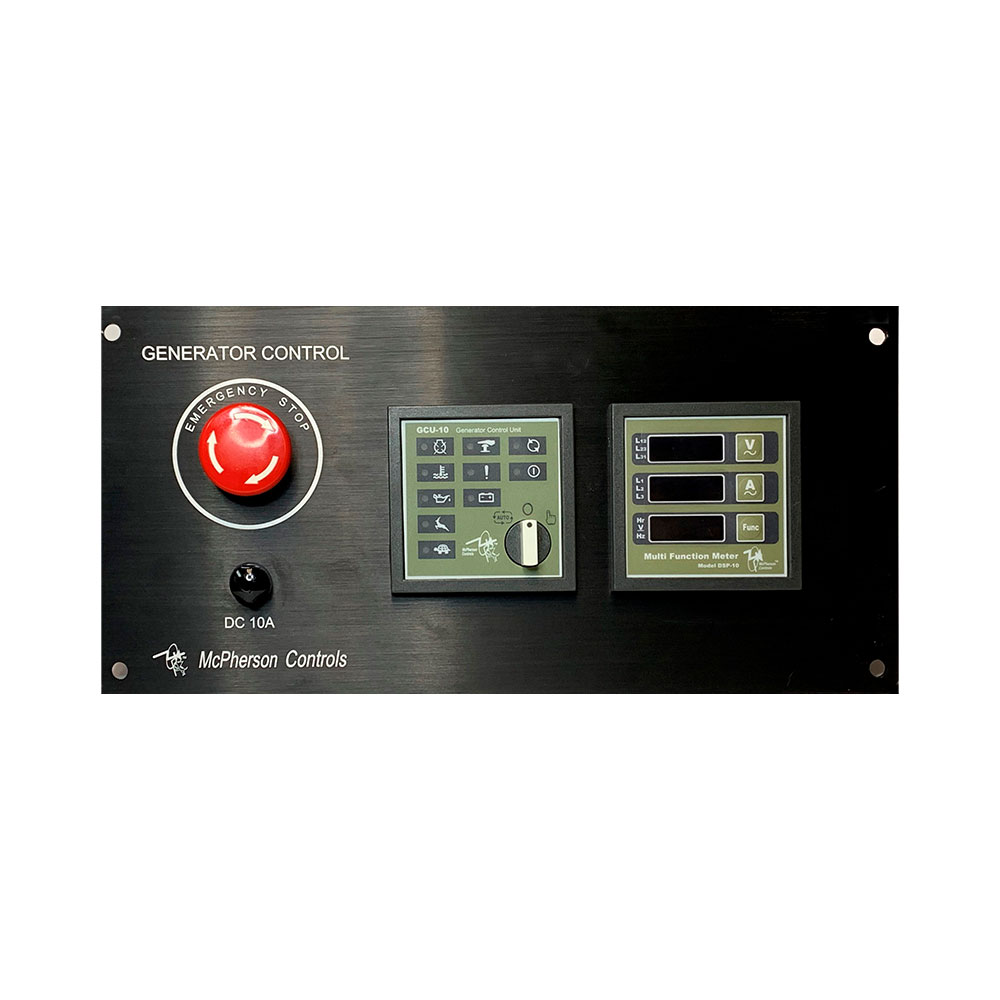

GCU-44 control panel contains GCU-10 automatic engine control unit and DSP-10 Genset multi-function display module, which is specially designed to replace NEXYS controller. Simply connect the corresponding wire of the new harness of the GCU-44 to the original connector to easily complete the replacement. For detailed functions and settings of GCU-10 and DSP-10, refer to the contents of the user manual below.
Compare
International orders welcome! Call or email for shipping estimate
SKU: GCU-44 NEXYS-Kit
Categories: TS with enclosure
Tags:
Feature:
GCU-10
- Microprocessor Based Design
- Universal LED Graphic Interface, Displays Generator Status and Failures
- Modular Design, Quick Installation
- Programmable Engine & Generator Controls Adapts Easily To Any Type Generator Set.
- Waterproof Front Panel With UV Protection
- Provide IDLE control For Elec. Governors
- Five Adjustable Time Delay Potentiometers
- Five DIP Switches For Specification Setting
DSP-10
- First and only Multi-function Display Module specially designed for generator set
- Three sets four Digits High illumination LED Suitable for Outdoor use
- Microprocessor Based Design
- Full Phase AC Voltage RMS value Display
- Full Phase with Load RMS value Display
- AC Input Frequency Display
- DC Supply Voltage Display
- Engine Operating Time Display
- All values can be programmed according to user’s actual demand to be cyclic displayed
- Compact, Anti-shock, Easy installation
- DIN rail terminal for easy connection
- Four adjustable Voltage and Current Push Buttons
- Five Dip Switches For Specification Setting
Additional information
| BRANDS | Mcpherson Controls |
|---|
