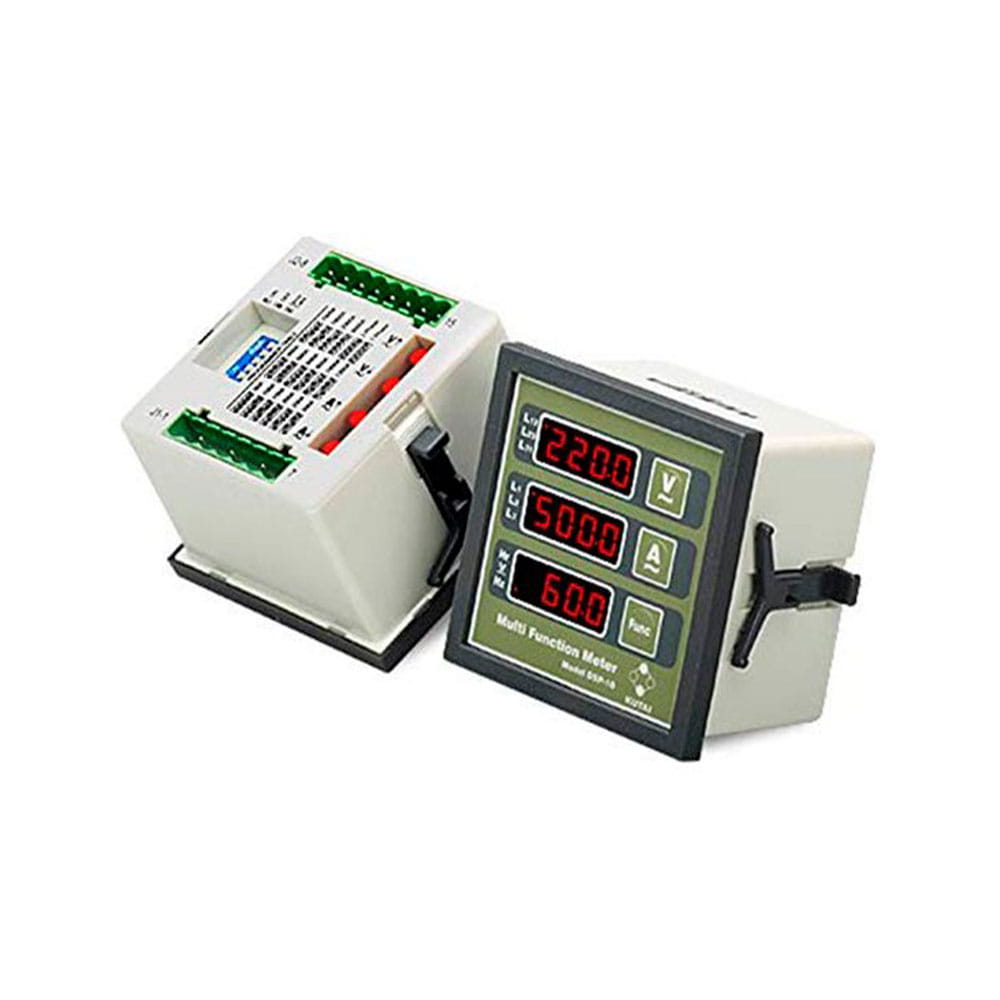

DSP-10 | Generator Control Unit
- First and only Multi-function Display Module specially designed for generator set
- Three sets four Digits High illumination LED Suitable for Outdoor use
- Microprocessor Based Design
- Full Phase AC Voltage RMS value Display
- Full Phase with Load RMS value Display
- AC Input Frequency Display
- DC Supply Voltage Display
- Engine Operating Time Display
- All values can be programmed according to user’s actual demand to be cyclic displayed
- Compact, Anti-shock, Easy installation
- DIN rail terminal for easy connection
- Four adjustable Voltage and Current Push Buttons
- Five Dip Switches For Specification Setting
$234.24
Compare
Para envíos internacionales escríbenos Aquí
SKU: DSP10
Categories: TS with enclosure
The DSP-10 (KP-DSP-10) is a microprocessor-based Simple Display Module designed for generator control systems. Its modular design enables quick installation and features a waterproof front panel with UV protection, making it suitable for outdoor and demanding environments.
The DSP-10 accepts a DC supply of 9–36V DC (12V/24V compatible) with a power consumption of 2 watts. Alternator input range is 10–500V AC at 50/60 Hz. Rated CT capacity requires a burden above 2.5 VA.
Operating temperature range is -20°C to +60°C. Storage temperature range is -35°C to +85°C. Maximum relative humidity is 90%.
Additional information
| BRANDS | Mcpherson Controls |
|---|
