3 pole | 150 Amps | Automatic Transfer | ATS3PC150-22
- Manufactured using UL 94V-0 plastics.
- Electrically operated and mechanically held.
- Coil operating voltage: 110 / 220 Vac +/- 20%.
- Monitor Normal & Standby source OV and UV.
- Compact size, light weight and low power consumption.
- Adjustable time delay in OFF position when transferring.
- Designed for cell-phone repeaters, and many industrial and home ATS applications.
- Electrically or manually operated, mechanically held contacts – (Open Transition) with adjustable time in neutral.
Call for Quote for international purchases!
$1,336.97
The ATS3PC150-22 is an Automatic Transfer Switch (ATS) with integrated controller and enclosure, rated at 150 Amps and 3 poles. Designed for telecom industry installations and residential ATS applications, it features electrically or manually operated, mechanically held contacts with an adjustable time delay in the neutral position.

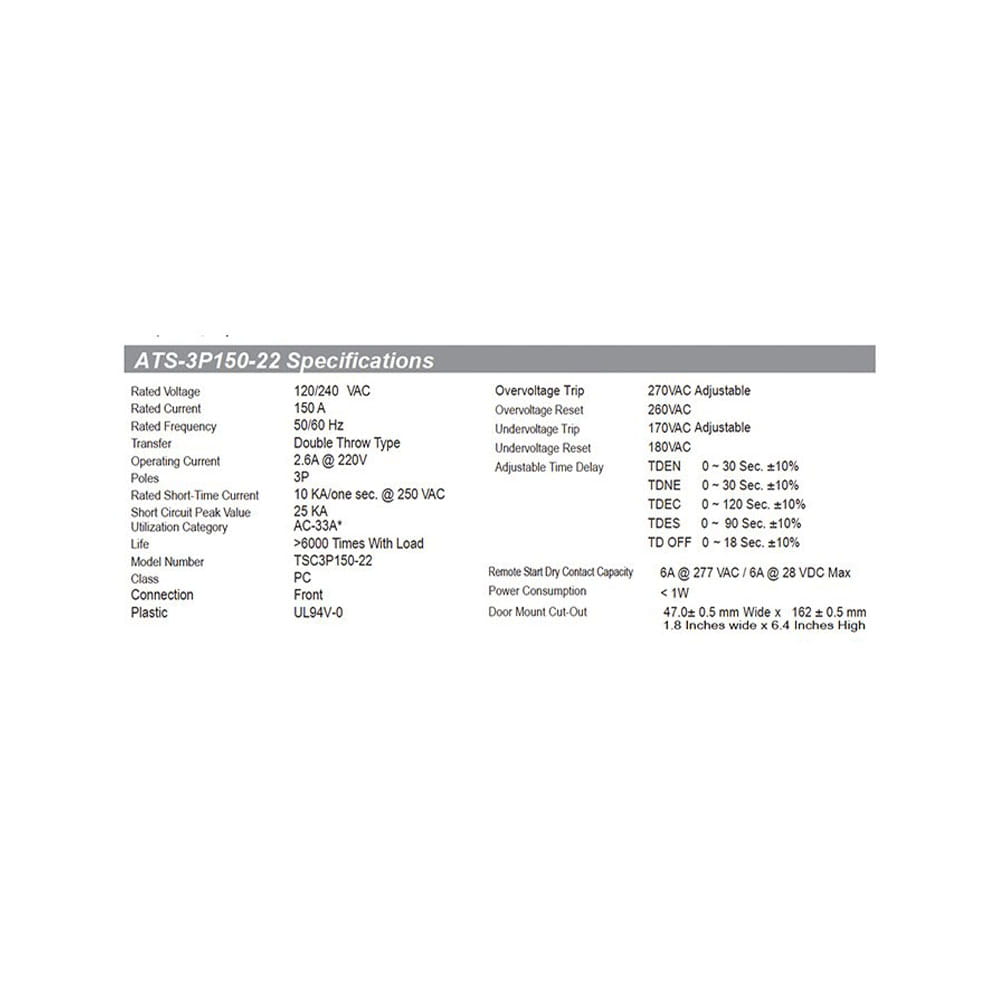

The unit monitors normal and standby sources for over-voltage and under-voltage conditions, with over-voltage trip at 270V AC (adjustable) and reset at 260V AC. Switch type is double-throw with neutral position (ATS Class PC, Utilization Category AC-33A). Rated voltage is 120/240V AC at 50/60 Hz. Operating current is 2.6A at 220V. Rated short-time current is 10 kA for 1 second at 250V AC, with a short circuit peak value of 25 kA. Operation life is over 6,000 switching cycles with load.
Additional information
| BRANDS | Mcpherson Controls |
|---|
