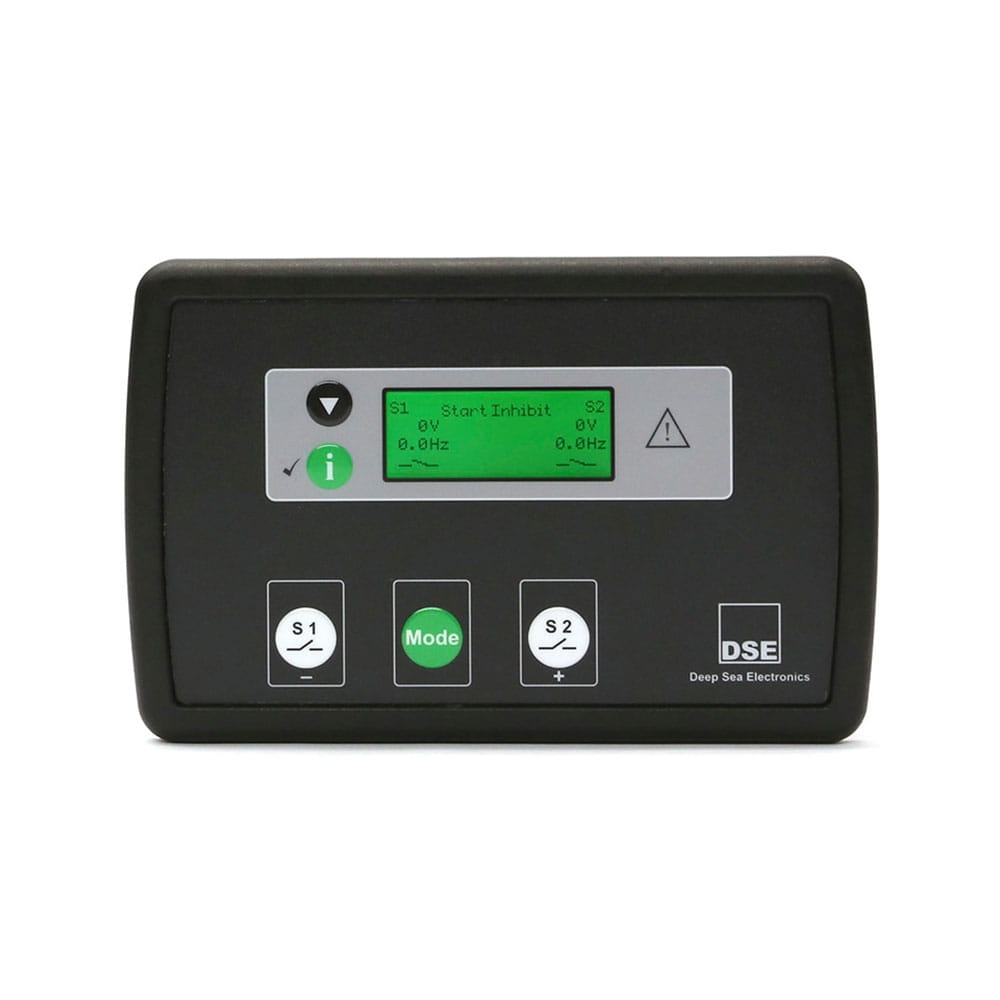

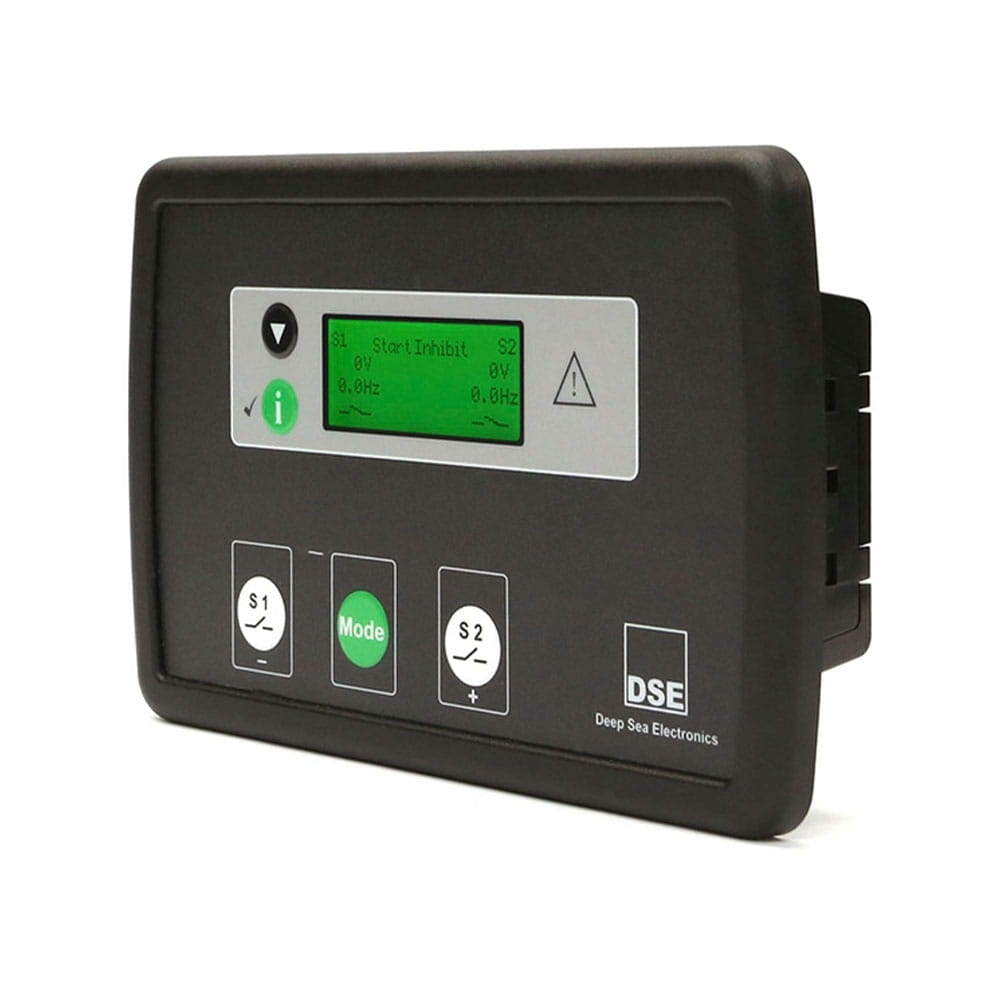

DSE331 | Auto Transfer Switch Control Module
- Automatic switch over between supplies.

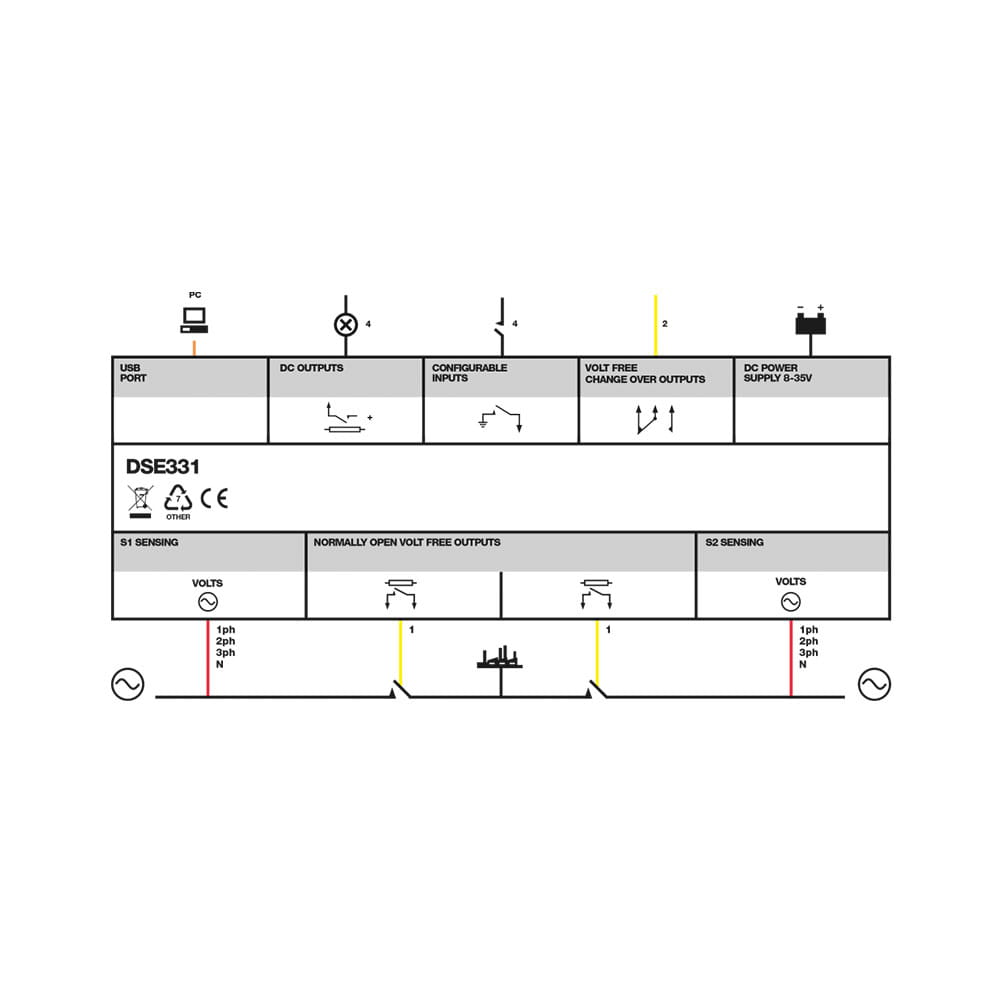

- Configurable inputs/outputs (4/8). 4 configurable volt-free outputs & 4 configurable DC outputs.
- Rotary ATS configuration.
- Source 1/source 2 control.
- Compatible with DSE160 power supply.
- DSE Configuration Suite PC Software.
PRODUCT VARIANTS
0331-01 – 331 Auto Transfer Switch Control Module – 12/24 Volt DC Supply (020-313 gasket not included)
0331-01 – 331 Auto Transfer Switch Control Module – 12/24 Volt DC Supply (020-313 gasket not included)
Call for Quote for international purchases!
$432.99
Compare
SKU: DSE331-01
Categories: Auto Transfer Switch
The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
OVERALL SIZE
180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”)
PANEL CUTOUT SIZE
154 mm x 98 mm (6.0” x 3.9”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.36kg
