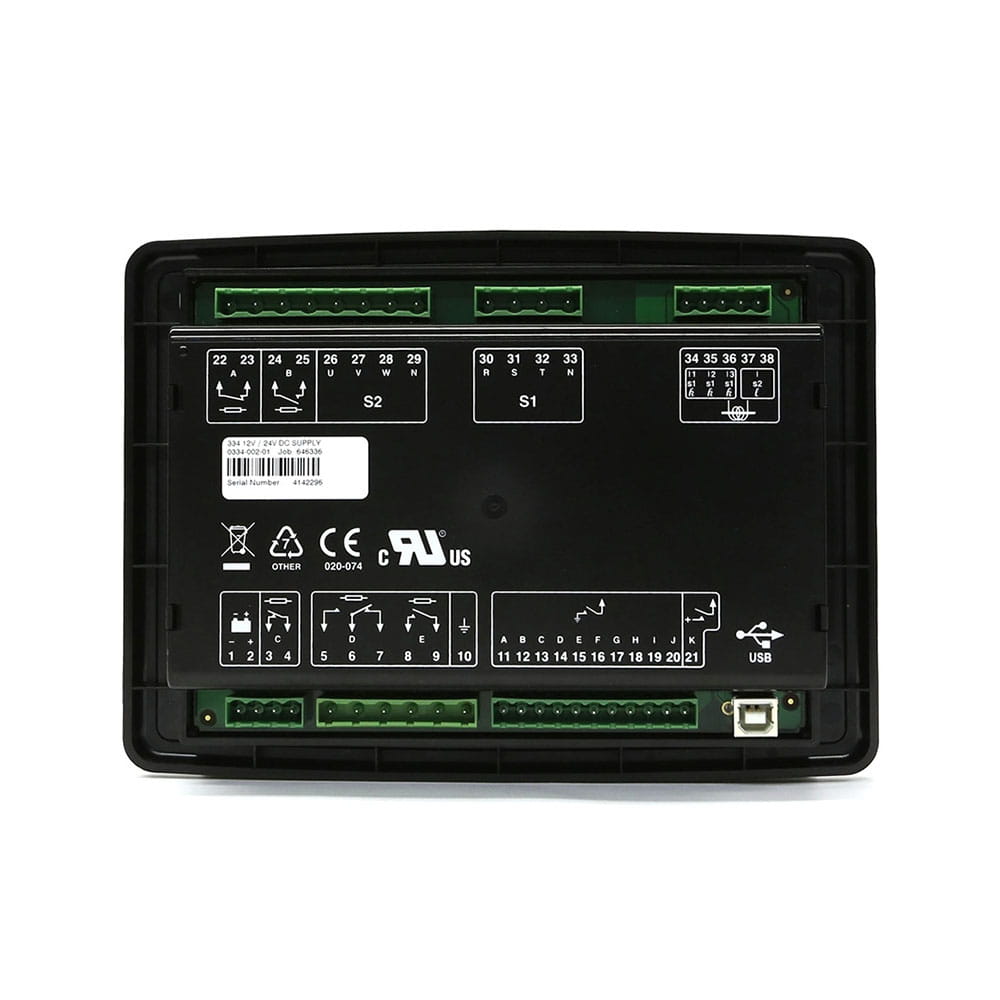

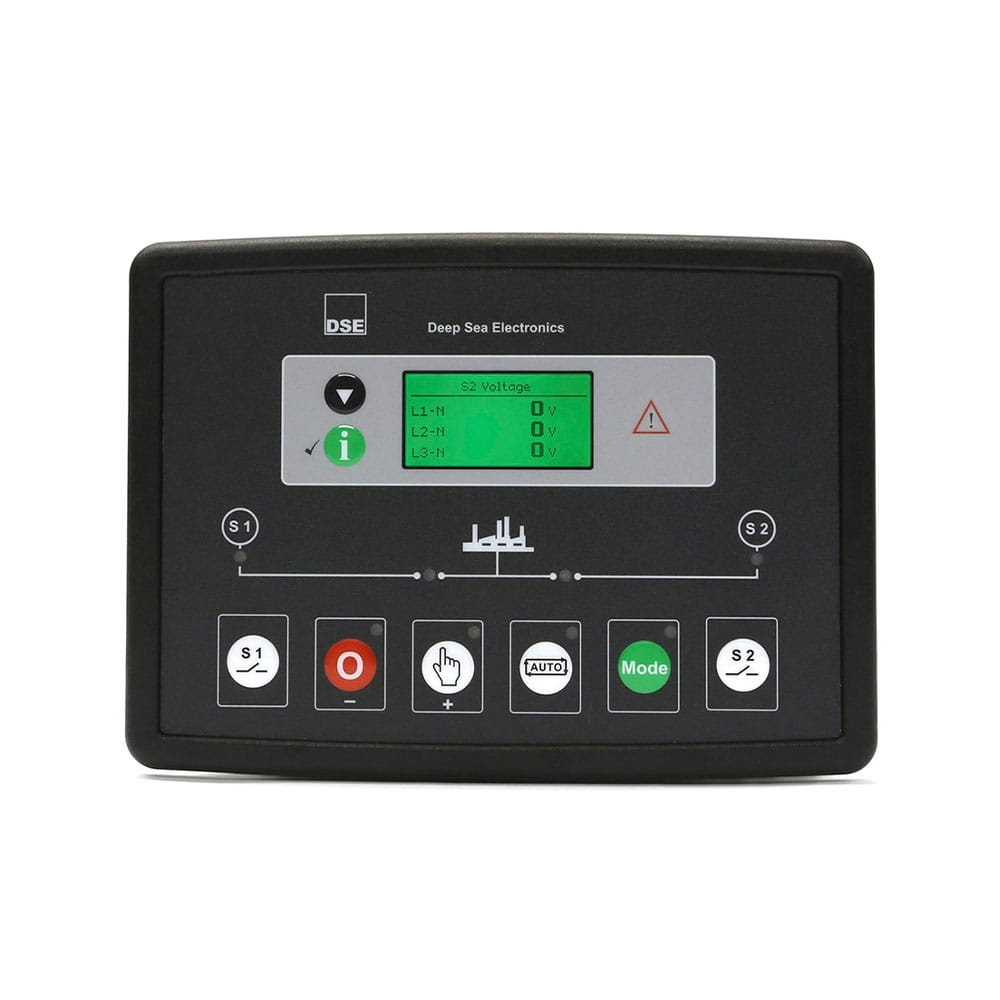

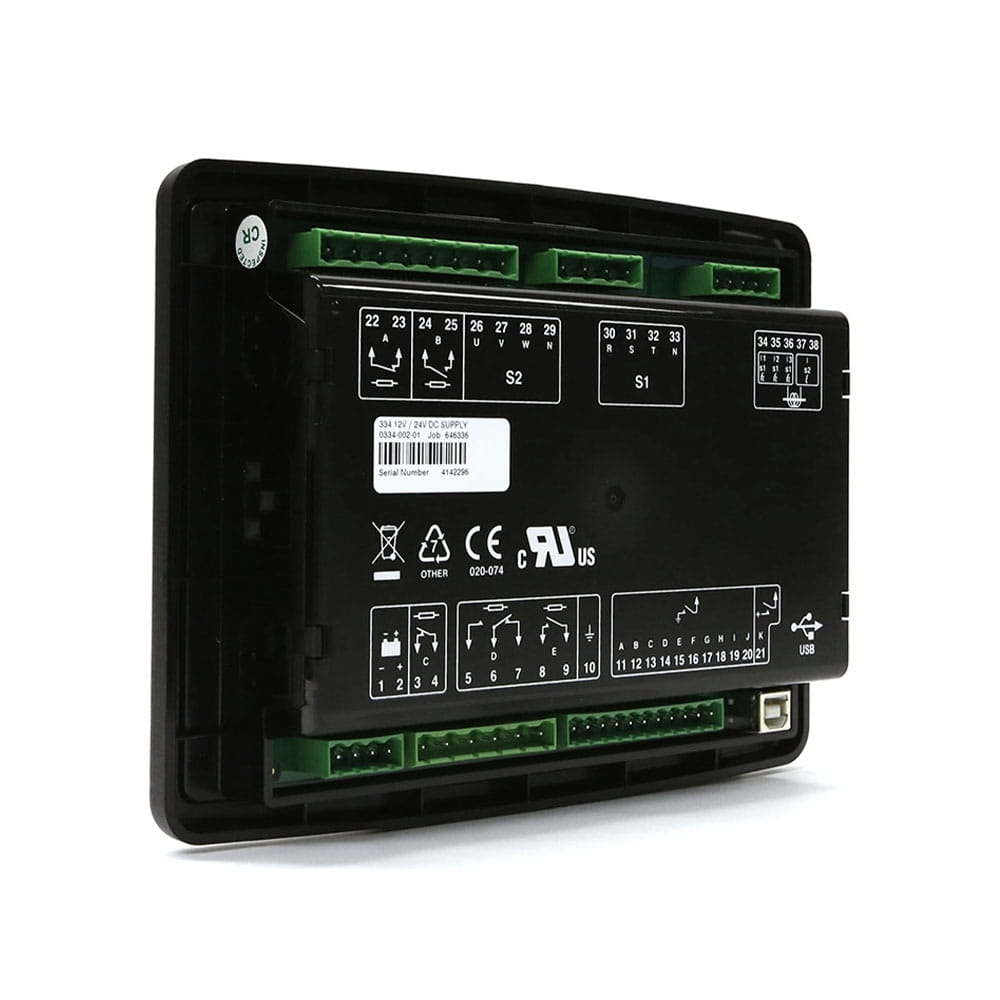

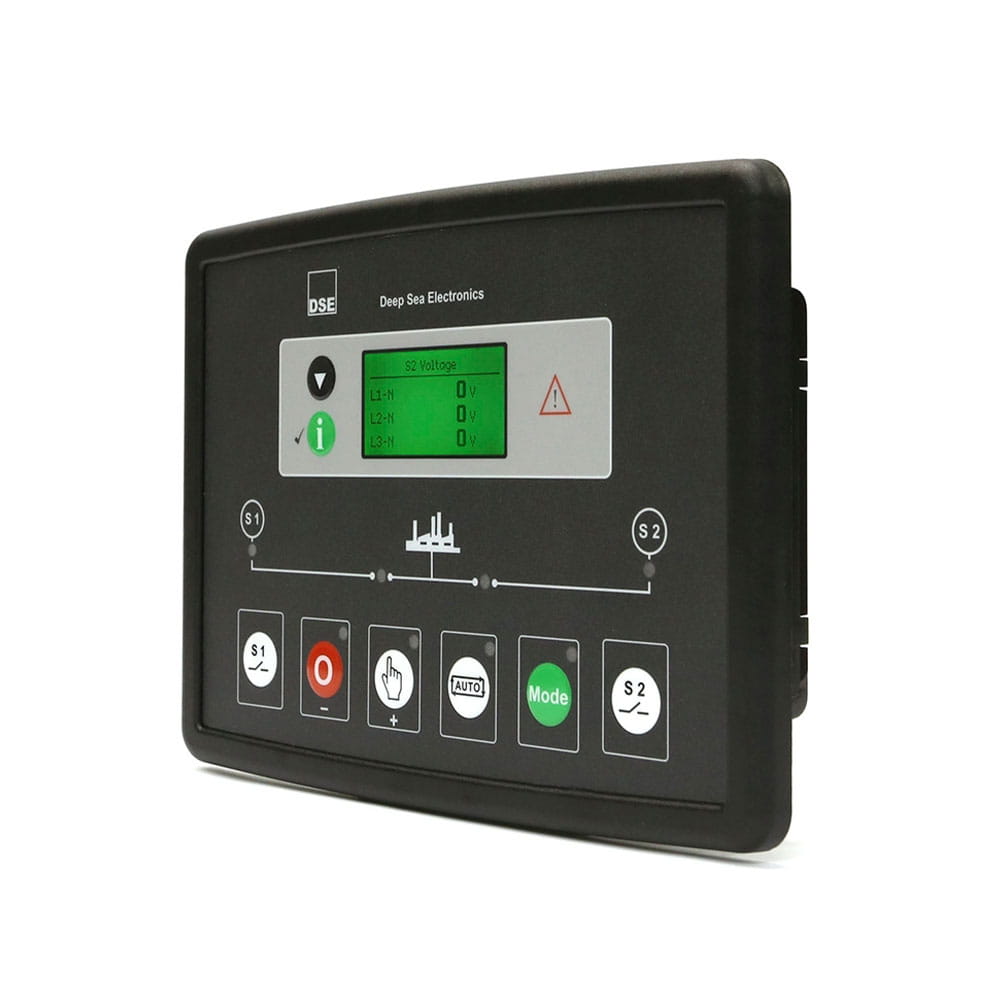

DSE334 | Auto Transfer Switch Control Module
- Automatic switch over between supplies.
- Configurable inputs/outputs (10/5).
- Source 1/source 2 control.
- Compatible with DSE160 power supply.
- DSE Configuration Suite PC Software.
PRODUCT VARIANTS
0334-01 – 334 Auto Transfer Switch Control Module – 12/24 Volt DC Supply
0334-01 – 334 Auto Transfer Switch Control Module – 12/24 Volt DC Supply
Call for Quote for international purchases!
$485.99
Compare
SKU: DSE0334
Categories: Auto Transfer Switch
The DSE334 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.
The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.
OVERALL SIZE
215 mm x 158 mm x 42 mm (8.5” x 6.2” x 1.6”)
PANEL CUTOUT SIZE
182 mm x 137 mm (7.2” x 5.4”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.52kg
Additional information
| Weight | 1.2 oz |
|---|---|
| Dimensions | 12 × 9 × 4 in |
| BRANDS | DSE |
