EIM630-465 12V
- Replace EIM 630-465 FG Wilson Parts Engine
- PART No. 630-465
- Voltage: 12V D.C.
- Model: EIM PLUS
- Type: 859767
Call for Quote for international purchases!
$65.99
Compare
SKU: EIM630-465
Categories: AVR | Generic

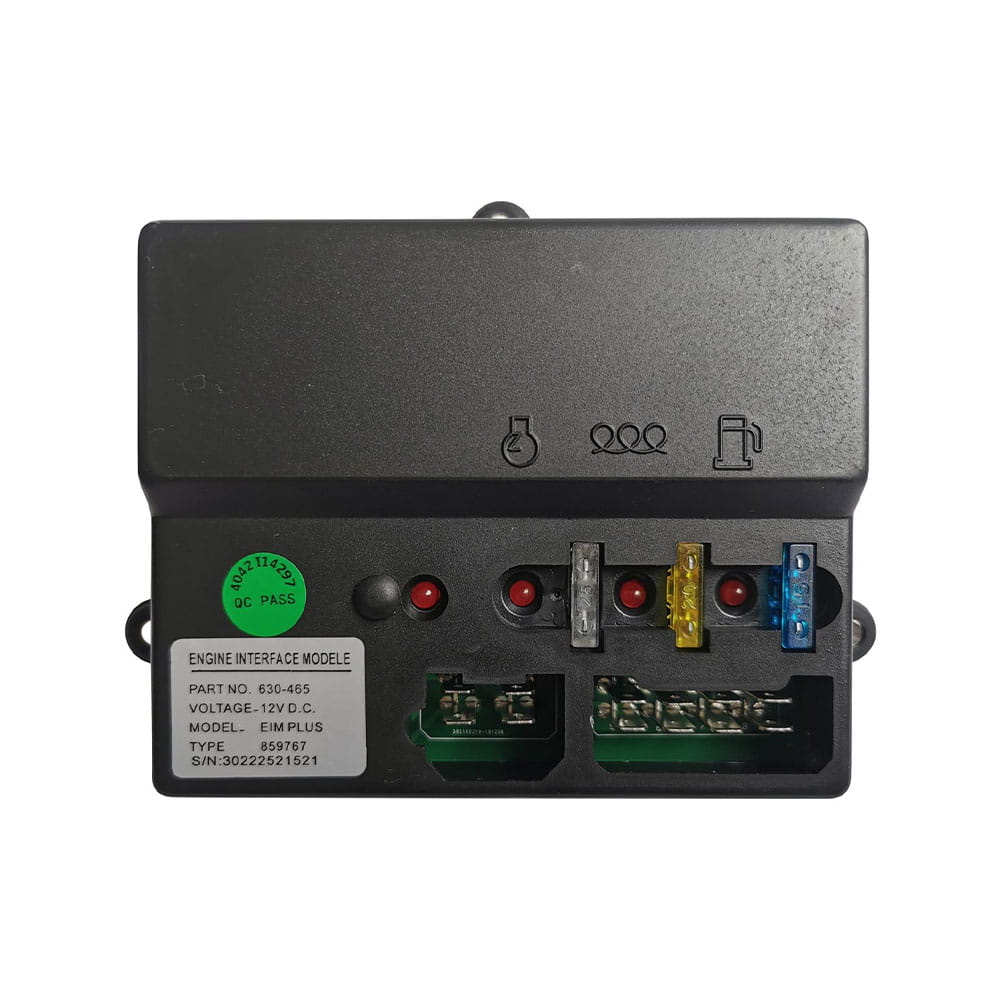

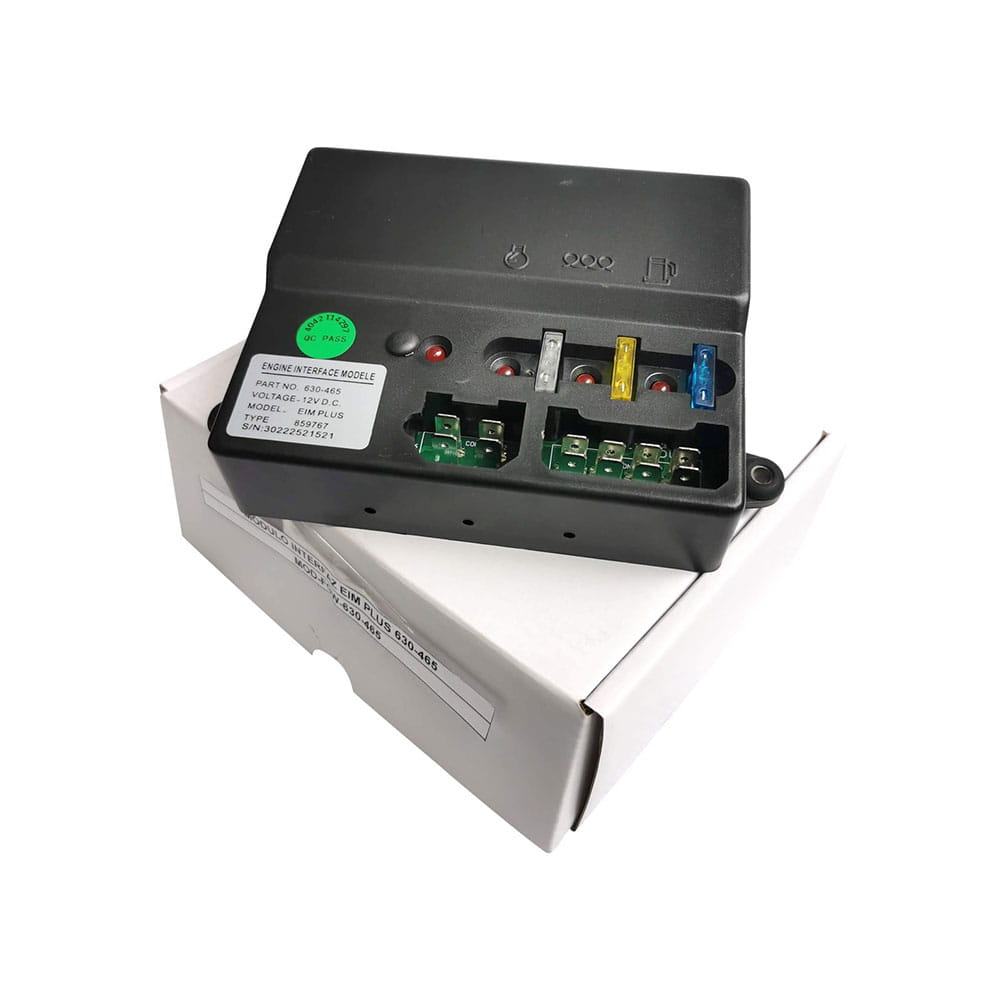

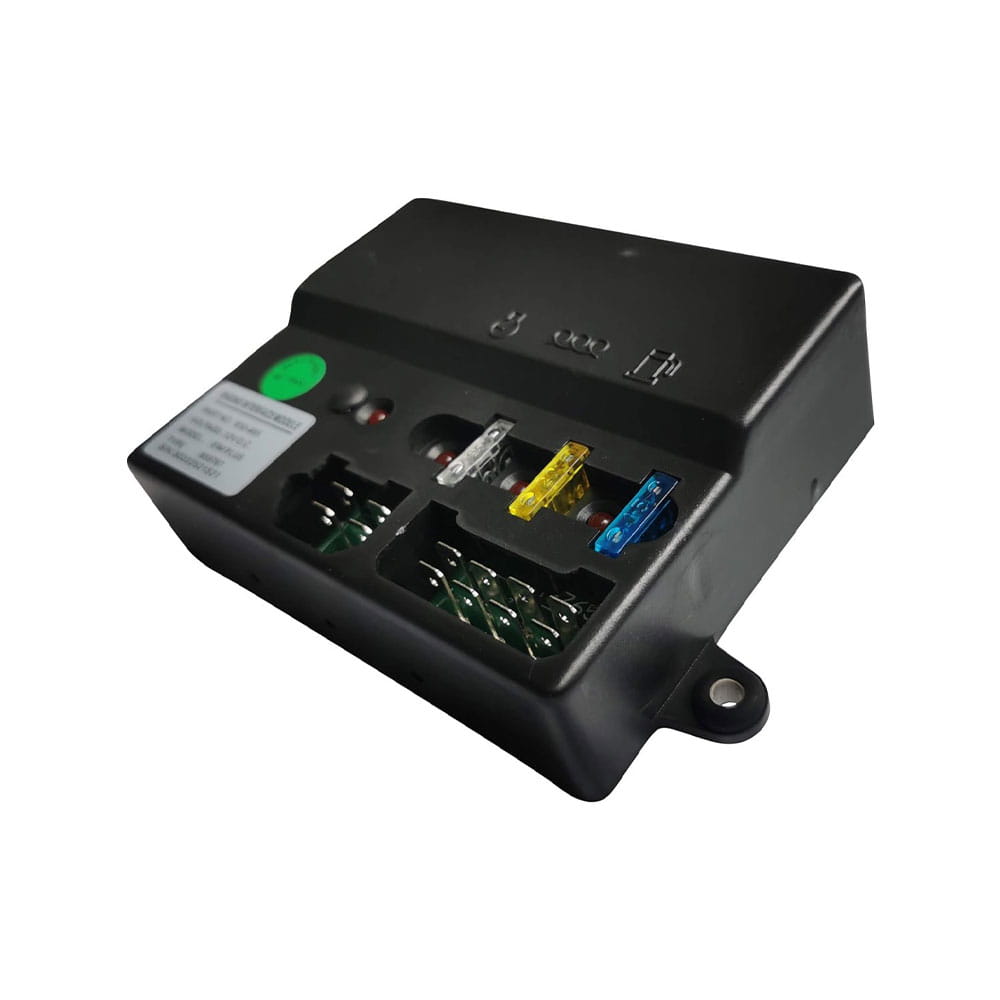

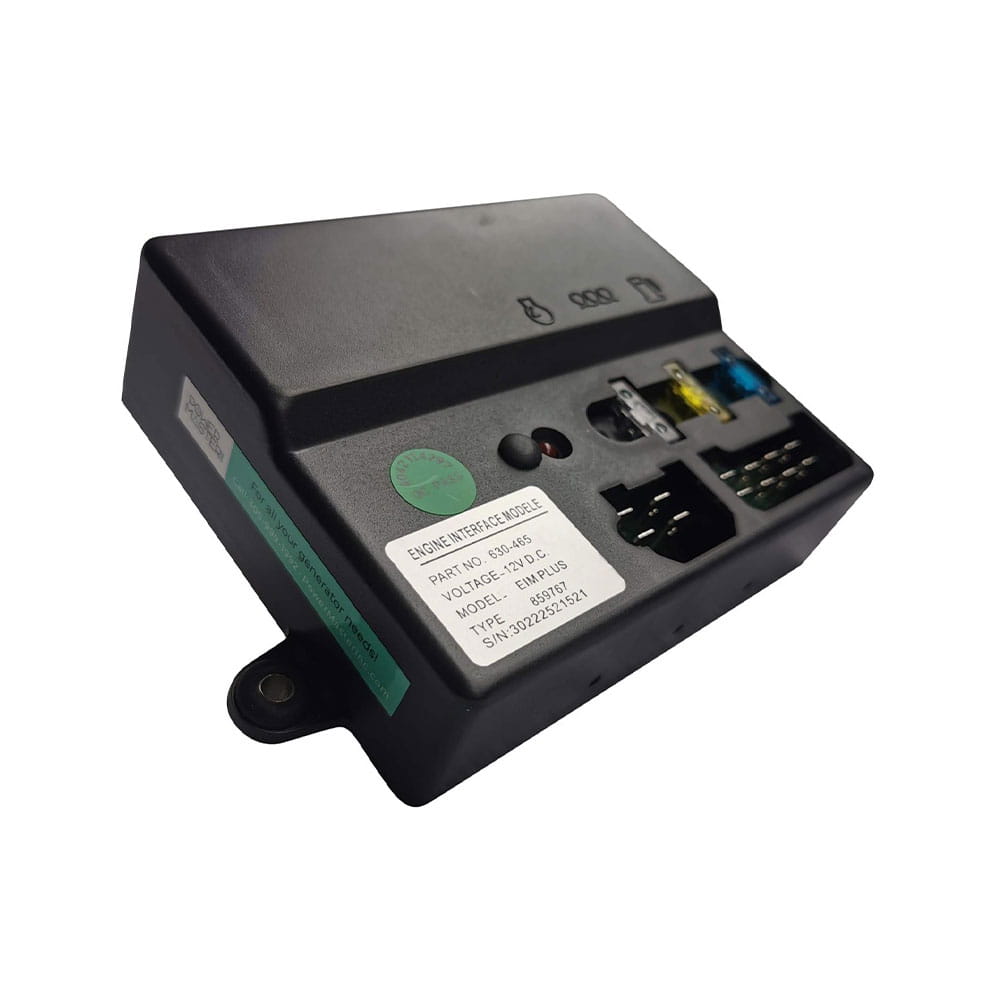

The EIM 630-465 is a 12V Engine Interface Module (EIM PLUS) used with Magnetic Pickup Units (MPU) in generator set applications. It is a generic replacement for the original 630-465, now superseded by the 630-088 model.
The module operates at 12V input and 24V interface voltage, providing the interface between the magnetic pickup sensor and the generator control system. It is used to detect engine speed via the MPU signal from the flywheel, enabling overspeed protection and speed sensing functions in the generator set control circuit.
Additional information
| Weight | 1.7 oz |
|---|---|
| Dimensions | 12 × 9 × 4 in |
