TC-V2 controller
- The TC-V2 digital control unit offers programming exibility to customize the ATS to dierent customer requirements
- Monitor normal source for full phase over and under voltages
- Monitor emergency source for single phase over and under voltages
- Normal & emergency source voltage and frequency parameter display
- TDEN, TDNE, TDEC and TDOFF real time countdown display
- Made in USA!
Call for Quote for international purchases!
$310.88

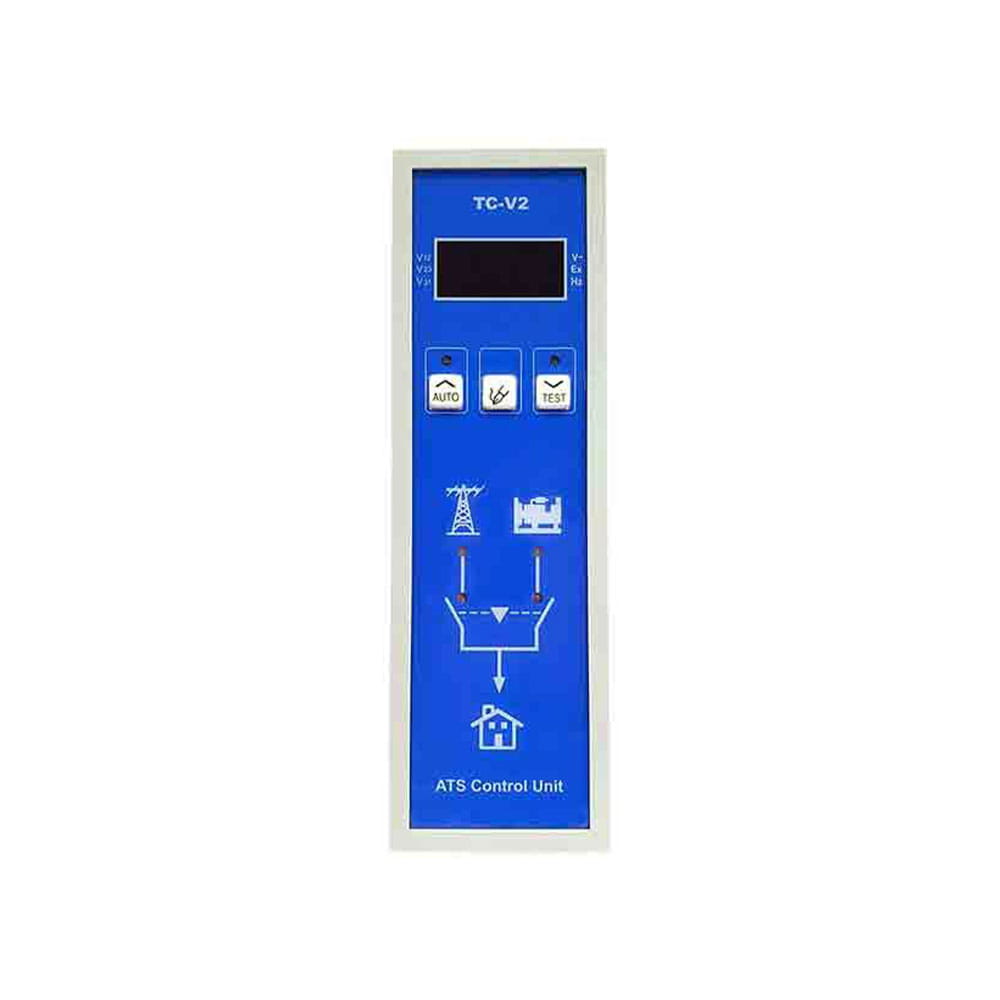

The TC-V2 is a Digital Control Unit designed for automatic transfer switch (ATS Class PC) applications. It monitors the emergency/standby source for single-phase over-voltage and under-voltage conditions, displaying status and fault alarms via LED indicators on the front panel.

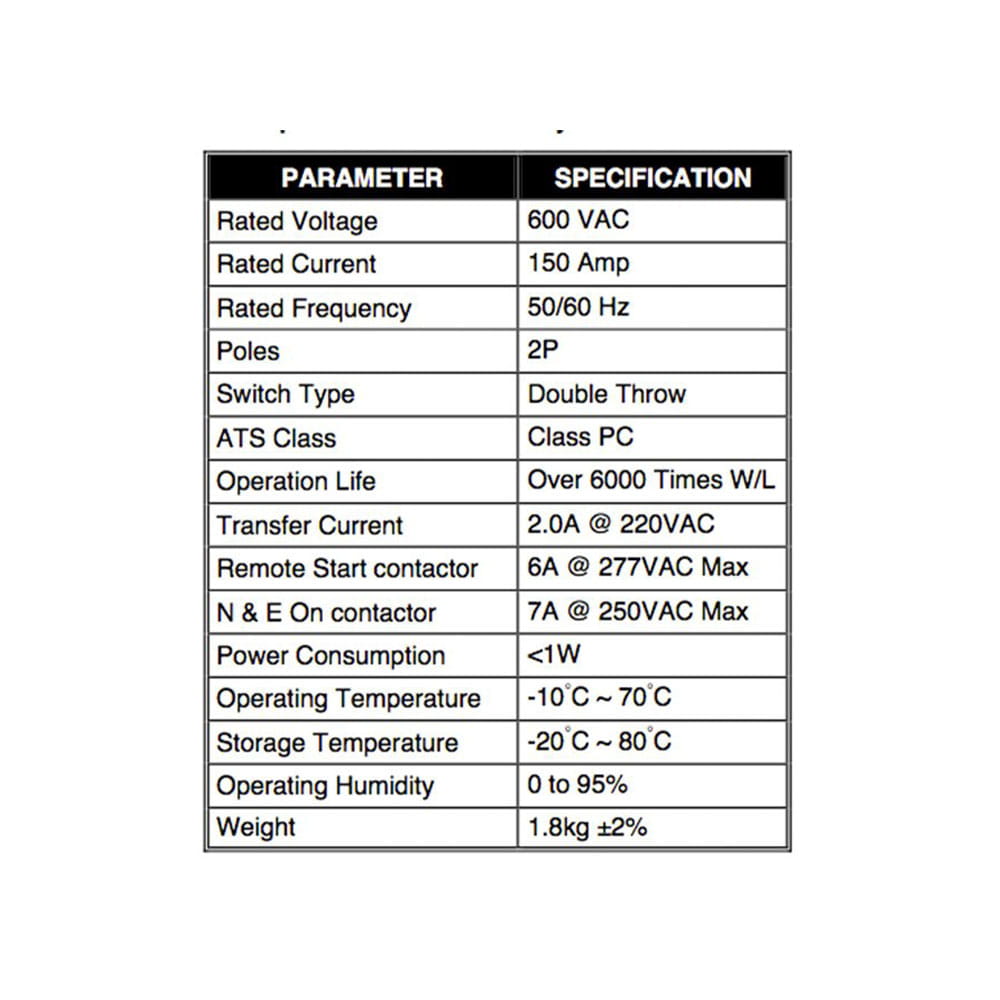

The TC-V2 features an adjustable over-voltage setting of 110–530V AC, with an over-voltage reset set at 10V AC below the OV setting. Normal and standby ON capacity is 7A at 250V AC maximum. Remote start capacity is 6A at 277V AC or 6A at 28V DC maximum. Power consumption is less than 1 watt.
The unit includes a built-in exerciser timer adjustable from 1 to 4 weeks, enabling scheduled automatic generator exercise runs without manual intervention.
Additional information
| BRANDS | Mcpherson Controls |
|---|
