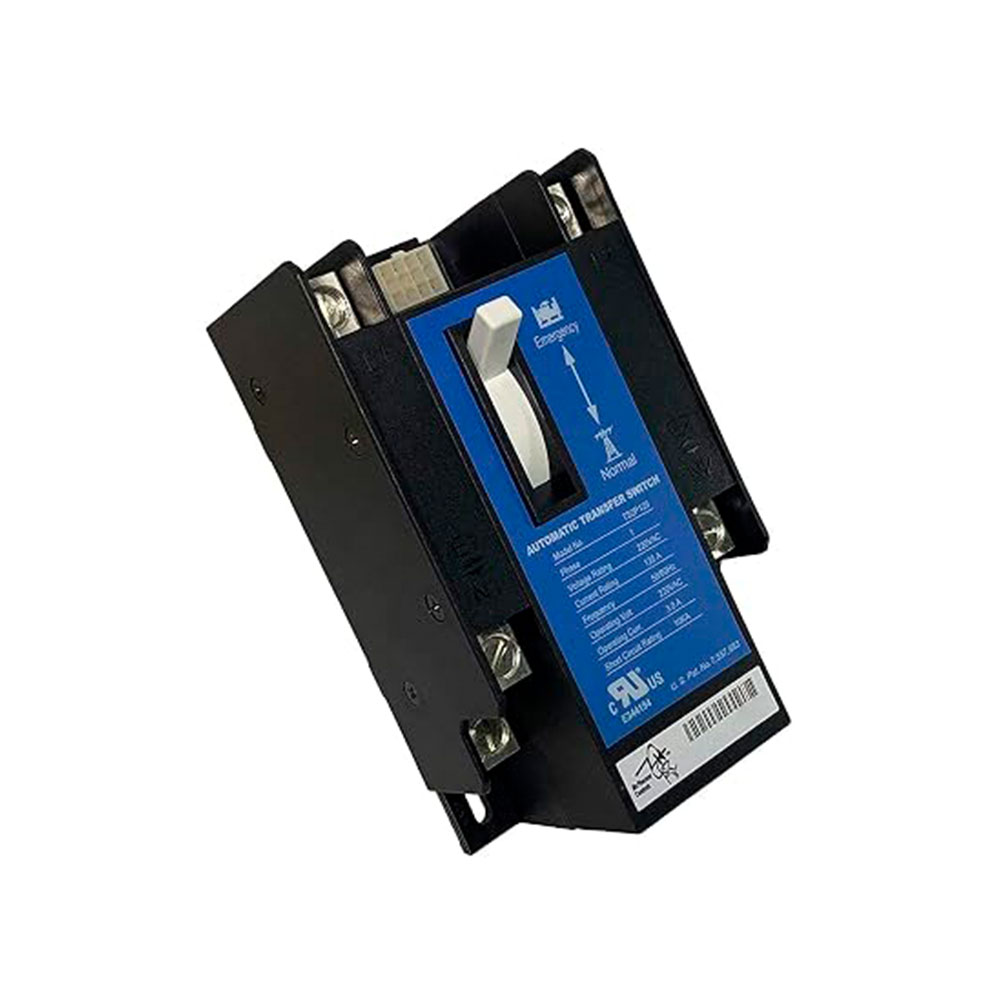

Transfer Switch 2 pole | 150 Amps | TCS2P150-22
- Manufactured using UL 94V-0 plastics.
- Electrically operated and mechanically held.
- Coil operating voltage: 110 / 220 Vac +/- 20%.
- Monitor Normal & Standby source OV and UV.
- Compact size, light weight and low power consumption.
- Adjustable time delay in OFF position when transferring.
- Designed for cell-phone repeaters, and many industrial and home ATS applications.
- Electrically or manually operated, mechanically held contacts – (Open Transition) with adjustable time in neutral.
$793.48
International orders welcome! Call or email for shipping estimate
The TCS2P150-22 is an Automatic Transfer Switch with integrated TC-V2 controller, rated at 2 poles and designed for automatic switching between utility and standby generator power. It is suitable for cell-phone repeater installations, residential, and light commercial ATS applications.
The unit monitors both the normal and standby sources for over-voltage (OV) and under-voltage (UV) conditions, automatically transferring the load when the primary source fails. Switch type is double-throw (ATS Class PC). Rated voltage is 600V AC at 50/60 Hz. Transfer current is 2.0A at 220V AC. Remote start contactor capacity is 6A at 277V AC maximum. Normal and emergency ON contactor capacity is 7A at 250V AC maximum. Power consumption is less than 1 watt. Operation life is over 6,000 switching cycles.
Operating temperature range is -10°C to +70°C. Operating humidity is 0 to 95%.
Additional information
| BRANDS | Mcpherson Controls |
|---|
