ALN025 | Actuator
- Low Cost, Compact Design
- Fast Response
- Precise Repeatability
- Provide a quick response time and can be used for many different applications
- Completely self-contained
- Integral return spring returns output shaft to zero fuel position if battery power is lost
- Operate in any position, are not gravity sensitive
- Compatible with GAC’s standard speed control units
- Maintenance Free
- Requires only a firm mounting surface, appropriate linkage to the fuel control and electrical connection to the speed control unit
Call for Quote for international purchases!
$419.99
Compare
SKU: ALN025
Categories: Universal

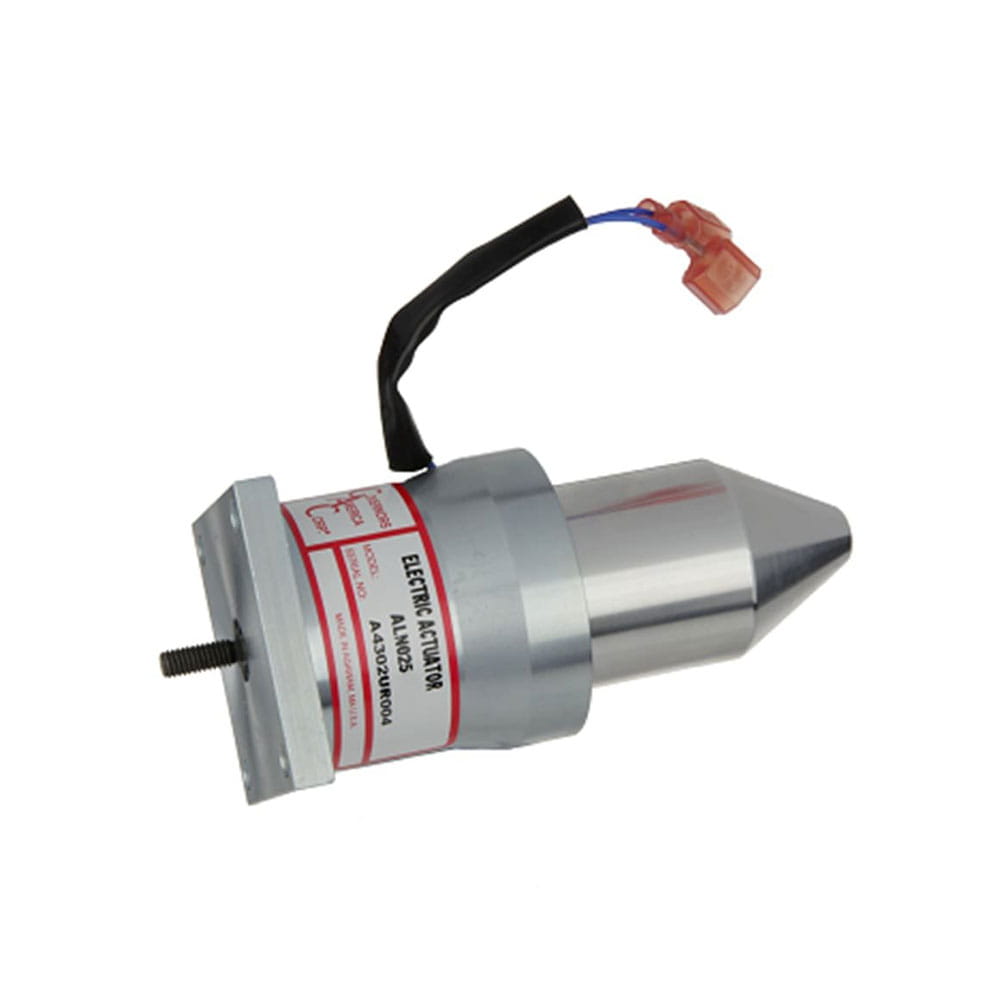

GAC ALN025 Actuator
The GAC ALN025 Actuator is a compact, cost-effective solution engineered to deliver precise speed control and reliable performance across a wide range of engine applications. Its rugged, self-contained design makes it an ideal choice for systems requiring fast response and exact repeatability, with virtually no maintenance required.
12V DC | 24V DC • 6.5 lbf [3.0 kgf] • 0.25 lbf·ft [0.34 J] Work • Male Push-On Terminals
- 22 mm stroke, < 35 ms response
- Designed with high-quality anti-friction bearings
- Cost-effective design
- Replaces competitive models
Additional information
| BRANDS | GAC |
|---|---|
| Volts GAC | 12V, 24V |
