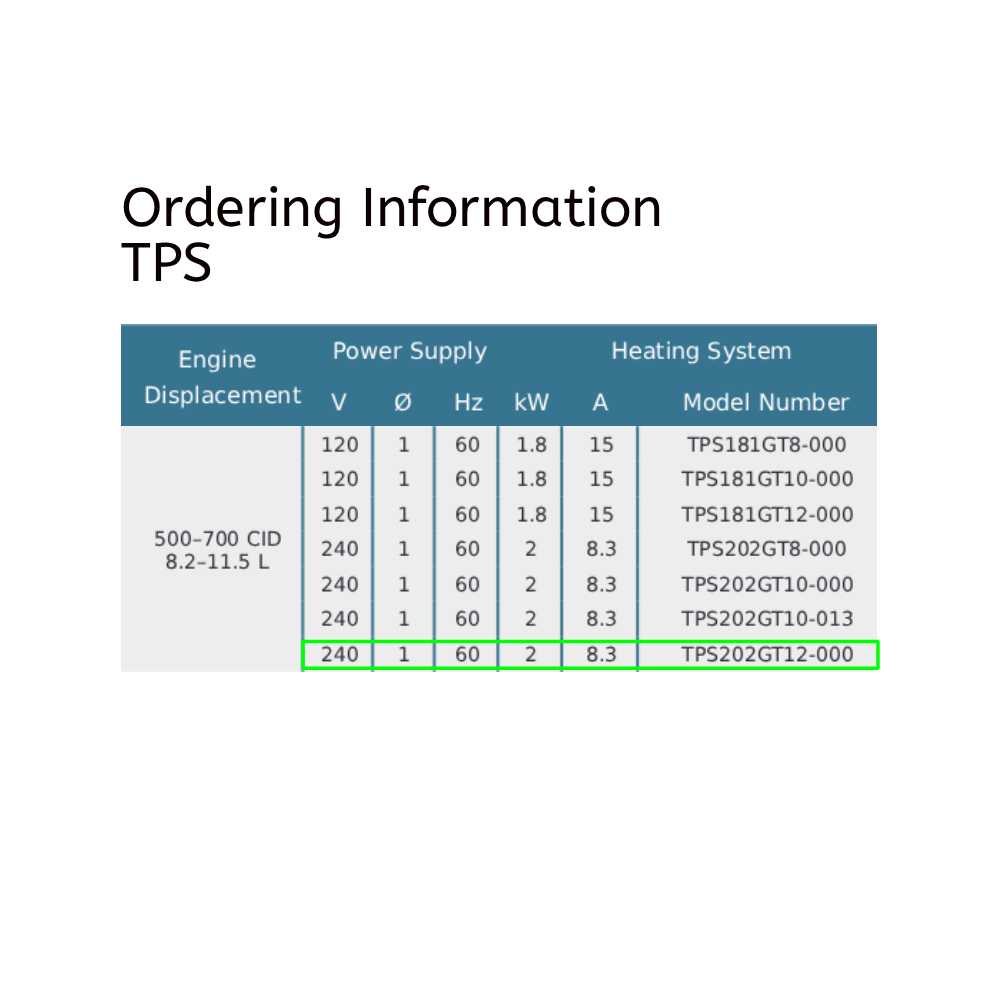

TPS202GT12-000 | Engine Heater

HOTSTART TPS engine heaters provide even heat distribution resulting in reduced engine wear, quick start-ups and reduced emissions. The compact design is ideal for locations that require minimal mounting space.

Specs: Heating Element: Incoloy 800 Enclosure: IP41 Resists corrosion Fluid Capacity: 0.11 gal (0.42 L) Maximum Pressure: 90 psi (620 kPa) Inlet/Outlet Plumbing: 0.625” (15.9 mm) Tank Material: Polyphenylensulfid PPS L-C/US listed CE compliant. Power cord length on all models – 48” (1219mm).

• Pre-Heat: Diesel and Gas engines Used in: Marine Heating Systems, Railroad operations, Heavy equipment, Trucks and Bus, Emergency generators, Oil and Gas and Industrial applications.
• Engine Heater Includes: Original HOTSTART TPS heater | Mounting hardware | installation instructions.
• Heating Fluid: Engine Coolant, Water, other – No pump needed (thermosiphon principle) | Cut the hose to the required length based on your engine size | 4 foot power cord | 5/8″ hose nipples.
• Engine Displacement: 500 – 700CID (8.2 – 11.5L)
• Volts: 240v – kW: 2 – AMPS: 8.3 – 60Hz
• Temperature Range: ON: 120°F (49°C) – OFF 140°F (60°C) Remote thread-in fixed temperature thermostat | comes with Nema 5-20 rated plug (20A receptacle or adaptor required)
