DSE2152 | Analogue Output Expansion Module
- DIN rail & chassis mount.
- Power on/link lost LED
- 1.2km (0.75 Mile) working range.
- Connect maximum of 4 x DSE2152’s to a single host controller.
- Max of 24 0-10 V or 4-20 mA outputs.
PRODUCT VARIANTS
2152-01 – 2152 Analogue Output Expansion Module
2152-01 – 2152 Analogue Output Expansion Module
Call for Quote for international purchases!
$337.14
Compare
SKU: 2152-01
Categories: Expansion Modules

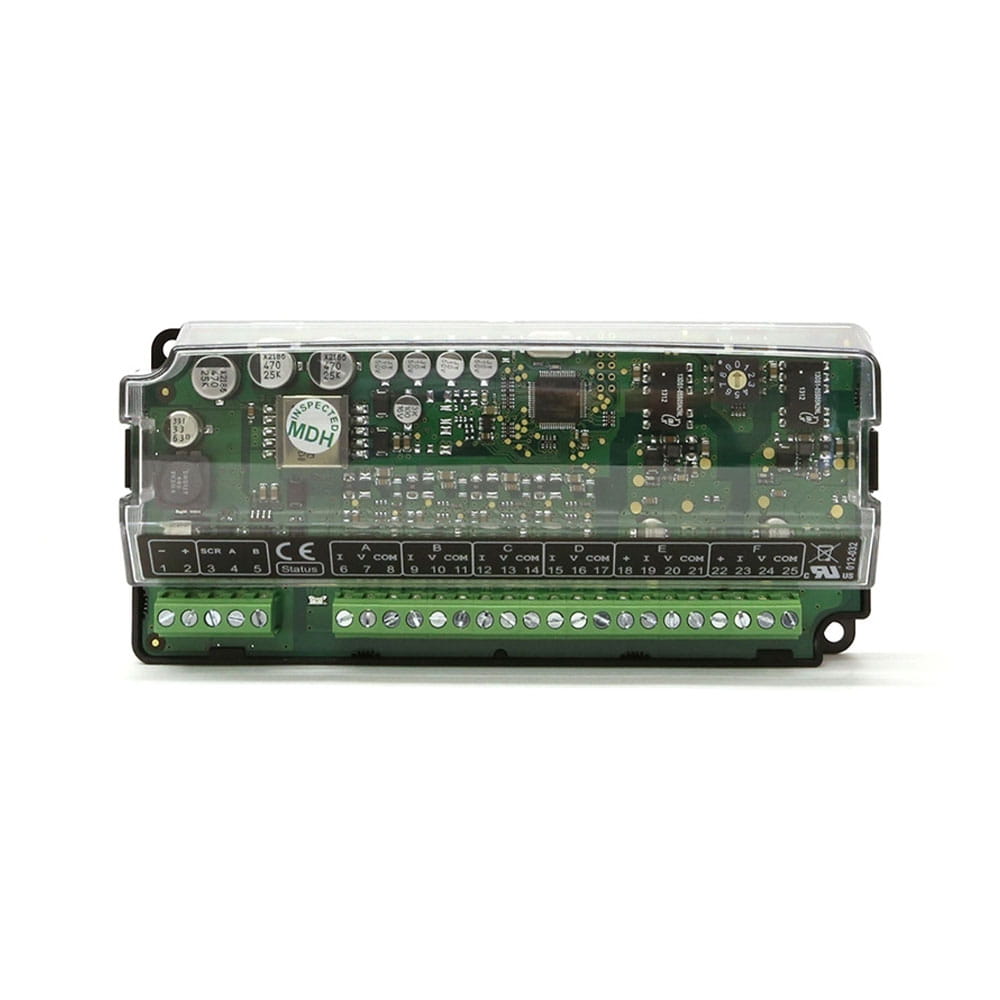

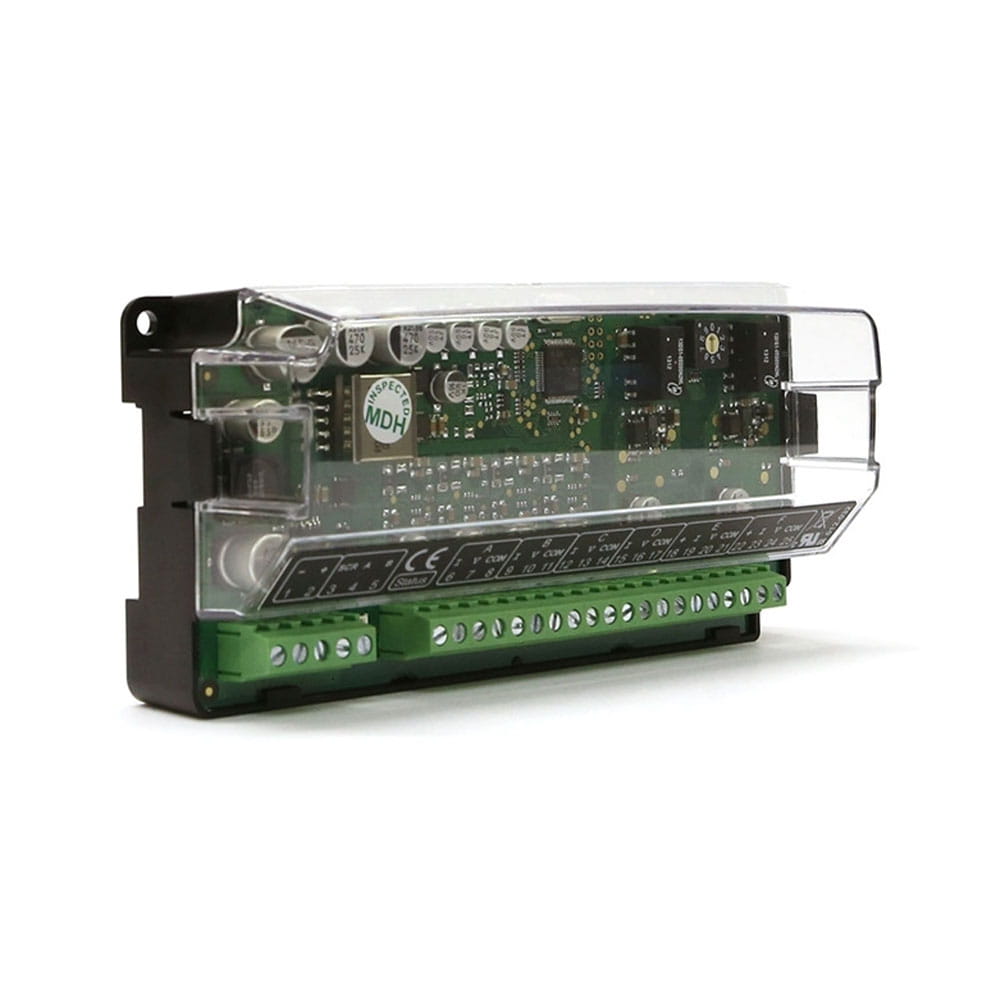

The DSE2152 is an analogue output expansion module providing 6 additional configurable outputs to the control system. Up to 4 x DSE2152 modules can be linked together to provide up to 24 additional output options.
Designed to give greater output flexibility for meeting complex industry generator control specifications.
The 6 outputs can be configured as 0-10 V or 4-20mA. All configurations are controlled within the host control module.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.24kg
Additional information
| BRANDS | DSE |
|---|
