DSEM640 | Programmable Controller (68 I/O)
- Controller specifically designed for mobile applications.
- Powerful 32 bit processor with 220 MHz clock speed.
- 32 configurable inputs with digital and analogue capability.
- 4 independent CAN interfaces, J1939, CAN open and RAW CAN.
- Ethernet interface for communications.
- Flexible user programming via CODESYS 3.5.
Call for Quote for international purchases!
$2,985.94
Compare
SKU: M640-01
Categories: Vehicle & Off-Highway Machinery (M-Series)

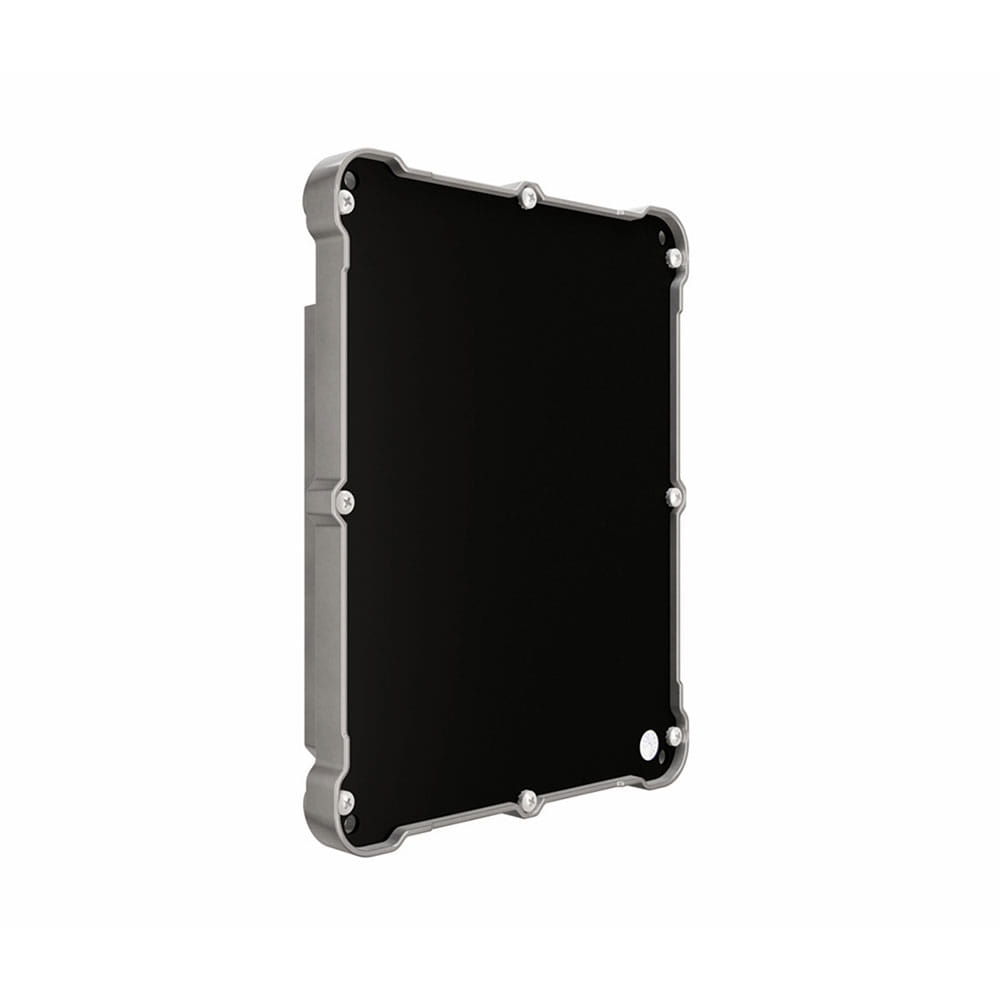

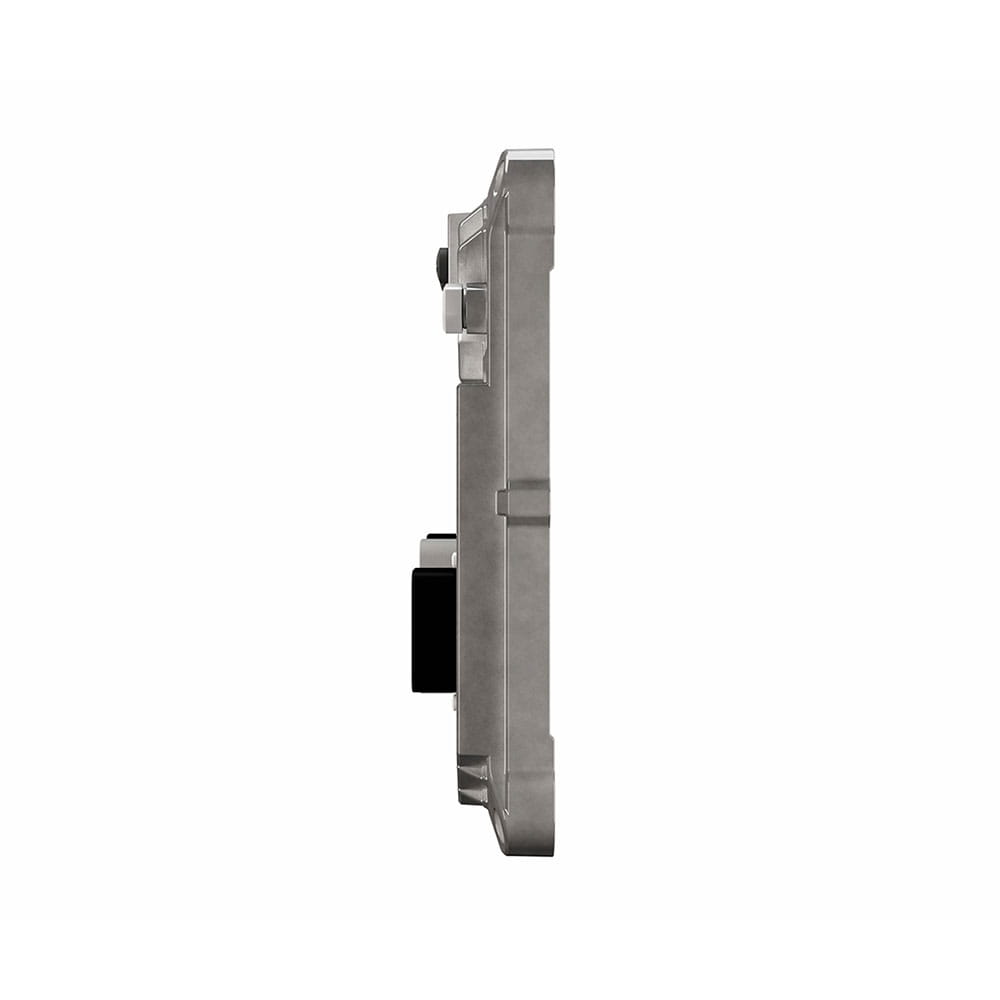

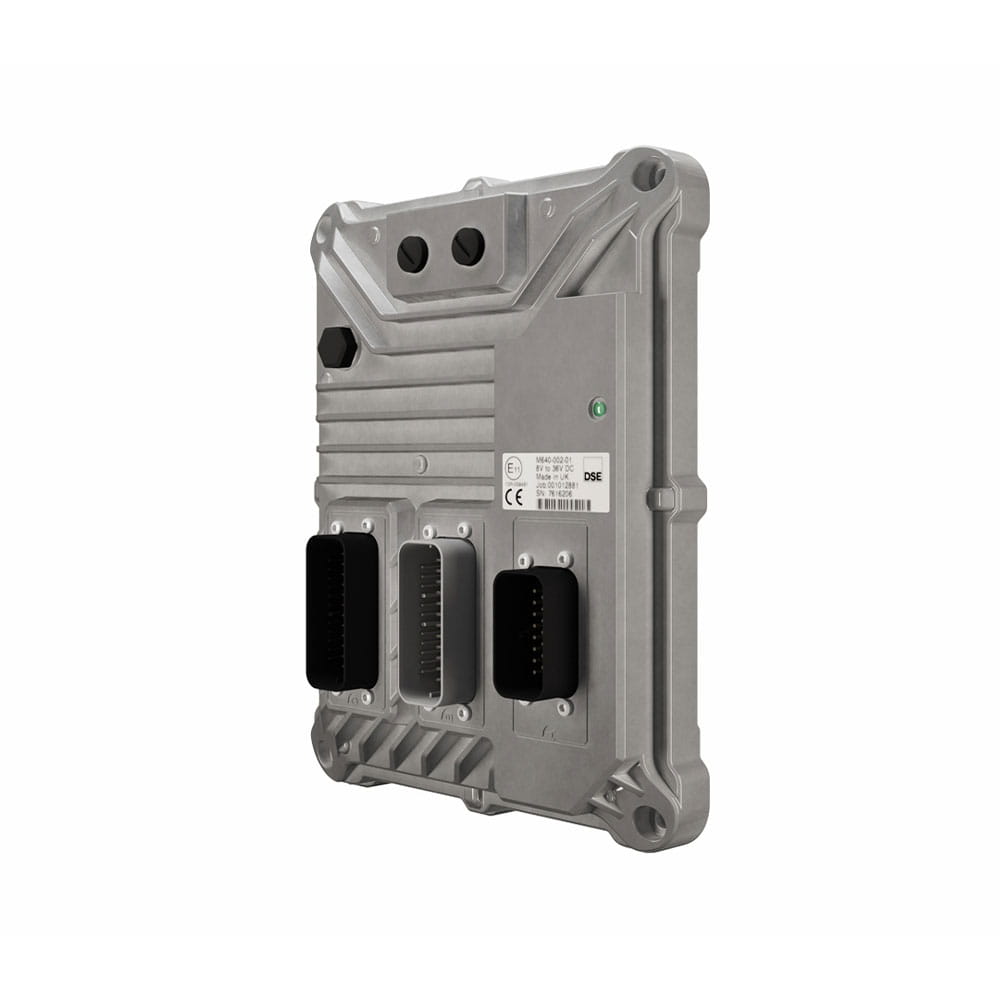

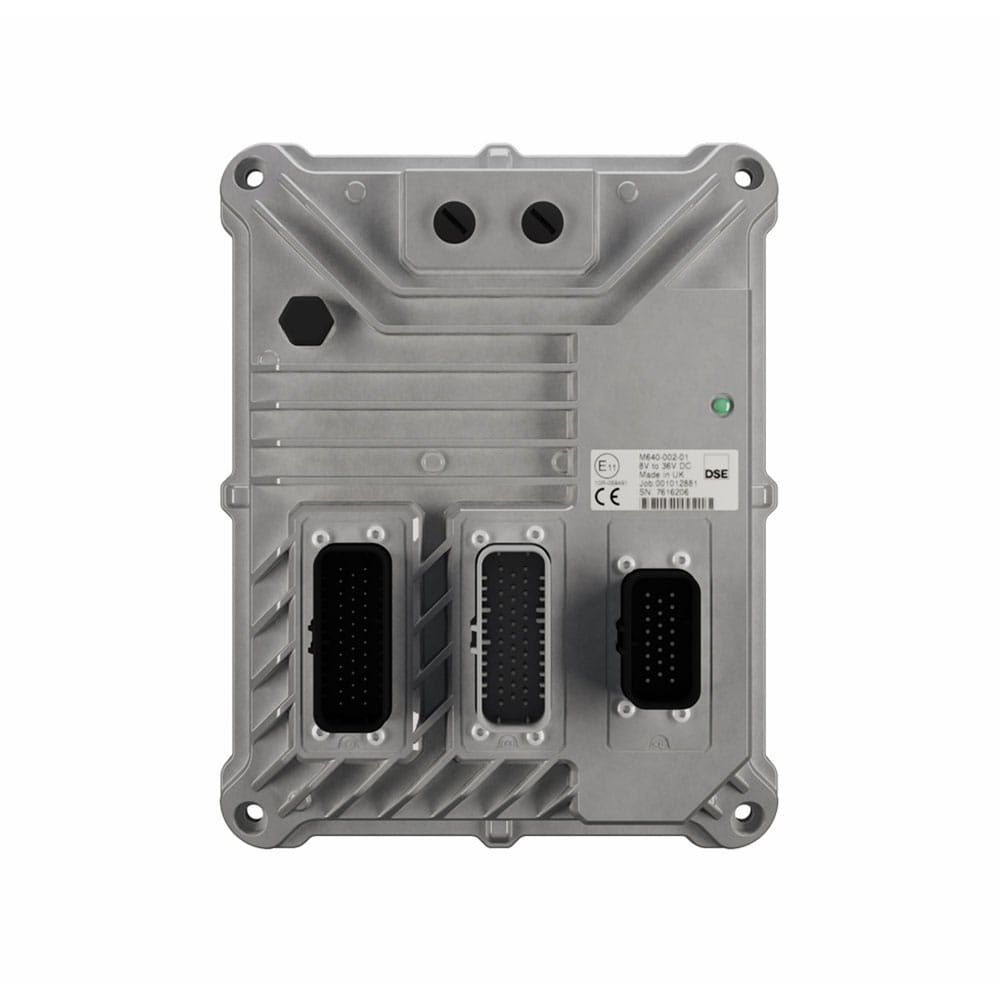

The DSE M640 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalise pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN and configurable I/O.
Inside the unit is a powerful 32 bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open and Raw CAN. Flexible user programming is provided via CODESYS 3.5.

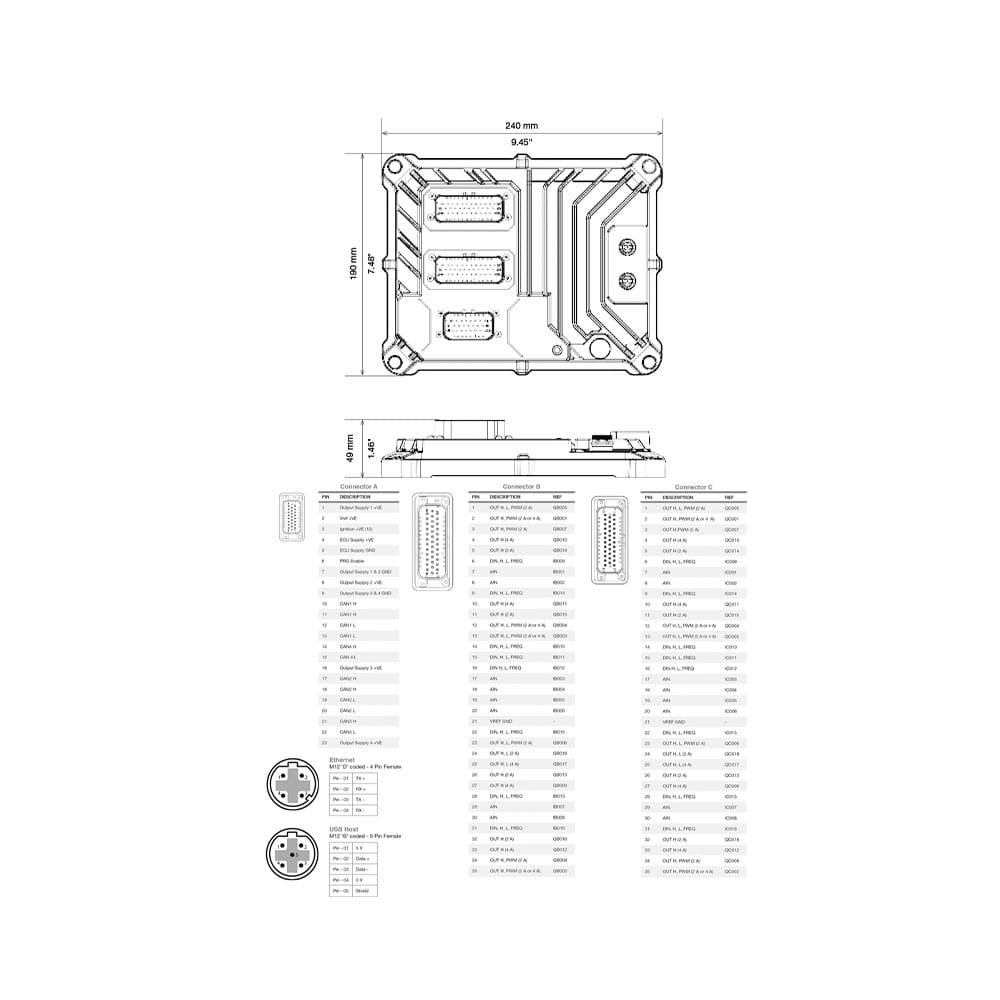

OVERALL SIZE
190 mm x 240 mm x 49 mm (W x H x D)
7.48" x 9.45" x 1.46" (W x H x D)
WEIGHT
1.5 kg
Additional information
| BRANDS | DSE |
|---|
