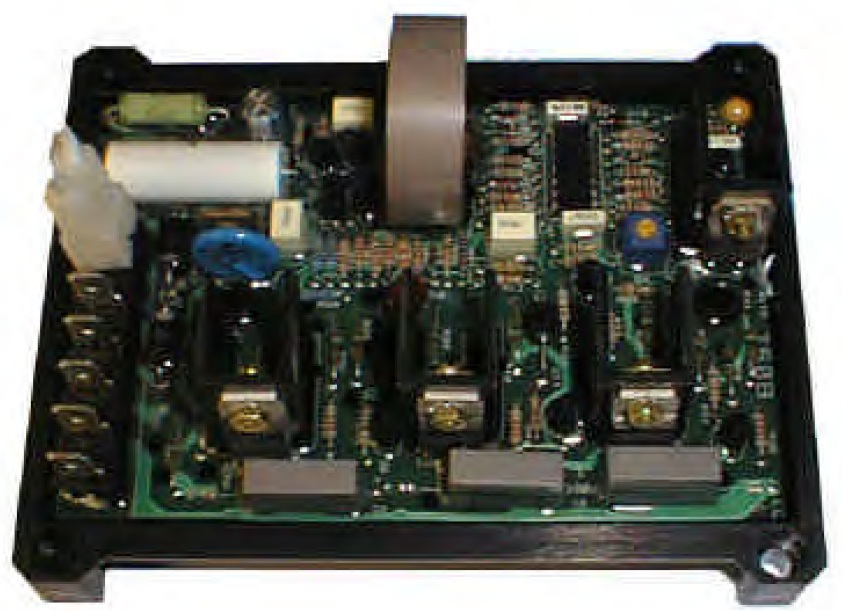

Mecc Alte ECO 2 Ecologizer
Automatically idles the engine when there is no load, and returns to full speed the moment a load is applied. Saves fuel and cuts noise.
- Fits: Mecc Alte AP, AR1, MR1, MR2 alternators, 50/60 Hz (not ECO38–46)
- Auto idle: drops to about 60% speed at no load
- Delay: adjustable from 5 to 60 seconds
- Stable output: about 60 Vac per winding at idle
- 12V version: overvoltage protected; current probe and jumper included
$349.00
International orders welcome! Call or email for shipping estimate
Mecc Alte ECO 2 Ecologizer Idle Control Board for AP, AR1, MR1, MR2 Brushless Alternators, Generator Auto Idle and Fuel Saver, 50/60 Hz
The Mecc Alte ECO 2 Ecologizer is a load-sensing idle controller for generator sets fitted with Mecc Alte AP, AR1, MR1 or MR2 brushless alternators. It watches the load current and slows the engine to about 60% of rated speed when nothing is connected, which reduces fuel use, noise and exhaust emissions. When a load of more than 100 mA is switched on, the board brings the engine back to rated speed immediately. An adjustable delay of 5 to 60 seconds, set on the board or with a remote potentiometer, keeps the engine at speed between short bursts of tool use.
To keep enough voltage at idle to power the board and the load, the ECO 2 connects an auxiliary capacitor in parallel with the alternator’s main capacitor. This holds about 60 Vac per output winding. If the output rises above 145 Vac per winding (290 Vac in series), overvoltage protection lights a red LED and puts the alternator in a safe condition. To reset, remove the supply for a few seconds.
A complete system needs three parts: this ecologizer board, an auxiliary capacitor sized for your alternator, and a 24 Vdc throttle solenoid on the engine. The solenoid and capacitor are not included. Works on 50 Hz and 60 Hz alternators. Wiring diagrams for one- and two-winding versions are in the Mecc Alte technical data sheet.
| Field | Value |
| Brand | Mecc Alte |
| Model / Series | ECO 2 (ERP lists "ECO2/1" ) |
| Manufacturer PN | 4505005182 |
| Your internal SKU | 4505005182 |
| Product type | Ecologizer / genset idle-down fuel-saving control board (accessory, not an AVR) |
| Compatible alternators | Mecc Alte AP, AR1, MR1, MR2 (capacitor-regulated, brushless, single-phase) |
| Board supply voltage | 55–130 Vac (taken directly from alternator output) |
| Idle speed at no load | ~60% of nominal engine speed |
| Load-sensing threshold | 100 mA (current probe, accepts cable up to 150 mm²) |
| Delay before idle-down | Adjustable 5–60 seconds (onboard trimmer or 500K remote potentiometer) |
| Overvoltage protection | Trips if output exceeds 145Vac/winding (290Vac in series); red LED; safe-mode reset by power-cycling the board |
| Capacitor-paralleling relay rating | 2 Arms nominal, 1800V peak |
| Magnetic coil output (to throttle actuator) | 24 Vdc rectified (average), 0.5 Adc max |
| Auxiliary capacitor | Value depends on the specific alternator model — no fixed spec; confirm per genset |
| Working frequency | 50 Hz or 60 Hz (works with either) |
| Country of origin | Italy (Mecc Alte SpA) |
| Included accessories | Ecologizer board only. NOT included: magnetic coil/electromagnet (external, engine-side), auxiliary capacitor |
Additional information
| Weight | 1 oz |
|---|---|
| Dimensions | 8 × 6 × 3 in |
